उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Brand: | FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW | Function: | Garbage compactor, waste removal |
|---|---|---|---|
| सामग्री: | कार्बन स्टील Q235B | मोटाई: | साइड 3 मिमी और निचला 4 मिमी |
| Tank volume: | 5cbm/5000Liters/3tons | पहिये का आधार: | 3308 मिमी |
| घोड़े की शक्ति: | 108hp | हाइड्रोलिक पंप: | चीनी प्रसिद्ध ब्रांड |
| नियंत्रण प्रणाली: | सीमेंस ब्रांड संचालन प्रणाली। | गारंटी: | 1 वर्ष |
| Control: | Both manual and electric control |
Dongfeng 5m3/5,000liters Self Compressed Waste Removal Vehicles
Product Descriptions
Why Choose Us? Delivering Unmatched Value for Your Fleet
Direct Factory Pricing: Skip the middlemen and access unbeatable value. As the OEM manufacturer, we provide high-quality, fully customized vehicles at highly competitive prices, ensuring maximum return on your investment.
Durable Chinese Engineering, Built to Global Standards: Our trucks combine the rugged, reliable Dongfeng chassis with internationally recognized components like the ISUZU diesel engine, delivering a vehicle that performs consistently under demanding conditions.
Custom Solutions for Your Operations: Every business has unique transport needs. From cargo box dimensions to branding and specialized equipment, we design trucks tailored to your exact requirements, ensuring efficiency, safety, and compliance.
Key Features That Make Our Medical Waste Truck Stand Out:
Safe and Efficient Loading with Hydraulic Tailgate
The factory-installed 1-ton CADOR hydraulic tailboard streamlines loading and unloading, reducing manual labor and workplace injuries. Faster turnaround times mean lower labor costs and higher operational efficiency.

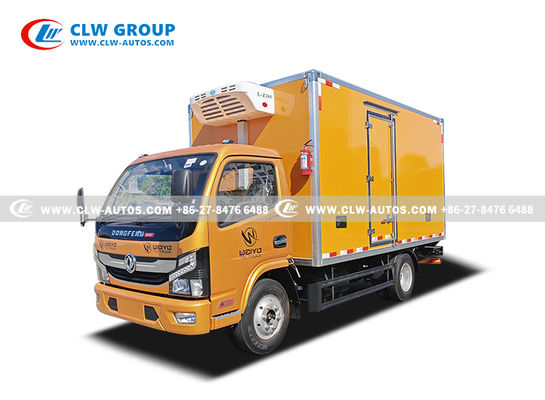

Advanced Refrigeration and Insulation for Cargo Safety
Protect sensitive medical waste with the Hanxue L-Z380 refrigeration unit combined with 80mm XPS insulation, maintaining stable temperatures down to -5°C. This ensures cargo integrity, prevents bacterial growth, and meets strict cold-chain regulations.
Hygienic, Contamination-Free Interior
The interior is lined with 304 stainless steel, designed for easy cleaning and resistance to corrosion. Equipped with dual UV germicidal lamps and an electric spray disinfection system, it actively neutralizes pathogens during transit, safeguarding public health.
Reliable Powertrain for Maximum Performance
Powered by the ISUZU JE493ZLQ3A diesel engine (116HP), known for durability and fuel efficiency, this truck keeps your fleet moving reliably, reducing downtime and maintenance costs.
Product Specifications
| Technical Parameters | ||
| Dimensions | Overall dimension(L x W x H) | 5995*2180*2950mm |
| Wheel base | 3308mm | |
| Weight | GVW | 4495kg |
| Curb weight | 3550kg | |
| Technical Parameters for Truck Chassis | ||
| Cabin | l Dongfeng Captain | |
| l Right hand driving | ||
| l 2~3 seats | ||
| l Air conditioned | ||
| Engine | Brand&Model | ISUZU, JE493ZLQ3A |
| Fuel Type | Diesel | |
| Emission | Euro 3 | |
| Horse Power | 116HP | |
| Number of cylinders | 4 cylinders | |
| Displacement | 2.771L | |
| Max.power | 75(KW) /3600rpm | |
| Max.torque | 240(N.m) /2100(rpm) | |
| System | Water cooled,turbocharged,after cooled | |
| Gearbox | Type | Manual |
| Brand&Model | WLY 5 forward and 1 reverse speed | |
| Axle loading | Front axle | 2,200kg |
| Rear axle | 3,500kg | |
| Tire | Specification | 7.0R16 |
| Quantity | 7 pieces including 1 spare tire | |
| Battery | Voltage (V) | 24 |
| Battery capacity (A.h) | 80Ah x 1 | |
| Fuel capacity | 76liters | |
| Technical Parameters for Cargo box | ||
| Box dimension(L x W x H) | 4000x2000x2000mm | |
| Box material | l External fiberglass panel | |
| l Middle 80mm thickness XPS insulation board | ||
| l Internal 304 stainless steel | ||
| Refrigerator Unit | l China famous brand Hanxue L-Z380 | |
| l Temperature down to minus 5℃ | ||
| Disinfection system | l Ultraviolet germicidal lamp on ceiling | |
| l Electric spray disinfection device on ceiling | ||
| Waste collection system | Sewage outlet linked to a stainless steel waste liquid collection box, equipped with a ball valve at the base to prevent leakage and facilitate discharge. | |
| Hydraulic tailboard | 1 ton hydraulic lifting tailboard, China famous brand CADOR. | |
| Sign | Infectious material warning signs are printed on the cargo box. | |
Detail photos
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
