उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ट्रक ब्रांड: | डोंगफेंग, शैकमैन, सिनोट्रुक होवो, सीएएमसी, एफएडब्ल्यू, इसुजु वैक्यूम सीवेज सक्शन ट्रक | Driving model: | LHD Vacuum Sewage Suction Truck |
|---|---|---|---|
| इंजन: | डीज़ल इंजन | सामग्री: | Q235 कार्बन स्टील |
| Tanker size: | 20000Liters 20Tonnes 20T 20m3 44000 gallons | Loading capacity: | 20tonnes 20t |
| Thickness of tanker: | 5mm Fecal Suction Truck | Vacuum pump: | Chinese pump,BP,Jurop,Moro Kaiser |
| सक्शन गहराई: | 8 मीटर | Suction distance: | DN50 or DN100 2" or 4” |
| प्रकार: | सीवर/कीचड़/सेप्टिक सक्शन वैक्यूम सीवेज सक्शन ट्रक | लोगो और रंग: | स्वनिर्धारित |
| प्रमुखता देना: | Landscaping Vacuum Sewage Truck,Sinotruk Vacuum Sewage Truck 20cbm |
||
Application range:
It is used for cleaning urban sewers, sediments in pipelines.
It is used for cleaning industrial drainage pipelines, walls, etc.
Product descriptions:
The sewage tank is made of high-quality steel plate, with 6mm thickness.
The middle of the tank is installed wave-proof board.
The vacuum tube is equipped with stainless steel filter.
It install DN100 shock-resistant pressure gauge in the position of the sewage suction four-way valve.
The tank body is equipped with lifting and self-unloading hydraulic system.
The rear door install locking device
There are platforms on both sides of the tank, which is convenient for placing tools and suction pipes.
Main details:
Overall dimension:9800×2500×3800mm
Cabin: one and half row with three passengers ,it is optional for LHD&RHD
Engine: WEICHAI diesel engine with 371hp
Structure: oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Hydraulic lifting sewage tank,rear cover can open.
Product descriptions:
| Cabin | Driving type 6x4, one and half row seat | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9800*2500*3800 |
| Wheel base (mm) | 4600+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Approach/Departure angle(°) | 19/24 | |
| Weight in KGS | Tare Weight | 13580 |
| payload | 20000 | |
| Front axles loading capacity(kg) | 9000 | |
| Rear axles loading capacity(kg) | 16000 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Brand | WD615.47 |
| Horse Power(HP) | 371 | |
| Emission standard | Euro2 | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12.00R20 radial tire, 10 tires with one spare | |
| Sewage Tank | ||
| Tank volume | 20cbm | |
| Tank material | 6mm carbon steel Q235 | |
| Tank shape | square round shape | |
| Vacuum Pump | Optional Chinese Vacuum Pump or Italy Vacuum Pump | |
| Sewage suction pipe | 8M | |
| Main Performance | Suction time ≤ 5min, effective suction range ≥ 8m |
|
| Other equipment | Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve | |
| Painting | Customized painting color and logo as required. | |

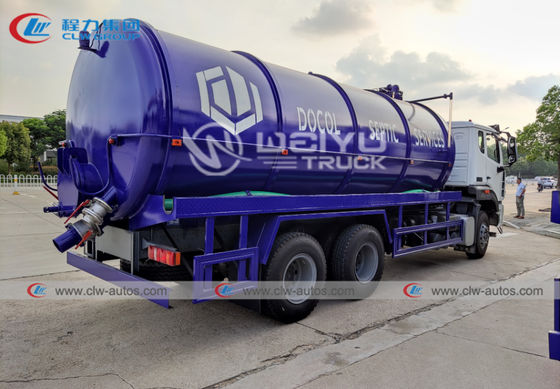

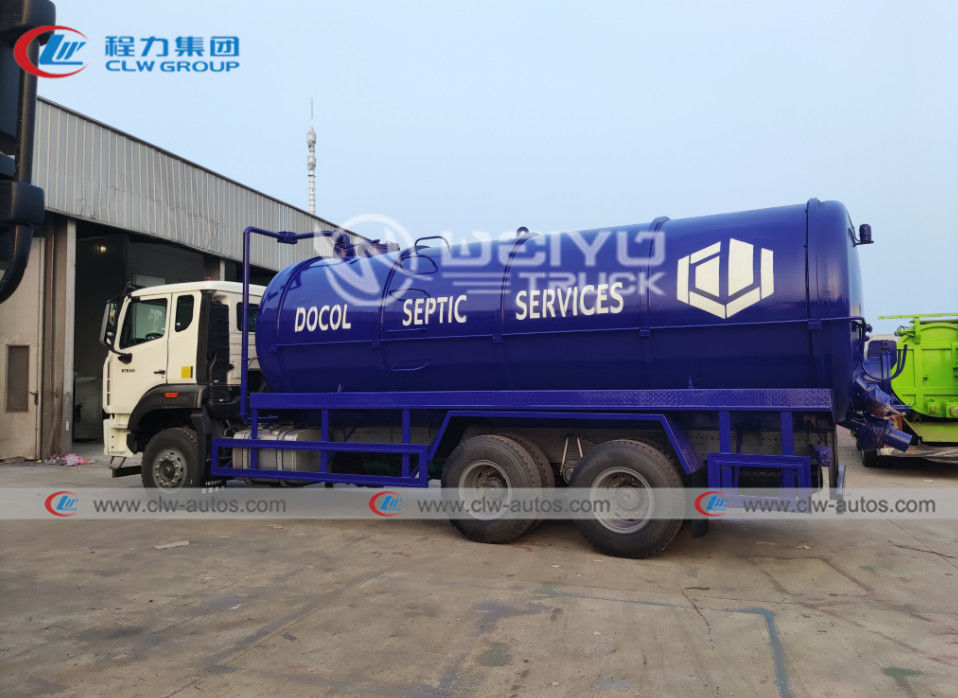

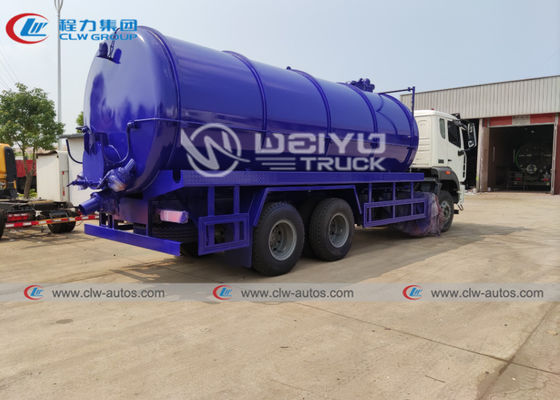

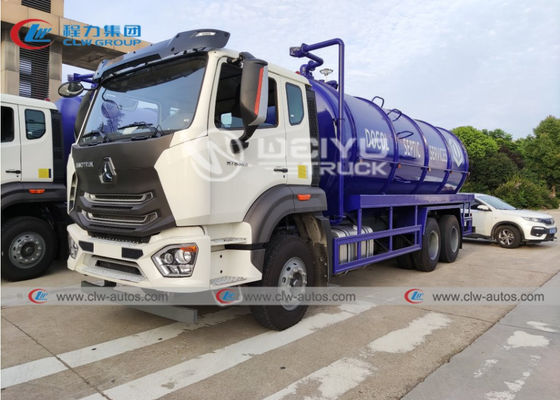

Detailed photo
Parts diagrams
Our advantages:
