उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| चेसिस ब्रांड: | डोंगफेंग, फोटोन, सिनोट्रुक HOWO, इसुज़ु, आदि। | ड्राइव मॉडल: | राइट हैंड ड्राइव और लेफ्ट हैंड ड्राइव |
|---|---|---|---|
| इंजन -शक्ति: | 180 एचपी | व्हीलबेस: | 4500 मिमी |
| थका देना: | एक स्पेयर के साथ 6 टायर | टैंक क्षमता: | 10cbm 10m3 10घन मीटर 10000लीटर 10t 12t |
| टैंक सामग्री: | 6 मिमी कार्बन स्टील | वैक्यूम पंप: | चीनी ब्रांड, इटली ब्रांड या अन्य आयातित ब्रांड |
| सीवेज सक्शन पाइप: | 8 | सक्शन का समय: | <5 मिनट |
| प्रभावी सक्शन: | > 8 मी | लोगो और पैटर्न: | ग्राहक के अनुरोध के रूप में |
| गारंटी: | 1 वर्ष | ||
| प्रमुखता देना: | 12cbm Sewage Suction Truck,10cbm Sewage Suction Truck,Dongfeng 4X2 Sewage Sucking Truck |
||
Product Description
1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

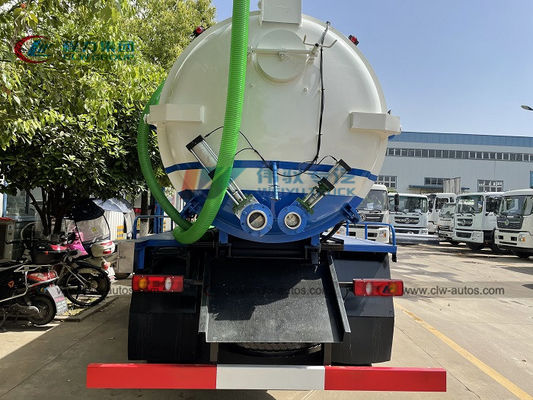

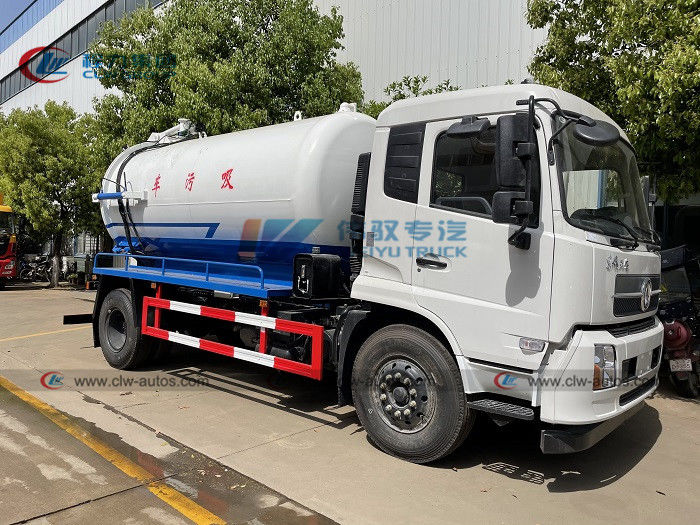

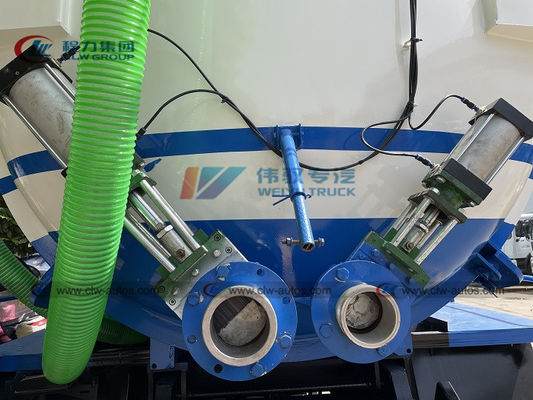

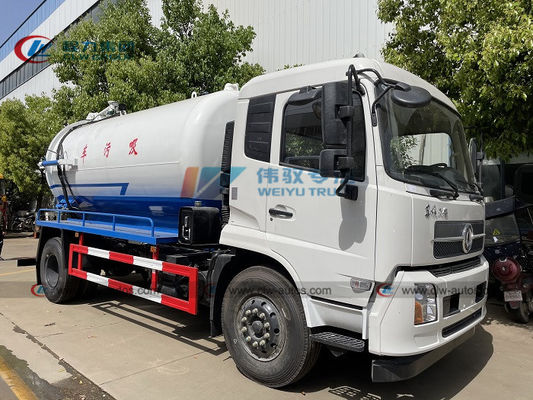

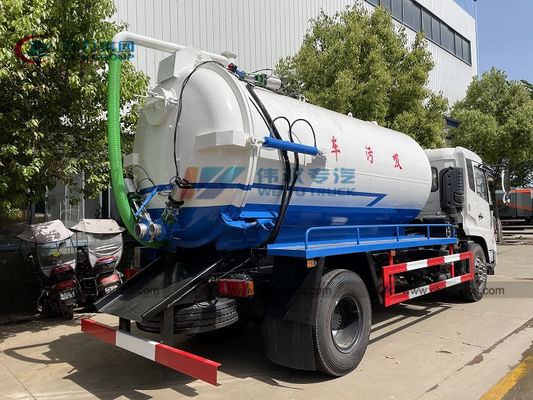

Reference Photos
Product Specification
| Cabin | Driving type 4x2, single row | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7500*2300*2850 |
| Wheel base (mm) | 4500 | |
| Wheel track (front/rear) (mm) | 1960/1860 | |
| Approach/Departure angle(°) | 28/32 | |
| Weight in KGS | Tare Weight | 5340 |
| payload | 6025 | |
| Front axles loading capacity | 2700 | |
| Rear axles loading capacity | 5000 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Brand | Cummins |
| Horse Power(HP) | 180HP | |
| Emission standard | Euro V | |
| Gearbox | 6 forwards & 1 reverse | |
| Steering | Left hand drive | |
| Tire | 9.00R20, 6 tires with one spare | |
| Sewage Tank | ||
| Tank volume | 11000Liters | |
| Tank material | 6mm carbon steel Q235 | |
| Tank size | 4900x1600mm | |
| Vacuum Pump | Chinese Vacuum Pump or Italy Vacuum Pump | |
| Sewage suction pipe | 8M | |
| Main Performance | Suction time ≤ 5min, effective suction range ≥ 8m | |
| Other equipment | Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve | |
| Painting | Customized painting color and logo as required. | |
Main Structure
Working Scene
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
