उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ट्रक ब्रांड: | डोंगफेंग, शैकमैन, सिनोट्रुक होवो, सीएएमसी, एफएडब्ल्यू, इसुजु वैक्यूम सीवेज सक्शन ट्रक | Driving model: | LHD Vacuum Sewage Suction Truck |
|---|---|---|---|
| इंजन: | डीज़ल इंजन | सामग्री: | Q235 कार्बन स्टील |
| Tanker size: | 5000Liters 5Tonnes 5T 5m3 3000 gallons | Loading capacity: | 5tonnes 5t |
| Thickness of tanker: | 5mm Fecal Suction Truck | Vacuum pump: | Chinese pump,BP,Jurop,Moro Kaiser |
| सक्शन गहराई: | 8 मीटर | Suction distance: | DN50 or DN100 2" or 4” |
| प्रकार: | सीवर/कीचड़/सेप्टिक सक्शन वैक्यूम सीवेज सक्शन ट्रक | लोगो और रंग: | स्वनिर्धारित |
| प्रमुखता देना: | Vacuum Pump Sewer Fecal Suction Truck,Sanitation Dongfeng Fecal Suction Truck,5000liters Vacuum Suction Truck |
||
Product specification:
Overall dimension:5995×2150×2350mm
Cabin: single row with two passengers ,it is optional for LHD&RHD
Engine: Cummins diesel engine with 125hp
Structure: oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Hydraulic lifting sewage tank,rear cover can open.
Usage: urban sewers, sediments in pipelines, industrial drainage pipelines, walls, etc.
Product descriptions:
The sewage tank is made of high-quality steel plate of WISCO, with a wall thickness of 5.
The middle of the tank is installed wave-proof board.
The vacuum tube is equipped with stainless steel filter.
It install DN100 shock-resistant pressure gauge in the position of the sewage suction four-way valve.
The tank body is equipped with lifting and self-unloading hydraulic system.
The rear door install locking device
There are platforms on both sides of the tank, which is convenient for placing tools and suction pipes.
|
Vehicle Main Dimensions |
Cab type |
single row cabin, power steering 2 passengers, left hand drive |
|
Overall dimension(L*W*H)(mm) |
5995×2150×2350mm |
|
|
Wheelbase (mm) |
3308 |
|
|
Axle number |
2 |
|
|
Drive type |
4*2 |
|
|
Steering type |
LHD |
|
|
Max. Drive Speed (km/h) |
90 |
|
|
Gross vehicle weight (kg) |
4495 |
|
|
Chassis parameter |
Chassis brand |
Dongfeng |
|
Transmission |
Manual,6 forward and 1 reverse |
|
|
Brakes |
air brake |
|
|
Tire |
7.50R16 |
|
|
Engine parameter |
Engine Brand |
Cummins |
|
Fuel type |
Diesel |
|
|
Horse Power(hp) |
125hp |
|
|
Emission Standard |
Euro2 |
|
|
Superstructure Parameter and main performance |
Tank volume(m3) |
5 |
|
Sewage tank material |
5 mm good quality carbon steel |
|
|
Pump |
Imported Italy high quality vacuum pump or chinese vacuum pump |
|
|
Standard configuration |
1. Hydraulic lifting sewage tank,rear cover can open. |
|
|
Main performance |
(1) Vertical suction ≥ 7m. |

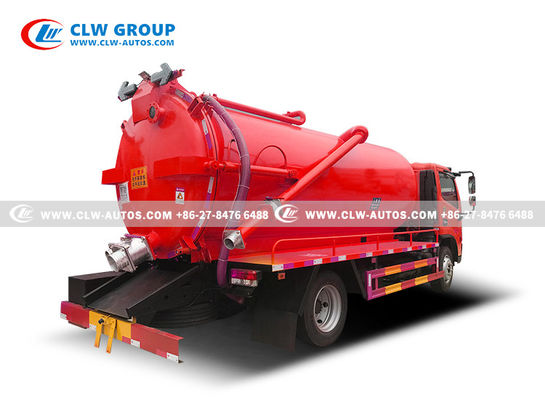

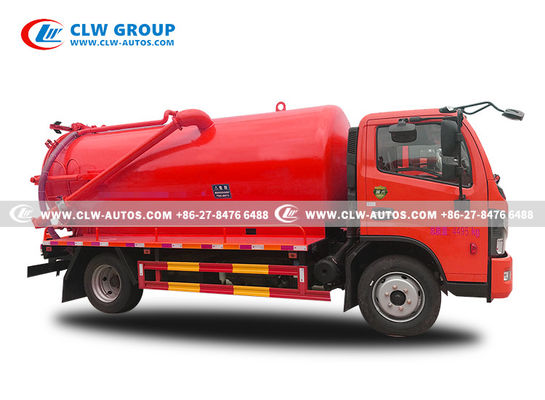

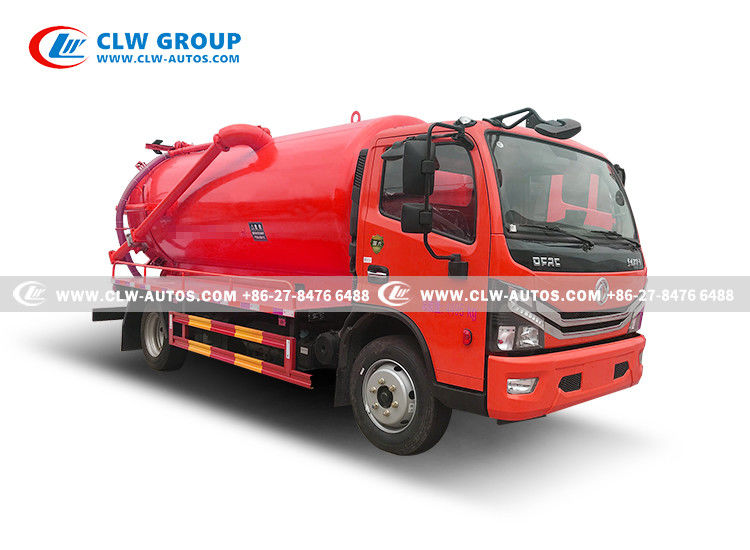

Detailed photos
Successful cases
Our advantages:
· Certificate: ASM, ISO, BV, SGS, CCC, GCC etc.
· 12 independents workshops.
· 1000 sets of equipment, 25 assemble lines.
· 300 senior engineers and technicians. About 8000 workers.
· 800kinds of LPG, trucks and semi-trailers.
· 20 years wholesale experience
· Turnover 250 million and Export 20million annually
· Turnover 2 billion trucks and semi-trailers annually.
· LPG/Truck Sold to 90 countries
· Cooperates with DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
