| Truck Chassis: | ISUZU,Dongfeng,Foton,Shacman,JAC,JMC,FAW,HOWO | टैंक सामग्री: | कार्बन स्टील q235a |
|---|---|---|---|
| टैंक की मात्रा: | 10CBM/10000लीटर | वैक्यूम पंप: | वैकल्पिक |
| व्हीलबेस: | 3950 मिमी | रंग और लोगो: | स्वनिर्धारित |
| Warranty: | One year for major parts | ऑपरेशन वीडियो: | हाँ |
| उपयोगकर्ता पुस्तिका: | हाँ | ||
| प्रमुखता देना: | Carbon Steel Vacuum Sewage Suction Truck,Q235 Carbon Steel Sewage Suction Truck,10000liters Vacuum Suction Truck |
||

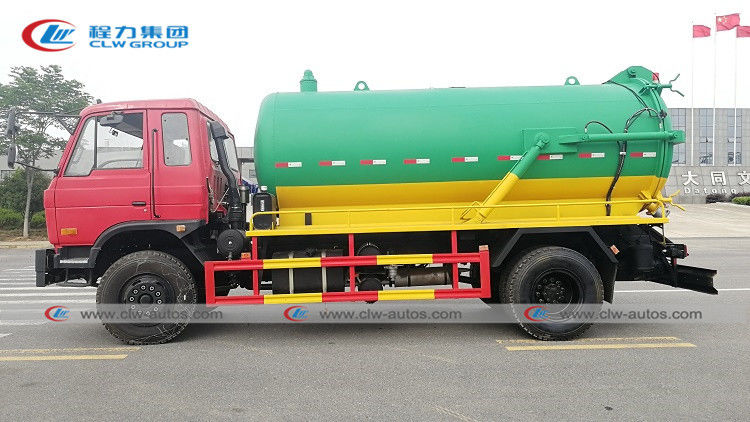

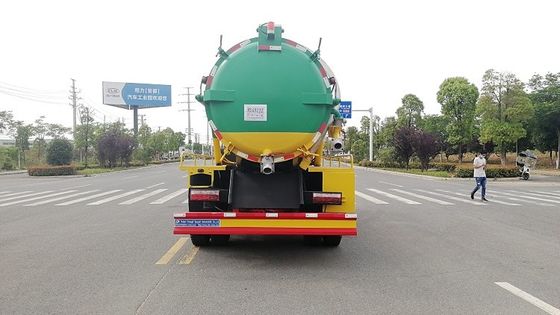

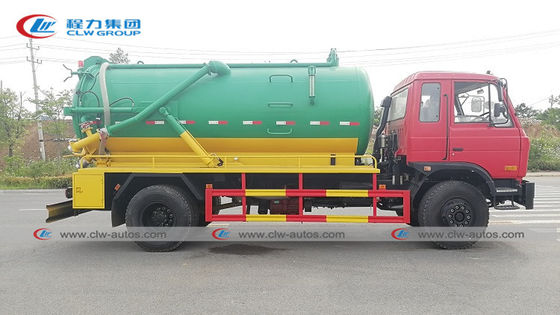

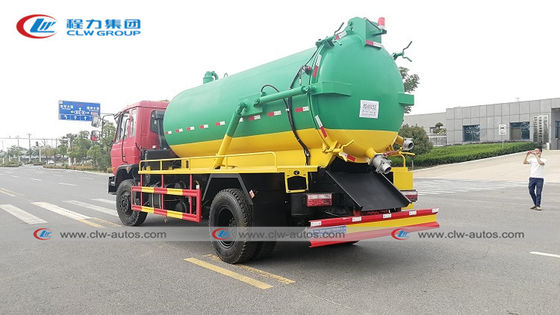

Q235 Carbon Steel 10cbm/10000liters Vacuum Sewage Suction truck
Product Description
| Vehicle Description | |
| Overall dimensions | 6975*2462*2690 mm |
| Curb Weight | 4470kg |
| Chassis brand | DONGFENG |
| Traction type | 4*2 |
| Tanker Description | ||
| Tanker | Capacity | 10000L |
| Material | 6mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |
| Pump | Type | Double vacuum pump |
| Flux | 68(L/S) | |
| Rating speed | 800~1000(r/min) | |
| Shaft power | 5(kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Manufacture | Hangzhou WEILONG Pump Co., Ltd. | |
| Pipe | Suction and discharge pipe | |
| Special function | Suction time ≤ 5mins, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 |
|
| Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
| Optional configuration | Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank |
|
| Chassis Description | ||
| Chassis model | DONGFENG | |
| Cab | Single row cab, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, Optional air conditioning system, electric windows, central lock. | |
| Traction type | LHD or RHD | |
| Drive type | 4*2 | |
| Wheelbase | 3950mm | |
| Tire specification | 9.00-20 Nylon tire | |
| Tire quantity | 6+1 units | |
| Engine | Emission level | Euro 2 |
| Displacement/output | 5880ml | |
| Horse power | 160hp | |
| Gear box | Model | China famous brand |
| Number of gears | 5 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake | |
| Suspension | Front | 1205 |
| Rear | 1820 | |
Our factory
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
