उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Brand: | HOWO,Dongfeng,JAC,FOTON,Shacman,FAW | ईंधन: | डीज़ल इंजन |
|---|---|---|---|
| व्हीलबेस: | 4500 मिमी | टैंक सामग्री: | कार्बन स्टील q235a |
| Thickness: | 4mm for side and end plate | Waste tank size: | 12,000liters,12cbm, 12m3 |
| Vacuum pump: | China famous brand/Italy BP brand | स्राव होना: | टैंक बॉडी हाइड्रोलिक लिफ्टिंग |
| सीवेज सक्शन पाइप: | 8 मीटर | सक्शन का समय: | 5 मिनट से कम |
| Warranty: | one year for major parts | रंग: | अनुकूलित लोगो |
| Painting: | Three Layer painting | उत्पादन काल: | 40 दिन |
| ऑपरेशन वीडियो: | हाँ | उपयोगकर्ता पुस्तिका: | हाँ |
| तकनीकी मार्गदर्शन: | हाँ | ||
| प्रमुखता देना: | 12 000Liter Septic tank truck,HOWO Septic tank truck,Sanitation Service Septic tank truck |
||

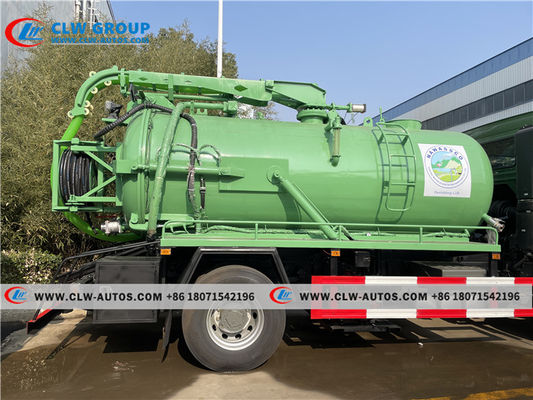

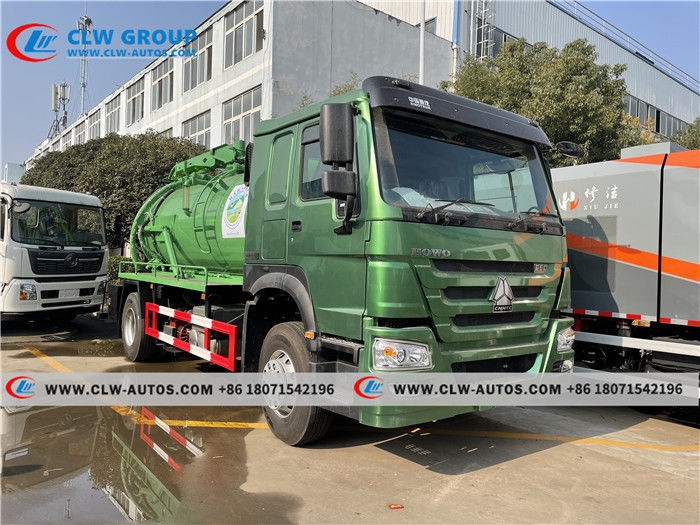

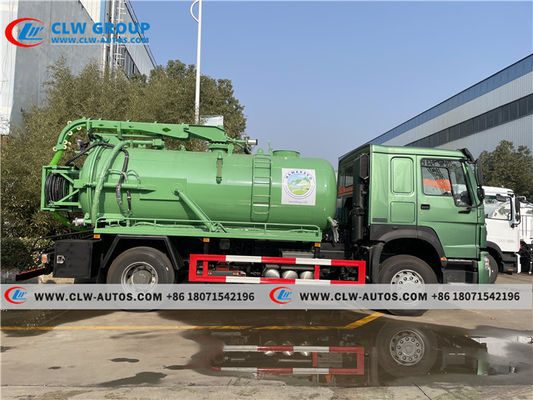

HOWO 12,000Liter Septic tank truck Sanitation Service Truck for Kenya
Product Description
1. Chassis: HOWO,Shacman,Faw,Dongfeng,Foton,JAC,JMC all for choice
2. Tanker capacity :From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
4. Vacuum pump: Chinese brand or Italy brand(BP, Jurop brand for choice)
5. Septic tank truck is a sanitation vehicle, that collects and transfers sludge, septic and sewage with liquid substances such as feces, mud, crude oil, especially the sewage slurry, silt, stones, brick, blocks and other bulk objects, to avoids secondary pollution. It's functioning self-suction and discharge, faster working speed and larger vacuum, that widely used in sewer, cesspit and gully.
| Complete Vehicle Parameter | |
| Vehicle | HOWO Septic tank truck |
| Overall dimension (mm) | 8500×2500×3200 |
| Sewage tank (m3) | 12 |
| Gross vehicle weight (kg) | Appro×18000 |
| Curb weight (kg) | Appro×9000 |
| Payload (kg) | Appro×10000 |
| Wheel base (mm) | 4700 |
| Max speed (km/h) | 90 |
| Chassis Parameter | |
| Cabin | Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive |
| Drive form | 4×2 |
| Engine | Brand: sinotruk Model: wd615-87, 290hp Type: diesel, turbocharged, 6 cylinder. Displacement: 9726ml Emission standard: Euro 3 |
| Transmission | 10 forward,2 reverse, manual operated |
| Tire model | 12.00R20 |
| No.of tires | 6 pcs, with 1pc spare tire |
| Superstructure Parameter | |
| Characteristic | 1. Sewage tank volume 12000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump(Italy BP pump) 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. |
| Performance | (1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min. |

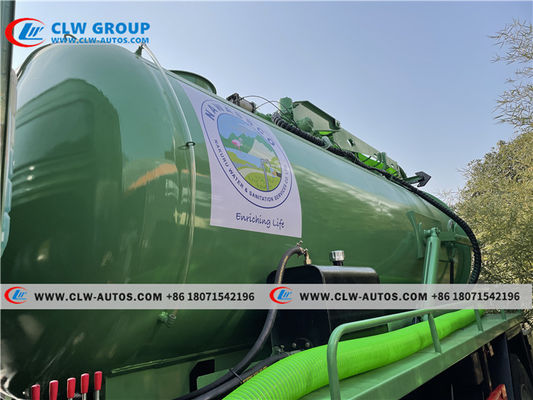

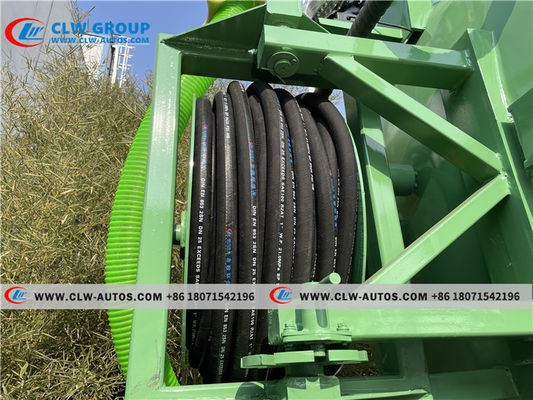

Truck Details

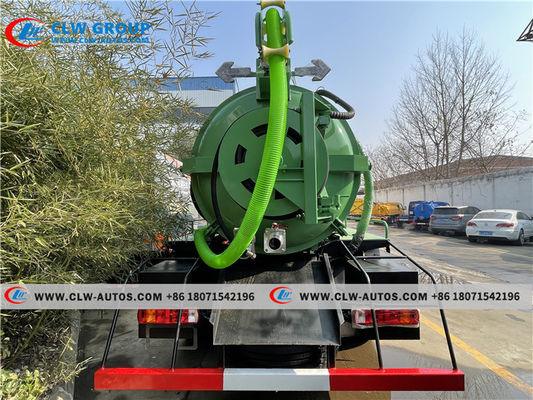

Discharge
Sales Service
① 20 years engineer team do design and drawing, Economic Price with high quality
② Video and photos during whole production process, three layers paiting for long run, Customized logo
③ After-sales Service: one year warranty for majoy pars, factory price for spare parts whenever needed, live video guidance for first user.
Operation manual step by step.
Key words: Sewage suction truck, Sewer cleaning truck, Sewer vacuum Truck, sewage vacuum truck
