उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Chassis Brand: | Dongfeng, Foton, Isuzu, Sinotruk howo, etc. | Hopper Size: | 5cbm, Ground Type |
|---|---|---|---|
| लोडिंग क्षमता: | 5टन | हॉपर की मोटाई: | 5 मिमी, कार्बन स्टील Q235B |
| सुरक्षात्मक सामग्री: | Q235A कार्बन स्टील | हॉपर मात्रा: | ग्राहक के अनुरोध के अनुसार |
| डंप प्रकार: | हाइड्रोलिक सिलेंडर उठाना और स्व-लोडिंग | नियंत्रण का तरीका: | तीन-तरफा हाइड्रोलिक नियंत्रण वाल्व |
| रंग: | ग्राहक के अनुरोध के अनुसार | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | 5000L Garbage Collection Truck,Sinotruk Howo Garbage Collection Truck,5000L Waste Collection Truck |
||

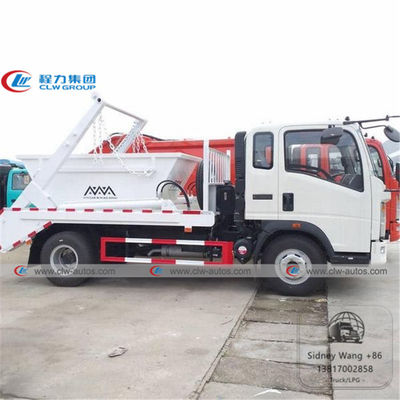

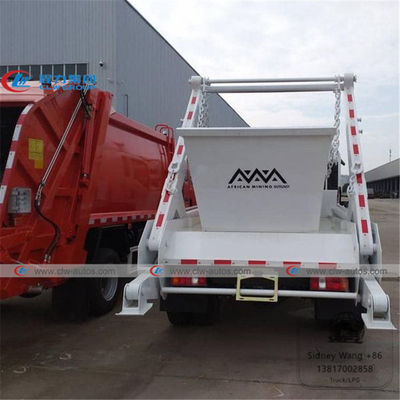

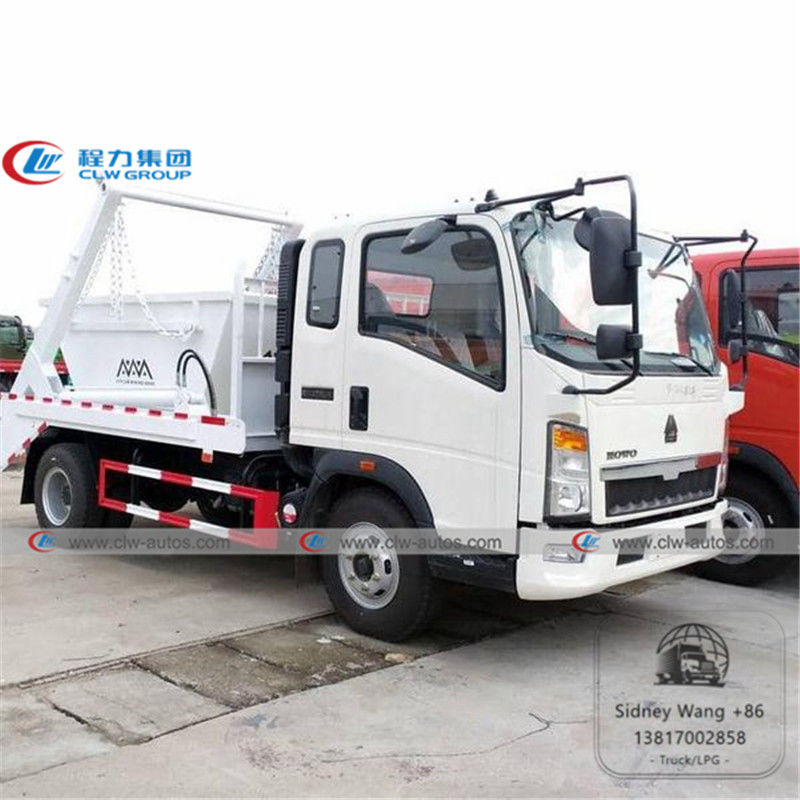

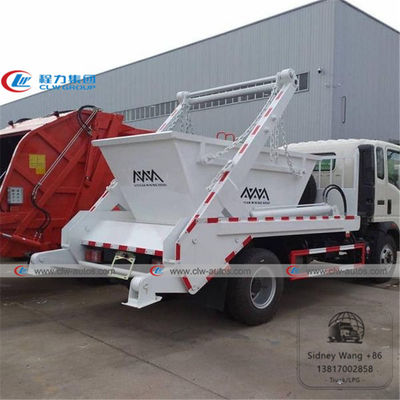

Sinotruk howo 5000litres 5cbm 5tons swing arm type garbage collection truck waste removal truck
Description
The swing arm type garbage truck is divided into two types: the ground type and the pit type. The swing arm garbage bucket has two types of square and boat type. The vehicle is equipped with one or more garbage buckets, and the garbage bucket is placed or placed by two swing arms.
1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;
2. Easy Full Automatic Operation: electrical control system for loading and unloading operations.
3. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.
Specification
| SINOTRUK HOWO 4X2 Swing-arm Garbage Truck | ||
| Cabin | with two seats, with A/C,70° hydraulically tillable to the front | |
|
Vehicle Main Dimensions |
(L x W x H)mm | 7200x2500x3600 |
| Wheel base (mm) | 3800 | |
| Wheel track (front/rear) (mm) | 1900/1860 | |
| Approach/Departure angle(°) | 16/17 | |
|
Weight in KGS |
Tare Weight | 4635 |
| Loading Capacity | 5000 | |
| Front axles loading capacity | 1x3000 | |
| Rear axles loading capacity | 1x5000 | |
| Max. driving speed(km/h) | 95 | |
|
Engine |
Brand | YUCHAI |
| Model | YC6J140 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 140 HP | |
| Emission standard | Euro 2 | |
| Gearbox | DC6J65TC, 6 forwards & 1 reverse | |
| Clutch |
Push type diaphragm spring clutch, diameter 395 mm
|
|
| Tire | 7.50R16, All steel tire, 7pieces | |
| Garbage System |
1. Box Size: 5 CBM matched 2. PTO motivated hydraulic system 3. Hydraulic cylinder: two cylinders with lifting arm and two cylinder with landing leg |
|
Reference Photos
Main Structure and Details
Main Parts
Bulk Order of 120 Units to Madagascar
Factory overview
Different Types of Garbage Truck
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage Truck?
A: China GB local standard.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
