उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| चेसिस ब्रांड: | SINOTRUK HOWO, डोंगफेंग, फोटोन, इसुजु आदि। | कचरा बॉक्स का आकार: | 20सीबीएम |
|---|---|---|---|
| Loading Capacity: | 18tons,18mt,20T,20mt,20tonns | बक्सा की मोटाई: | साइड 4 मिमी, निचला 5 मिमी, कार्बन स्टील Q235B |
| सुरक्षात्मक सामग्री: | Q235A कार्बन स्टील | डंप प्रकार: | हाइड्रोलिक सिलेंडर उठाना और स्व-लोडिंग |
| नियंत्रण का तरीका: | तीन-तरफा हाइड्रोलिक नियंत्रण वाल्व | रंग: | स्वनिर्धारित |
| गारंटी: | 1 वर्ष | ||
| प्रमुखता देना: | 20m3 Waste Bin Truck,339HP Waste Bin Truck,20cbm Waste Bin Truck |
||
Product Description
*Top 500 Private enterprises in China
*National standard steel customization
*Optional shapes of waste bins
*Light weight and easy maintenance
*Reliable product quality, low failure rate and low operating costs
Product Specification
| Truck model |
ZZ1257N4347P1
|
| Drive style | Right hand drive |
| Drive model | 8x4 |
| Dimensions(LxWxH) | 8915x2496x3050 MM |
| Cargo body | 20 cbm |
| Loading weight | 20tonns |
| Engine | D10.34-40, 339hp |
| Emission standard | EURO 4 |
| Front axle | HF7, 7tons loading capacity |
| Rear axle | HC18, 18tons loading capacity |
| Transmission | HW9726, 10 forward & 2 reverse. |
| Steering system | hydraulic steering with power assistance |
| Tires | 11.00R20 16PR, 10+1spare |
| Upperstructure Specification | ||
| Garbage Hopper | Dimension | 5600×2300×1500mm |
| Standard Configuration | With one garbage bin, with hydraulic rear outrigger | |
| Volume | Ground type, 18CBM or 20cbm | |
| Loading Capacity | 16tons or 18Tons | |
| Thickness | 5mm, Carbon Steel Q235B | |

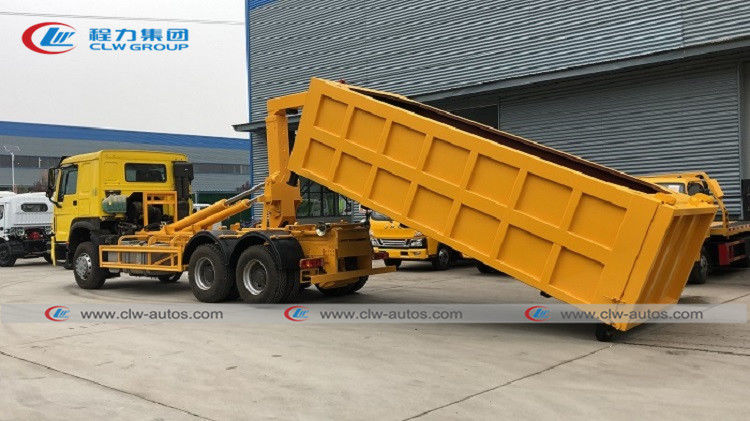

| Dump type | Hydraulic cylinder lifting and self-loading | |
| Dump angle | ≥45° | |
| Hydraulic system pressure | ≤16Mpa | |
| Protective Material | Q235A Carbon Steel | |
| Controlling Way | Three-way hydraulic control valve | |
| Other Configuration |
|
|
| Options | Electronically controlled valve, trash bin type, trash bin quantity, etc. | |
Main Structure and Diagram
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different sizes of garbage truck as client's request. As for the capacity, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage Truck?
A: China GB local standard.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
