उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ब्रांड: | HOWO, डोंगफेंग, JAC, FOTON, शैकमैन, FAW | ईंधन: | डीज़ल |
|---|---|---|---|
| व्हीलबेस: | 4350+1300 मिमी | टैंक सामग्री: | कार्बन स्टील q235a |
| मोटाई: | साइड और एंड प्लेट के लिए 4 मिमी | Waste tank size: | 16,000liters,16cbm, 16m3 |
| वैक्यूम पंप: | चीन प्रसिद्ध ब्रांड/इटली बीपी ब्रांड | स्राव होना: | टैंक बॉडी हाइड्रोलिक लिफ्टिंग |
| सीवेज सक्शन पाइप: | 8 मीटर | सक्शन का समय: | 5 मिनट से कम |
| गारंटी: | प्रमुख भागों के लिए एक वर्ष | रंग: | अनुकूलित लोगो |
| Painting: | Three Layer paiting | उत्पादन काल: | 40 दिन |
| ऑपरेशन वीडियो: | हाँ | उपयोगकर्ता पुस्तिका: | हाँ |
| प्रमुखता देना: | 16cbm Sewage Suction Truck,SINOTRUK HOWO Sewage Suction Truck,16cbm Sewer Cleaning Truck |
||

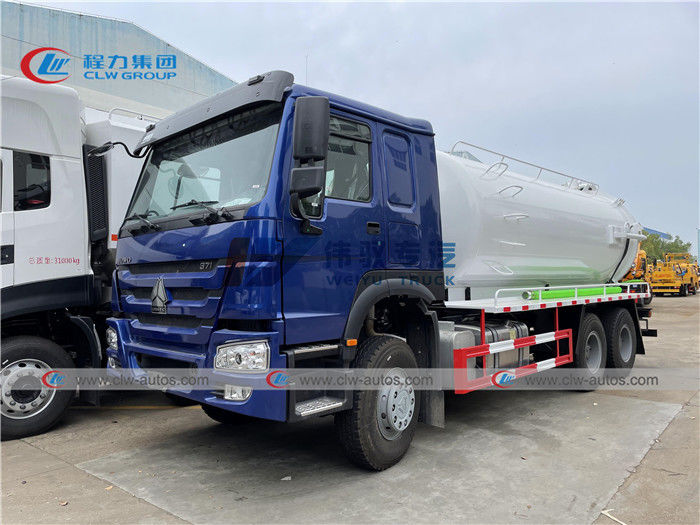

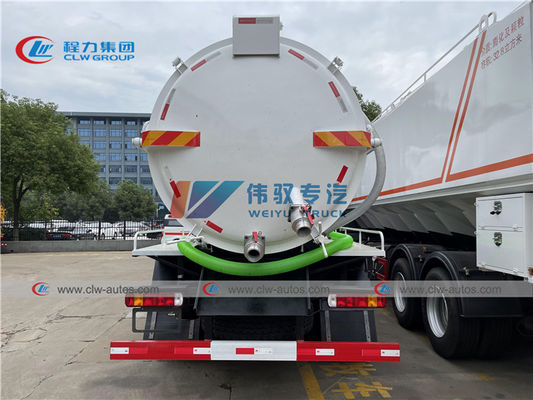

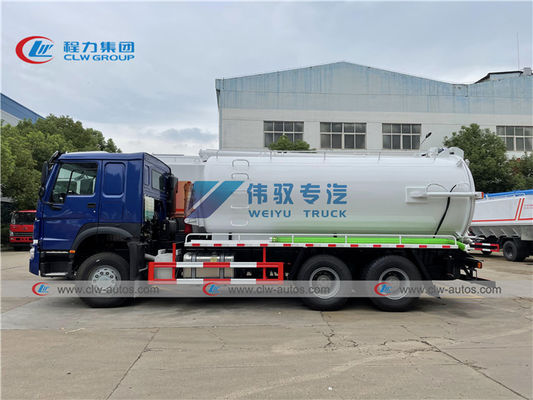

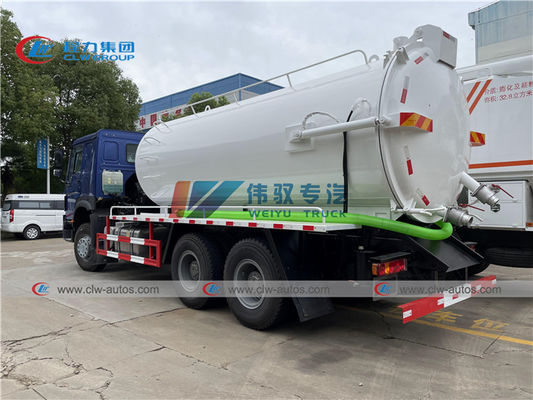

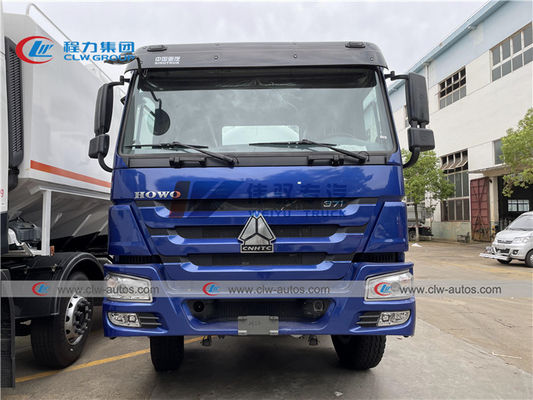

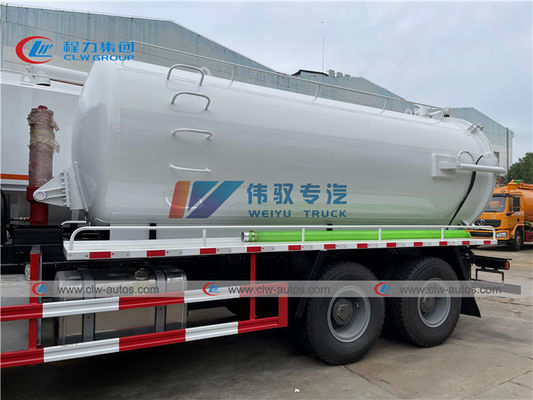

SINOTRUK HOWO 16cbm Sewage Suction Truck with Italy BP Vaccum pump Sewer Cleaning Truck
Product Description
1. Chassis: HOWO,Dongfeng,Foton,JAC,JMC,FAW all for choice
2. Tanker Volume :From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
4. Vacuum pump: Chinese brand or Italy brand(BP, Jurop brand for choice)
| Complete Vehicle Parameter | |
| Vehicle | HOWO vacuum sewage truck |
| Overall dimension (mm) | 9590×2500×3800 |
| Sewage tank (m3) | 16 |
| Gross vehicle weight (kg) | Appro×25000 |
| Curb weight (kg) | Appro×13000 |
| Payload (kg) | Appro×12000 |
| Wheel base (mm) | 4350+1300 |
| Max speed (km/h) | 90 |
| Chassis Parameter | |
| Cabin | Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive |
| Drive form | 6×4 |
| Engine | Brand: sinotruk Model: wd615-47, 371hp Type: diesel, turbocharged, 6 cylinder. Displacement: 9726ml Emission standard: Euro 3 |
| Transmission | 10 forward,2 reverse, manual operated |
| Tire model | 12.00R20 |
| No.of tires | 10 pcs, with 1pc spare tire |
| Superstructure Parameter | |
| Characteristic | 1. Sewage tank volume 16000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump(Italy BP pump) 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. |
| Performance | (1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min. |
Discharge
Working Show
Sales Service
① 20 years engineer team do design and drawing, Economic Price with high quality
② Video and photos during whole production process, three layers paiting for long run, Customized logo
③ After-sales Service: one year warranty for majoy pars, factory price for spare parts whenever needed, live video guidance for first user.
Operation manual step by step.
Key words: Sewage suction truck, Sewer cleaning truck, Sewer vacuum Truck, sewage vacuum truck
