उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| चेसिस ब्रांड: | डोंगफेंग, फोटोन, इसुज़ु, सिनोट्रुक होवो, आदि। | प्रकार: | हुक लिफ्ट प्रकार |
|---|---|---|---|
| कचरा बॉक्स का आकार: | 12 सीबीएम, 12,000 लीटर, 13 सीबीएम, 13,000 लीटर, आदि। | लोडिंग क्षमता: | 7 टन, 8 टन, 9 टन, आदि। |
| बक्सा की मोटाई: | साइड 4 मिमी, निचला 5 मिमी, कार्बन स्टील Q235B | सुरक्षात्मक सामग्री: | Q235A कार्बन स्टील |
| लोडिंग एवं अनलोडिंग: | हाइड्रोलिक प्रणाली | नियंत्रण प्रणाली: | बहु वाल्व |
| ऑपरेशन सिस्टम: | स्वचालित और मैन्युअल नियंत्रण दोनों | समय पर कंटेनर रोल: | 50-60 के दशक |
| कंटेनर रोल ऑफ टाइम: | 40-50 के दशक | लोगो और रंग: | ग्राहक के अनुरोध के अनुसार |
| गारंटी: | 1 वर्ष | ||
| प्रमुखता देना: | 13cbm Hook Lift Garbage Truck,Hydraulic Arm Hook Lift Garbage Truck,Dongfeng Hook Lift Truck |
||
Product Description
1. Garbage Bin with different size options of waste collection truck: 2cbm to 20cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
Product Specification
| Unit | Parameters | ||
| Overall Dimension(L*W*H) | mm | 7500*2470*3150 | |
| Tank Cubage | m3 | 13 | |
| Entrance Width | mm | 2000 | |
| Loading Capacity | mt | 3-4 | |
| Max Loading Mass | kg | 7945 | |
| Gross Vehicle Weight | kg | 15800 | |
| Compressing Ratio | ° | >=1:4 | |
| Max Hydraulic Pressure | Mpa | 19.6 | |
| Loading Cycle Time | s | <=30 | |
| Discharging Time | s | <=45 | |
| Max Torsion/Rev | N*m/r/m | 900/1400;925/1400;970/1400 | |
| Engine Model | Cummins 190HP | ||
| Emission | Euro 2, or 3, or 4 | ||
| Fuel Type | Diesel | ||
| Max Driving Speed | Km/h | 95 | |
| Chassis Model | Option:Dongfeng,Isuzu,Hino,Sinotruk,JAC,FAW,Foton... | ||
| Wheel Base | mm | 4700 | |
| Front/Rear Axle | mm | 4500/9000 | |
| Curb Weight | kg | 7725 | |

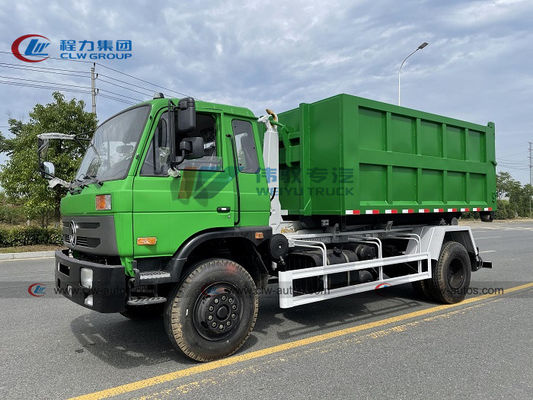

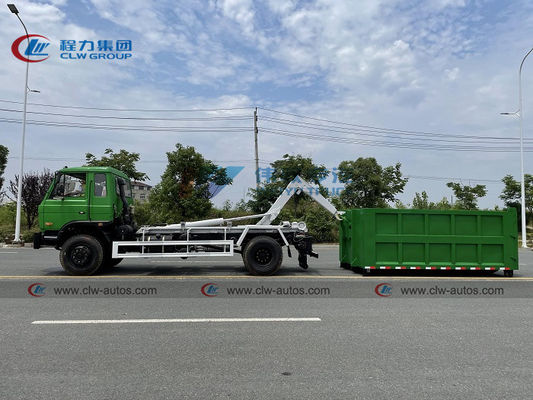

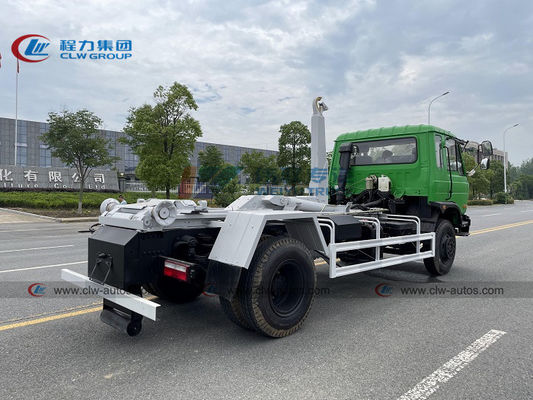

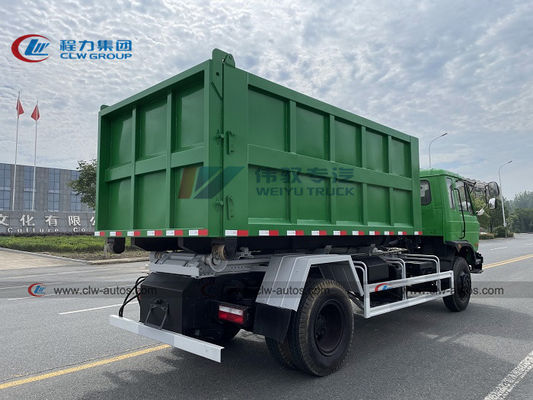

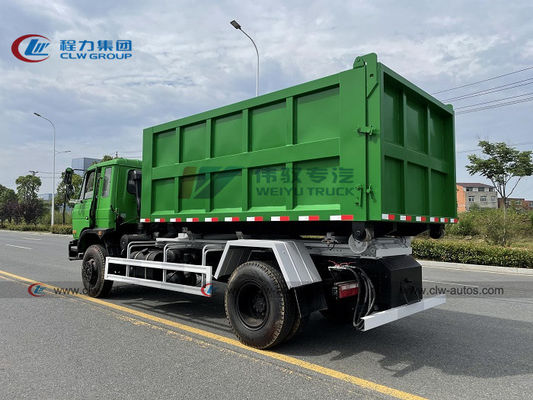

Reference Photos
Hydraulic Hook Arm System Structure
Main Parts
Different Types of Garbage Truck
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different sizes and types garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for garbage truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
