उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ड्राइविंग मॉडल: | एलएचडी, लेफ्ट हैंड ड्राइव, आरएचडी, राइट हैंड ड्राइव स्किप लोडर कचरा ट्रक | चेसिस ब्रांड: | HOWO, डोंगफेंग, फोटोन, शैकमैन, ISUZU स्किप लोडर कचरा ट्रक |
|---|---|---|---|
| ईंधन प्रकार: | डीजल इंजन स्किप लोडर कचरा ट्रक | सामग्री: | कार्बन स्टील स्किप लोडर कचरा ट्रक |
| आयतन: | 8000~10000L,8m3 10m3 स्किप लोडर कचरा ट्रक | बिक्री के बाद सेवा प्रदान की गई: | विदेशी तृतीय-पक्ष सहायता उपलब्ध, ऑनलाइन सहायता, वीडियो तकनीकी सहायता, मुफ़्त स्पेयर पार्ट्स, फ़ील्ड |
| ट्रक का प्रकार: | रोल आर्म कचरा ट्रक, स्विंग आर्म कचरा ट्रक, स्किप लोडर कचरा ट्रक | नाम: | स्किप लोडर कचरा ट्रक |
| लोडिंग क्षमता: | 8 टन, 10 टन, 9 टन, 8 टन, 9 टन, 10 टन स्किप लोडर कचरा ट्रक | पहिये का आधार: | 3950 मिमी स्किप लोडर कचरा ट्रक |
| घोड़े की शक्ति: | 170hp 190hp लोडर कचरा ट्रक छोड़ें | ||
| प्रमुखता देना: | Self Loading Swing Arm Garbage Truck,5m3 Swing Arm Garbage Truck,Dongfeng Waste Removal Trucks |
||
Swing Arm Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.
According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
Specification
| Brand | Dongfeng Dolika | |
| Engine Power & Transmission |
Engine Model | YC4D140-20 |
| Engine Brand | Yuchai Diesel Engine Co., Ltd | |
| Fuel Type | Diesel | |
| Displacement / Power | 4212ml / 103kw, 140HP | |
| Engine Type | Turbocharged inner cooled, water cooling, four cylinder inline.direct injection | |
| Rated Speed | 2500rpm | |
| Max Torque | 420N.m | |
| Max torque(N.m/rpm) | 1600-1900rpm | |
| Emission Stand | Europe III | |
| Fuel tank capacity (L) | 200 | |
| Number of speeds, | 6 Forward, 1 Reverse | |
| Chassis | Chassis Type | EQ1080SJ8BDC |
| Dimension (LxWxH) | 6740x 2100 x 2390mm | |
| Chassis Weight(kg) | 3195 | |
| Wheelbase (mm) | 3800 | |
| Drive Type | 4X2 | |
| No. of Axles | 2 | |
| Cab seats | 3 + 1 berth | |
| Max Speed(km/h) | 90 | |
| Tire | 7.50R16 Radial tyre | |
| Tire No.'s | 6+1 spare | |
| Track width F/R (mm) | 1740/1610 | |
| Chassis load (kg) | 3310 / 4695 | |
| Front/Rear suspension | 1130/1810 | |
| Appr/Dep Angle (°) | 20/14 | |
| Service brake type | Compressed air brake | |
| Parking brake type | Spring energy, compressed air operating on rear wheels | |
| Aic Condition | Yes | |
| Weight & Dimension (With van box) |
Gross Vehicle Weight(kg) | 9950 |
| Curb Weight(kg) | 4750 | |
| Rated Weight / load(kg) | 5200 | |
| Wheelbase(mm) | 3,800 | |
| Front/Rear suspension | 1130/1770 | |
| Appr/Dep Angle (°) | 20/13 | |
| Ground Clearance (mm) | >=220 | |
| Overall Dimension(mm) | 6700×2150×2950 | |
| (length ×width×height ) | ||
| Upper Structure Configuration |
Skip loader dimension(mm) | 3170x1650x1250, the shape can be adjusted as per special request |
| (length ×width×height at side) | ||
| Skip loader Capacity | 4 ton, 5 cbm | |
| Material of skip loader | Q235B high quality carbon stell | |
| Thickness of skip loader | Bottom 4mm, side 3mm | |
| Oil cylinder | Hydraulic oil cylinder, 2 sets | |
| Loading medium | House hold waste (not including construction waste) | |
| Production lead time | 30-45 days | |
| Remark | 1. With power assisted steering, A/C, spare tyre, hydrlic telescopic jack, wheel brace etc tools. 2. If with Euro IV emission standard engine of YC4S150-48 150HP, the price need to upcharge usd2700/set. |
|

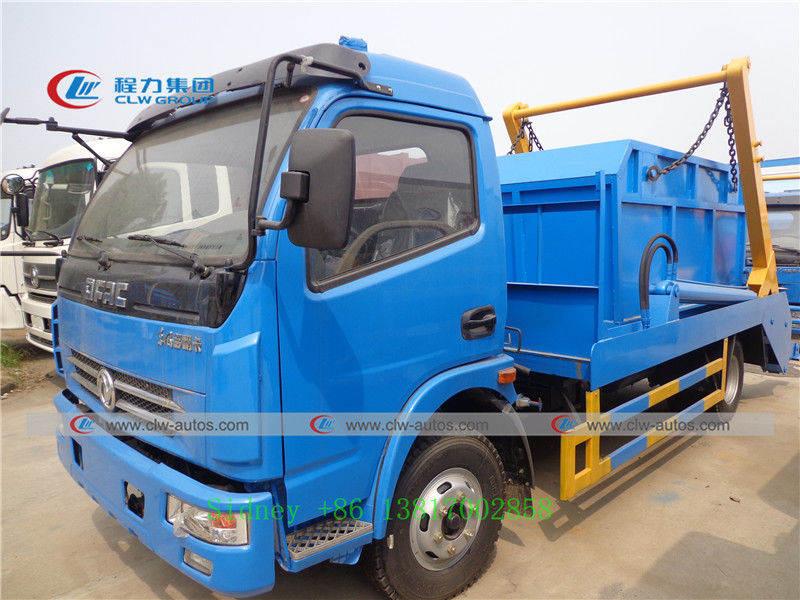

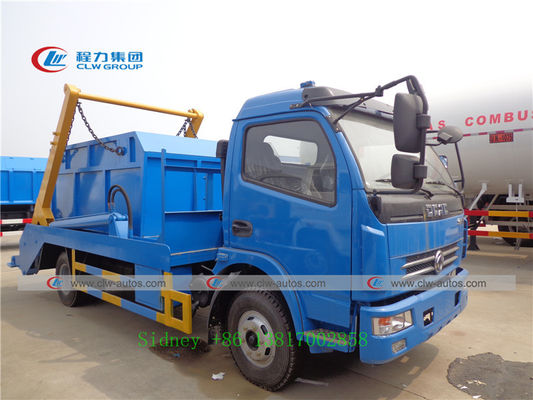

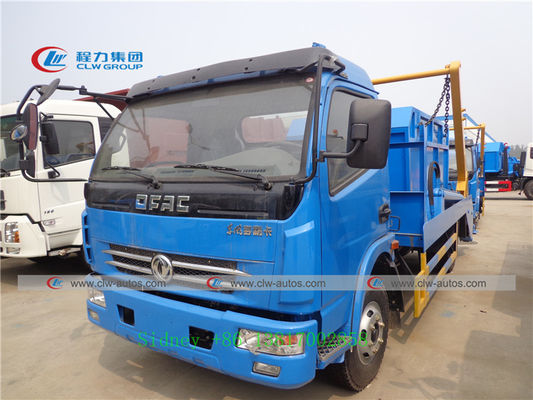

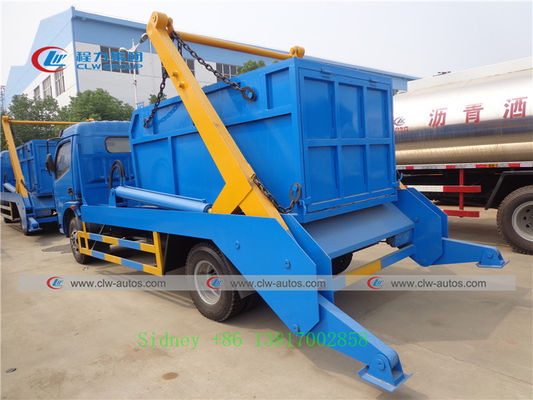

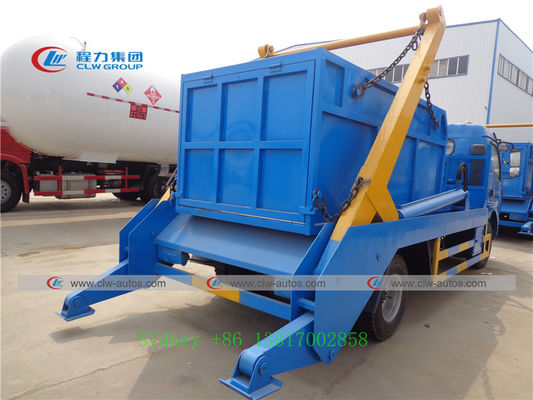

Reference photos
Truck diagram
Truck drawing
Truck details
Working show
Factory overview
Overseas exhibition and local visit
Customer Visiting
Other trucks we can supply
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
