उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| बॉक्स सामग्री: | कार्बन स्टील Q235B | ट्रक ब्रांड: | डोंगफेंग, होवो, जेएसी, जेएमसी, फॉ, फोरलैंड, फोटोन |
|---|---|---|---|
| ट्रक इंजन: | चांगान 70hp | GearBox: | 5 फॉरवर्ड और 1 रिवर्स |
| थका देना: | 165/70आर13एलटी, एक अतिरिक्त के साथ 6 पीसी | स्टीयरिंग: | एलएचडी, लेफ्ट हैंड ड्राइव, आरएचडी, राइट हैंड ड्राइव |
| प्रमुखता देना: | waste collection truck,hook lift garbage truck |
||

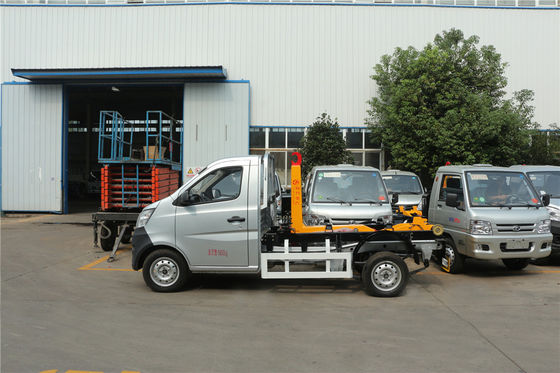

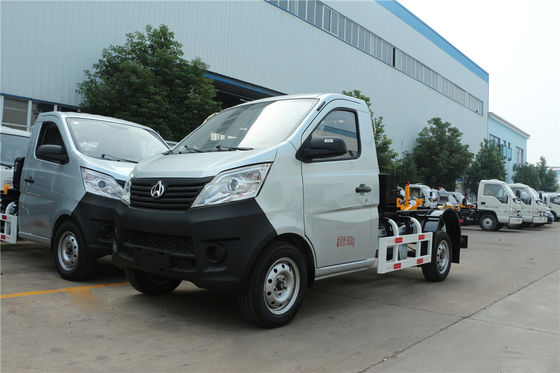

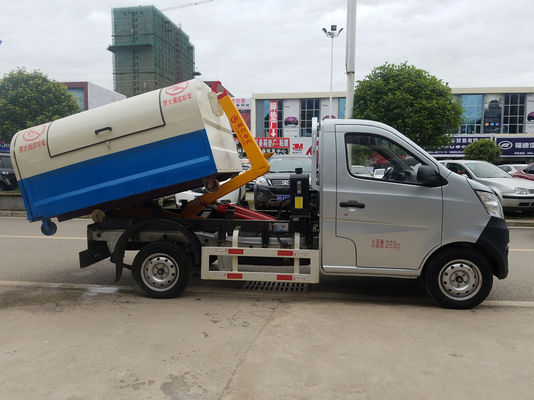

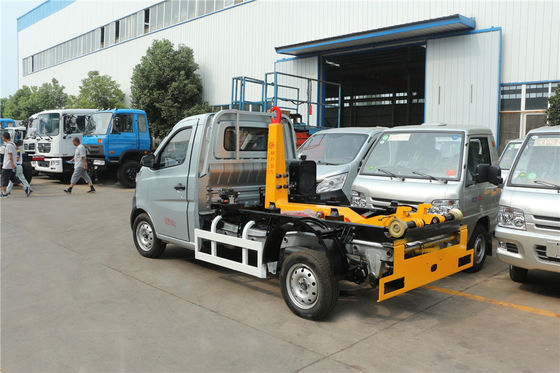

Small Dumpster Hooklift garbage truck 2ton Chinese 2cbm Roll on/off container truck
1. Dongfeng Chassis of Hooklift garbage truck: Engine 70HP, Fast Gearbox 5Forward & 1 Reverse,
2. Garbage Bin with different size options of Hooklift garbage truck: 4cbm to 12cbm
2. Hydraulic Control Loading & Unloading System
3. Different shapes of Hooklift garbage truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. high-tensile steel chains:imported hydraulic oil cylinder and sealing material
5. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck
8. Best Choice for Garbage collection and transporation Inside City.
| Drive type | 4*2, New condition, LHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 3920×1480×1920 | |
| Wheel base (mm) | 2700 | ||
| Track front/rear mm | 1280/1290 | ||
| F/R Axle-Load | 835/1015 kg, | ||
| Approach/departure angle | 58/32 | ||
| Curb weight | 1260 kg | ||
| GVW | 1850 kg | ||
| Max. driving speed(km/h) | 95 | ||
| Engine | Brand | Chang'an | |
| Model | JL466Q1 | ||
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 70 | ||
| Emission standard | Euro III | ||
| Gearbox | 6 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 165/70R13LT,7 pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Equipment for Garbage Compactor | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 2cbm,3cbm | ||
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | ||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen
FAQ
Q1: What kinds of Hooklift garbage truck I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied Hooklift garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered container hook lift trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
