| बॉक्स सामग्री: | कार्बन स्टील Q235B | ट्रक ब्रांड: | डोंगफेंग, होवो, जेएसी, जेएमसी, फॉ, फोरलैंड, फोटोन |
|---|---|---|---|
| ट्रक इंजन: | चाओचाई इंजन 120hp,95hp,190hp,170hp | GearBox: | 5 फॉरवर्ड और 1 रिवर्स |
| थका देना: | एक अतिरिक्त के साथ 6.50-16,6.50R16,6 पीसी | स्टीयरिंग: | एलएचडी, लेफ्ट हैंड ड्राइव, आरएचडी, राइट हैंड ड्राइव |
| प्रमुखता देना: | rubbish collection truck,hook lift garbage truck |
||

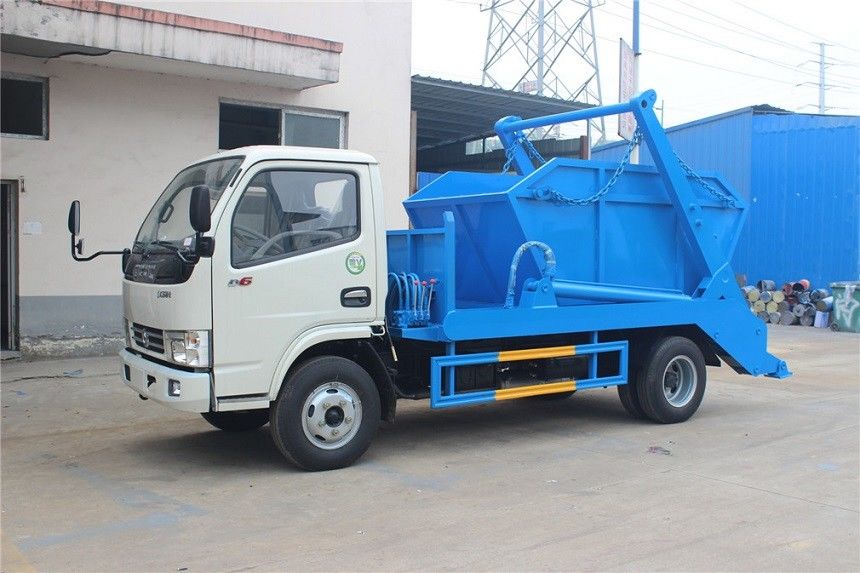

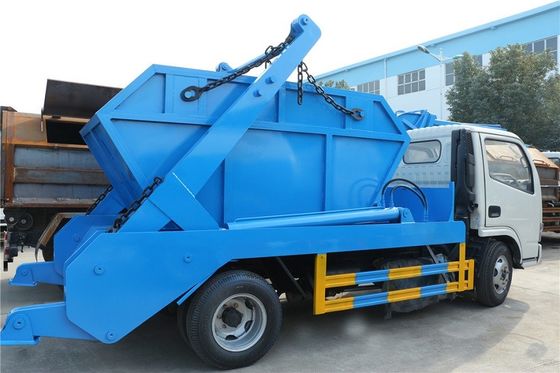

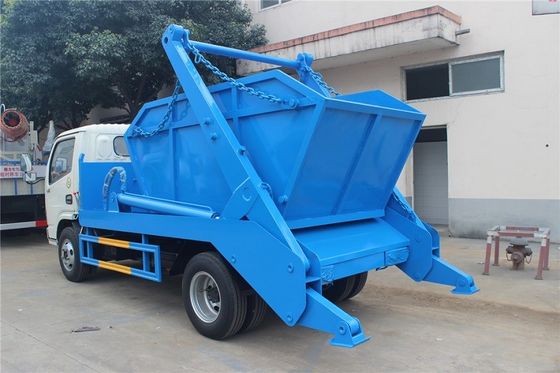

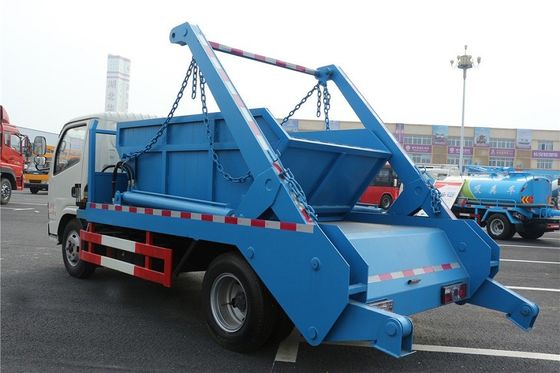

Dongfeng 4cbm waste collection truck 6-wheel mobile waste removal vehicle 4tons
1. Dongfeng Chassis of waste collection truck: Engine 95HP, Fast Gearbox 5Forward & 1 Reverse,
2. Garbage Bin with different size options of waste collection truck: 4cbm to 10cbm

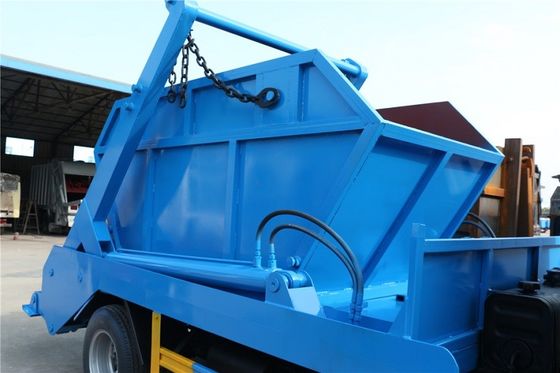

2. Hydraulic Control Loading & Unloading System
3. Different shapes of waster collection bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. high-tensile steel chains:imported hydraulic oil cylinder and sealing material
5. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck
8. Best Choice for Garbage collection and transporation Inside City.
| Drive type | 4*2, New condition, LHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 5950×2000×2900 | |
| Wheel base (mm) | 3300 | ||
| Track front/rear mm | 1503/1494 | ||
| F/R Axle-Load | 2640/4720 kg, | ||
| Approach/departure angle | 20/13 | ||
| Curb weight | 4100 kg | ||
| GVW | 7360 kg | ||
| Max. driving speed(km/h) | 95 | ||
| Engine | Brand | CHAOCHAI Brand,Diesel ENGINE | |
| Model | CY4102 | ||
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 120 | ||
| Emission standard | Euro III | ||
| Gearbox | 6 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 6.50-16, 7 pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Equipment for Garbage Compactor | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 4cbm | ||
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | ||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen
FAQ
Q1: What kinds of waste collection truck I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied waste collection truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
