उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ब्रांड: | डोंगफेंग, सिनोट्रुक, फोटॉन, इसुजु, फॉ, शाकमान | ड्राइव मोड: | 4*2 4*4 6*2 8*4, आदि। ग्राहक के अनुरोध के अनुसार। |
|---|---|---|---|
| टैंक सामग्री: | वैकल्पिक के लिए Q235B और स्टेनलेस स्टील | टैंक का आकार: | 5सीबीएम; 8सीबीएम; 10सीबीएम; 12सीबीएम; 15सीबीएम |
| टैंक क्षमता: | 5t; 8t; 10t; 12t; 15t | टैंक की मोटाई: | 4 मिमी; 5 मिमी; 6 मिमी |
| जल पंप प्रवाह: | 40 मीटर/एच | जल परिवर्तन का समय: | <15 मिनट |
| स्प्रेयर आयाम: | 1100*500*1700मिमी | स्प्रेयर की रेंज: | 30मी |
| पानी की खपत: | 0.8—1 एम3/घंटा | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | 5Ton Isuzu Water Sprinkler Truck,Water Sprinkler Truck 5CBM,Hydraulic Debris Cleaning Truck |
||
Description
1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacaman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.
Water sprinkler truck
1.capacity from 3000 L to 30000 L
2.water tanker truck equipped with sprayer ,360 degree rotation water cannon for agriculture farm irrigation ,street cleaning , have function front flush ,rear sprinkler ,side spray
3.water pump powerful truck,truck sprinkler width more than 12 m
Specification
| WATER TANKER TRUCK | ||
| Descriptions | Specifications and types | |
| General | Truck Brand | CLW |
| Chassis Brand | ISUZU | |
| Approx. Dimension | 5890*2150*2400 mm | |
| GVW./Kerb Wt. | 8275 / 3310 kg | |
| Cab | Cab Capacity | 3 persons' seat |
| Air Conditioner | With Air Conditioner | |
| Chassis | Drive Type | 4X2, left hand drive |
| Fuel Type | Diesel | |
| Engine Make & Model | 4KH1CN6LB | |
| Power | 120HP | |
| Emission Standard | Euro II or EURO III or Euro IV or Euro V | |
| Brake | Air Brake | |
| Wheelbase | 3360 mm | |
| Tyre Specfication | 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Automative metallic paint | |
| Capacity | 5 CBM 5000Liters | |
| Structure& Function |
*Equipped with front(rear, side)sprinkler(sprinkling width>14m ) *Equipped with rear working platform with water cannon (range>28m) *Equipped with water pump(suction lift>6m) *Equipped with fire valve, water valve, and filter gauze |
|

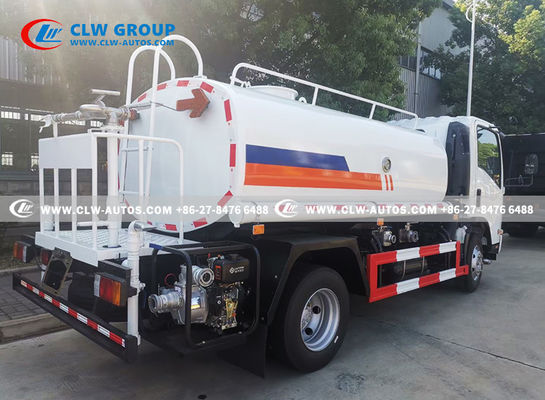

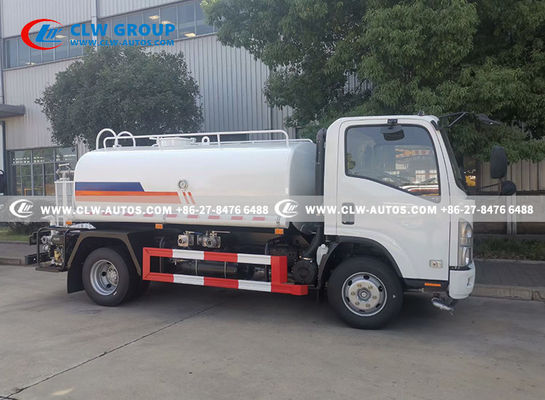

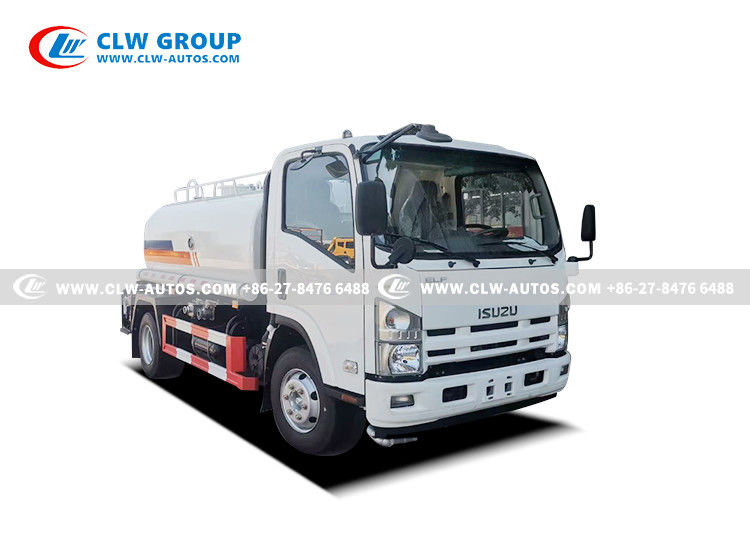

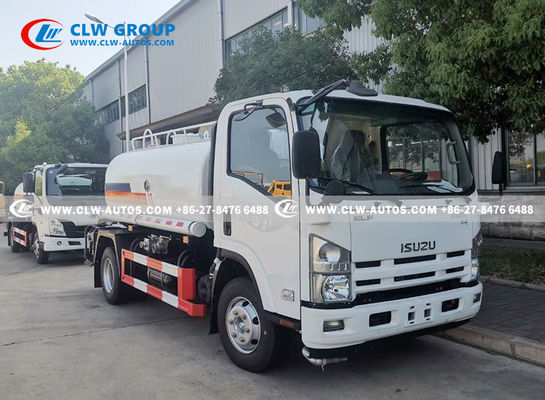

Reference photos
Truck diagram
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
