उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ट्रेलर टैंक क्षमता: | 40m3-61.9m3 | संक्षारण भत्ता: | 1.0 मिमी |
|---|---|---|---|
| डिजाइन तापमान: | -19~50 डिग्री | टैंक सामग्री: | Q345r, Q370r, या SA516gr70, आदि। |
| एक्सल ब्रांड: | बीपीडब्ल्यू, फूवा, यॉर्क, आदि। | Curb Weight: | 15650kg |
| हाइड्रोलिक परीक्षण दबाव: | 2.1 एमपीए | भरने का कारक: | 420-590 किग्रा/एम3 |
| थका देना: | 12R22.5 | उष्मा उपचार: | संपूर्ण टैंक |
| वायु जकड़न परीक्षण: | हाँ | हाइड्रोलिक परीक्षण: | हाँ |
| जीवनभर: | 20 वर्ष | रंग और लोगो: | स्वनिर्धारित |
| गारंटी: | 1 वर्ष | Material: | Steel, Q370R, Q345, Q345R,Q370R etc |
| Type: | Semi-Trailer, oil tank semi-trailer, Full Trailer | ||
| प्रमुखता देना: | 30ton LP Gas Truck,Q345r LP Gas Truck,BLACKMER Pump Propane Delivery Tanker |
||
Product Description:
1. 12990x2500x3990mm overall dimensions
2. 25tonns tank volume with Q345 carbon steel tank material
3. 1.61 design pressure and 2.22 Hydraulic Test pressure
4. JOST outrigger, 3*13T BPW axles
5. lpg accessories: Manhole, Safety Valve, Level Gauge, Emergency Cut-off Valves, Ball Valve,Liquid Gauge,Thermometer, Pressure Gauge
Application range:
-- We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
-- Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

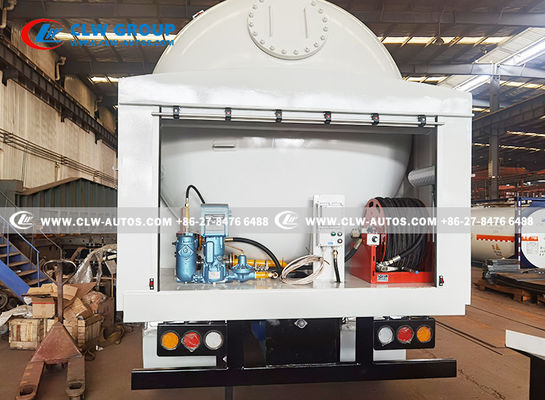

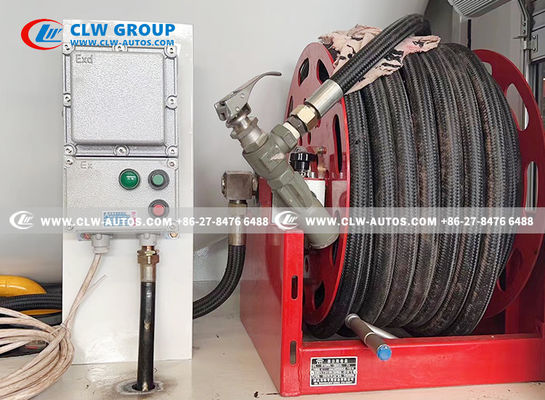

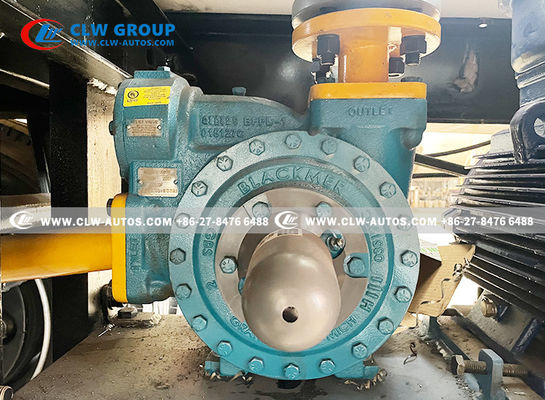

-- Optional accessories: ROCHESTER level gauge, volume and mass flow meter(LC or Neptune brand), sun shelter, lpg pump, lpg dispenser machine, filling hose,
-- Quick in and flange type liquid or vapour phase
-- FUWA, L1, YORK, BPW axles
Product Specification
| Item | Parameter | ||
| Tank | Volume | 59.5 CBM | |
| GVW | 40650KG | ||
| Overall dimensions (mm) | 12990*2500*3990 | ||
| Curb weight(kg) | 15650 | ||
| Approach Angle/Angle of departure | -/20 (°) | ||
| Wheel base | 7230+1310+1310(mm) | ||
| Tire | 12R22.5 12PR | ||
| Axle Number | 3 | ||
| Type of vessel | The third kind | ||
| Design pressure | 1.61MPa | ||
| Design temperature | -19~50ºC | ||
| Filling medium | Liquid petroleum gas (propane) | ||
| Corrosion allowance | 1.0mm | ||
| volume | 59.5 CBM | ||
| Thermal treatment | The entirety | ||
| Filling factor | 420-590kg/CBM | ||
| Material of the tank | Q345R | ||
| Hydraulic test pressure | 2.1 MPa | ||
| Cylinder thickness | 12mm | ||
| Head thickness | 14mm | ||
| Service time | 20 years | ||
| Liquid level indicator | Type | Float ball level gauge | |
| Normal pressure | 2.5MPa | ||
| Scope of testing | 50-2300mm | ||
| Precision | 2.5 | ||
| Safety valve | Model | A42F-2.5-80 | |
| Version | Built-in | ||
| Normal pressure | 2.5 M Pa | ||
| Normal diameter | DN80 | ||
| Opening pressure | 1.68~1.76M Pa | ||
| Re-seating pressure | >=0.8 times of the opening pressure | ||
| Loading and unloading system | Normal diameter | Feed pip | DN80 |
| Drain pip | DN80 | ||
| Admission port | DN80 | ||
| Sewage outfall port | DN80 | ||
| Vent nozzle port | DN80 | ||
| Standard | GB150 <pressure vessel>TSG R0004-2009 or ASME | ||
| Specification | Designed Pressure: 1.77Mpa Filling Ratio: 0.42-0.59 kg/L Working Temperature:-50ºC Corrosion Allowance: 1mm |
||
| Standard configuration | 13TBPW axle, ABS system, Single out the liquid, Double toolkit, thermometer, pressure gage, JOST king pin, JOST leg, Emergeny cut-off valves, Safety valve, 12 tubeless tire and one spare tire, fire extinguisher, anti-static tape, plastic mudfender. | ||

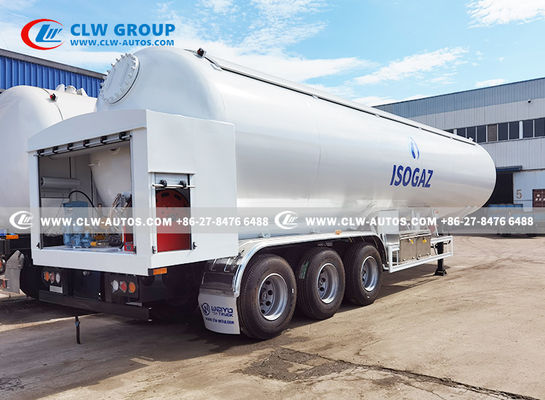

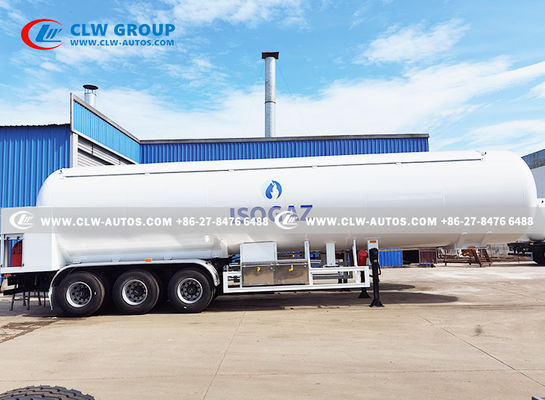

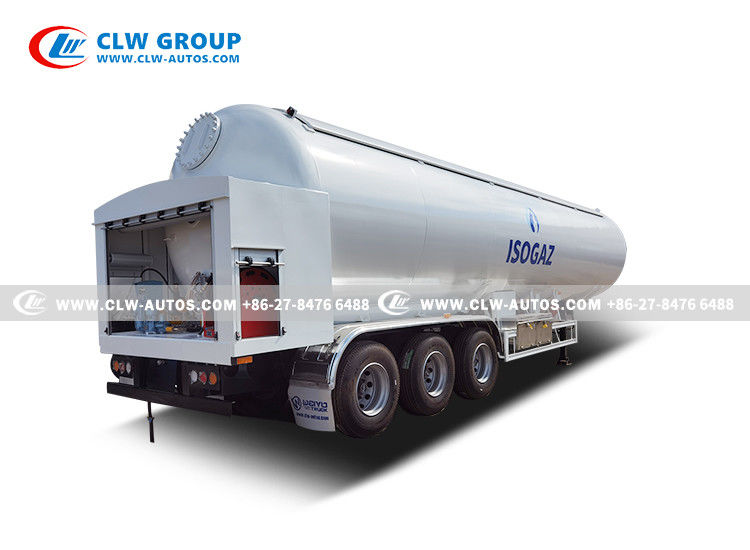

Reference Photos
Main Structure Diagram
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
