उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ट्रक ब्रांड: | डोंगफेंग, फोटॉन, HOWO, JAC, JMC, SHACMAN | टैंक क्षमता: | 10 टन, 10 टन, 10 टन |
|---|---|---|---|
| टैंक की मात्रा: | 20,000 लीटर, 20000L,20m3 | प्रवाह मीटर: | विस्थापन प्रवाह मीटर |
| पंप करना: | पीटीओ संचालित हाइड्रोलिक पंप | भरने वाला सिर: | रेगो ब्रांड |
| निर्वहन वाल्व: | 1'', 2'', 3'' निकला हुआ किनारा प्रकार | गारंटी: | एक वर्ष |
| प्रतीक चिन्ह: | ग्राहक के अनुरोध के रूप में | ||
| प्रमुखता देना: | LPG Cylinder Filling Delivery Truck,20m3 Mobile Filling Delivery Truck,Isuzu Giga Filling Bobtail Truck |
||
Specification:
| Item No. | Parameters |
| Overall Dimension | 9510X2470x3450 mm |
| Driving Model | Left hand drive or right hand drive |
| Gross Vehicle Weight | 35000 kg |
| Curb Weight | 9700 kg |
| Payload | 20,000 kg |
| F/R Axle Loading | 7500/2*13,000 kg |
| Wheel Base | 4600+1370 mm |
| Front/rear Tread | 1886/1845 mm |
| Approach/Departure Angle | 27/20 degree |
| Engine | 6UZ1-TCG61 diesel engine |
| Engine horsepower | 380 HP Euro 5 |
| Displacement | 7255mL (Diesel) |
| Max Driving Speed | 90 km/h |
| Cabin | 2~3 Passenger allowed,with A/C |
| Tire | 12R22.5 (10 pc with 1 spare) |
| LPG tank | |
| Volume: | 20cbm |
| Tank material: | Q345R |
| Tank diameter: | 1800mm |
| Tank thickness: | 12mm |
| End plate | 12mm |
| Tank length: | As designed |
| Gas phase | DN50 |
| Liquid Phase | DN50 or DN80 for option |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Accessory | |
| Level Gauge | Manual rotation type,at the rear of tank |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher holder | 2 |
| Exhaust shaft | At the front of truck for safety |

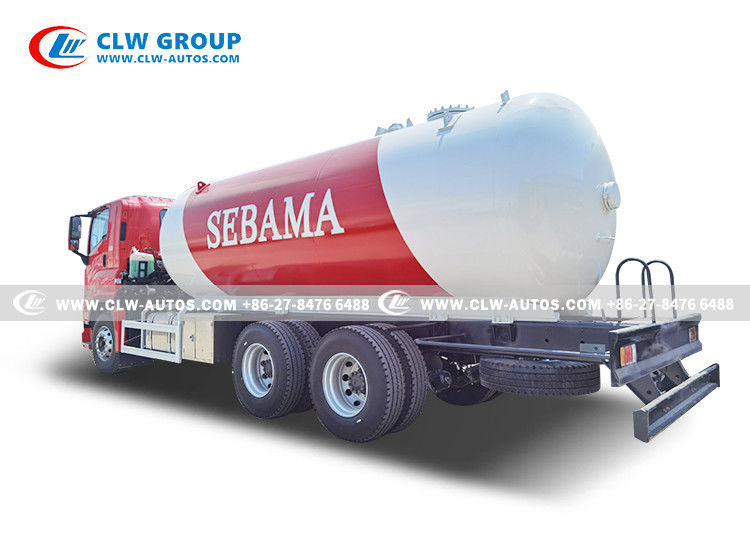

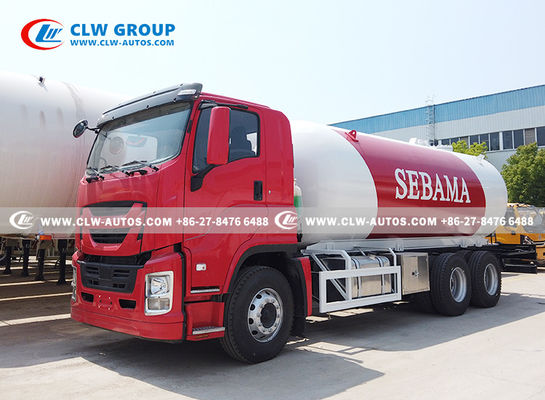

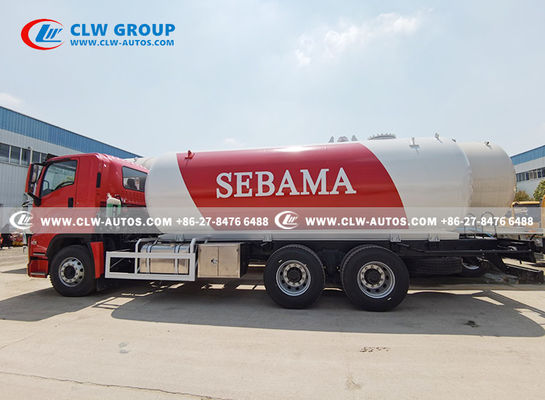

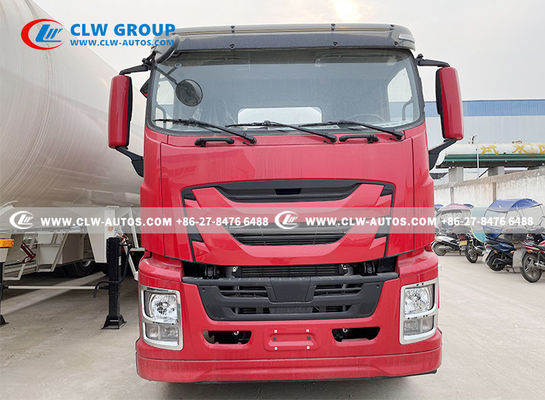

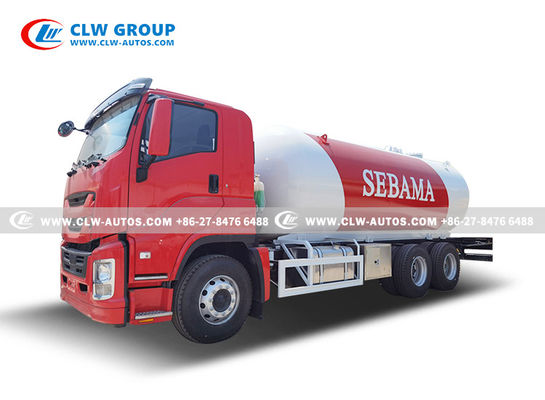

Reference Picture
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
