उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Driving model: | RHD, right Hand Drive | Chassis Brand: | Optional Sinotruk, Dongfeng, Foton, Shacman, Isuzu Garbage Compactor Truck |
|---|---|---|---|
| ईंधन प्रकार: | डीज़ल इंजन | सामग्री: | कार्बन स्टील कचरा कम्पेक्टर ट्रक |
| Volume: | 18cbm 18m3 14tonnes | बिक्री के बाद सेवा प्रदान की गई: | विदेशी तृतीय-पक्ष सहायता उपलब्ध, ऑनलाइन सहायता, वीडियो तकनीकी सहायता, मुफ़्त स्पेयर पार्ट्स, फ़ील्ड |
| ट्रक का प्रकार: | कॉम्पेक्टर रियर लोडर रीसाइक्लिंग रोल, कचरा कंप्रेसर, कचरा कॉम्पेक्टर | नाम: | कॉम्पेक्टर कचरा ट्रक, नए कचरा कॉम्पेक्टर ट्रक, बिक्री के लिए कचरा कॉम्पेक्टर ट्रक, कचरा कॉम्पेक्टर र |
| Loading Capacity: | 14tonnes,14t,14mt,14tons | Wheel Base: | 4625+1350mm Garbage Compactor Truck |
| प्रमुखता देना: | 14tons Waste Removal Truck,18m3 Sinotruk Howo Waste Removal Truck |
||
Upper body description:
1. 18cbm/18m3 tank volume
2. Carbon steel tank material
3. Side 5mm bottom 5mm thickness
4. Optional various types of garbage skip loader
Product advantages:
1. Frame structure
2. Sealing treatment to eliminate secondary pollution
3. Electric-hydraulic joint control
4. Hydraulic lift safety circuit
5. Automatic and manual operating system
6. Automatic control of engine power output
7. Advanced electronic control system
8. Convenient operation control
9. A variety of bucket (bucket) mechanisms
10. High quality imported components
Product specifications :
| Drive type | 6X4, New condition, RHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 9850*2500*3330 | |
| Wheel base (mm) | 4625+1350 | ||
| F/R Axle-Load | 7000/16000 kgx2, | ||
| Approach/departure angle | 20/12 | ||
| Curb weight | 9600 kg | ||
| GVW | 25000 kg | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | Sinotruk howo | |
| Type | 6 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 371hp | ||
| Emission standard | Euro2 | ||
| Gearbox | HW19710,10 forwards& 2 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 295/80R22.5, 10pcs with 1 spare | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Upper Body | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Thickness | Side 5mm, bottom 5mm | ||
| Garbage Box Volume | 18CBM/18000liters/18M3 | ||
| Remarks |
1. Color is optional 2.Customized LOGO painting as per customer reques |
||

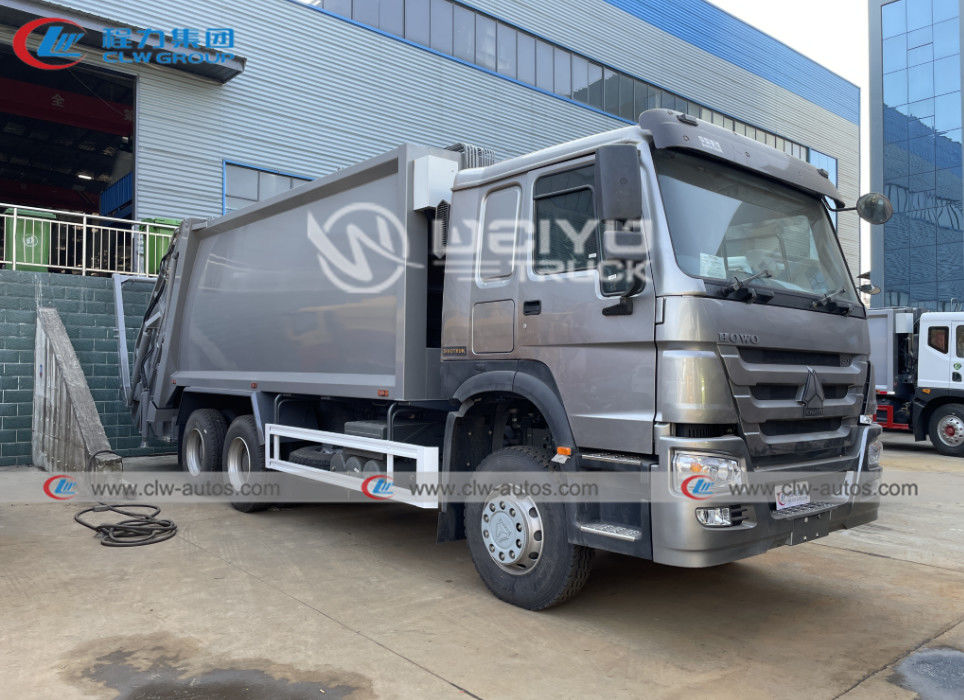

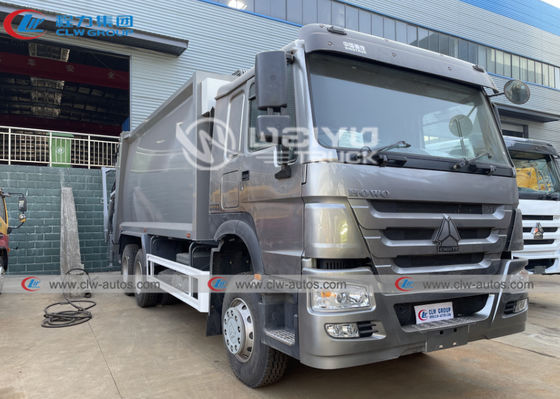

Reference photos:
1. Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
2. It is equipped with computer control system for loading and unloading operations.
3. One Person operate that can reduce sanitation working time and greatly improves the working environment.
4. It install computer control system and manual operation system in order to improve the vehicle using rate.

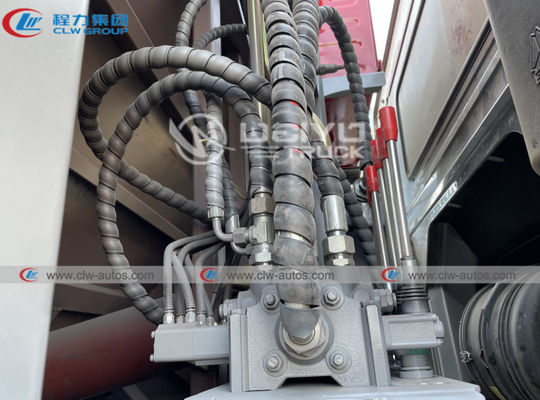

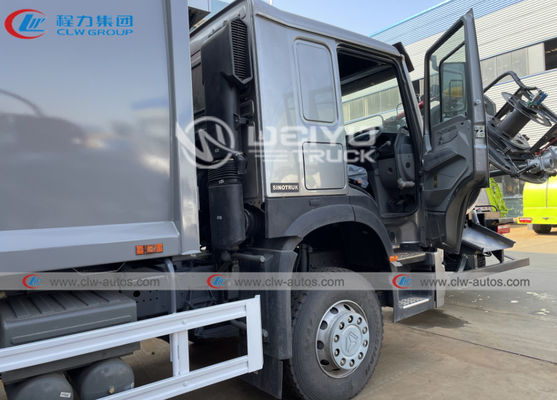

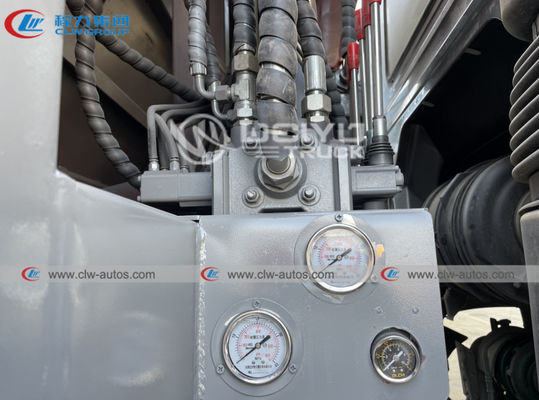

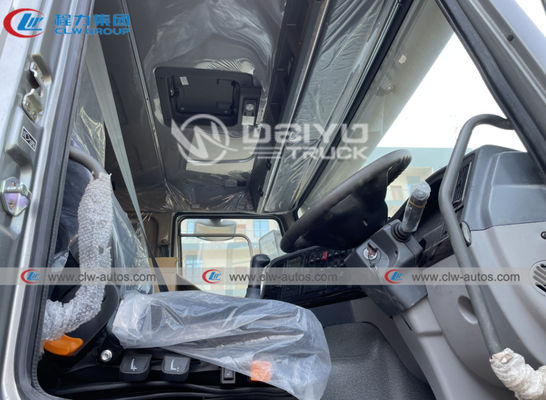

Detailed photos:
1.Hanging bucket trash hopper
2. All sealing large container
3. Swing arm container
4. Tri-angle container
