HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp

चीन HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD प्रमाणपत्र
चीन HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD प्रमाणपत्र
मैं अब ऑनलाइन चैट कर रहा हूँ

HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp

HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp
HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp

बड़ी छवि :  HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp

उत्पाद विवरण:

उत्पत्ति के प्लेस: सुइज़हौ, चीन
ब्रांड नाम: CLW
प्रमाणन: CCC ISO
Model Number: CLW202230438DIE

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा: 1 यूनिट
मूल्य: negotiable
पैकेजिंग विवरण: थोक जहाज द्वारा भेजा गया नग्न पैकेज
प्रसव के समय: अग्रिम भुगतान प्राप्त होने के 30 दिन बाद
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: 500 इकाइयाँ/महीना
विस्तृत उत्पाद विवरण
Driving model: RHD, Right Hand Drive Chassis Brand: Optional Sinotruk, Dongfeng, Foton, Shacman, Isuzu Garbage Compactor Truck
ईंधन प्रकार: डीज़ल इंजन सामग्री: कार्बन स्टील कचरा कम्पेक्टर ट्रक
Volume: 12cbm 12m3 9tonnes बिक्री के बाद सेवा प्रदान की गई: विदेशी तृतीय-पक्ष सहायता उपलब्ध, ऑनलाइन सहायता, वीडियो तकनीकी सहायता, मुफ़्त स्पेयर पार्ट्स, फ़ील्ड
ट्रक का प्रकार: कॉम्पेक्टर रियर लोडर रीसाइक्लिंग रोल, कचरा कंप्रेसर, कचरा कॉम्पेक्टर नाम: कॉम्पेक्टर कचरा ट्रक, नए कचरा कॉम्पेक्टर ट्रक, बिक्री के लिए कचरा कॉम्पेक्टर ट्रक, कचरा कॉम्पेक्टर र
Loading Capacity: 9tonnes,9t,9mt,9tons Wheel Base: 4200mm Garbage Compactor Truck
प्रमुखता देना:

12cbm Sanitation Garbage Compactor Truck

,

HOMAN Sanitation Garbage Compactor Truck

,

220hp Waste Removal Truck

HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp Waste Removal Truck

Truck Chassis Main Specification:

1. Sinotruk Homan H5 Cabin, With one bed and Air conditioner.

2. Diesel Engine, YC6J220-33B, 220HP, EURO-2.

3. Steering Wheel: RHD, Right Hand Drive

4. HW95508STC Transmission/Gearbox, Manual control, 8 forward & 2 reverse

5. Front Axle, 5.5Tons Capacity, 1 pieces; Rear Axle: 13Tons

6. Fuel Tanker: 300L

7. Tire: 11.00R20

Abvantage:

1.Change the dirty appearance of the city and eliminate the secondary pollution

2. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck

3. Easy Full Automatic Operation: electrical control system for loading and unloading operations

4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency

5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.



Exporting countries:

1. Asia: Nepal, Pakistan, India, Indonesia etc.

2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica,Tobago etc.

3. Africa: Kenya, Lesotho, Botswana, Seychelles, Mozambique, Namibia etc.

4. South Africa: Uganda, Zambia, Tanzania, Zimbabwe etc.



Product specifications :

Cabin Homan spacious cabin,
Right hand drive;
Single half row
2 Passenger allowed,
with A/C
Wheel Base 4200 mm
Front Axle 5500kg
Rear Axle 13000kg
Engine YUCHAI Diesel engine YC6J220-33B
Engine horsepower 220HP EURO2
Displacement 6494 mL (Diesel)
Rated Rotation Speed 2500 rpm
Engine type Six cylinder in-line vertical,
super charge inner cooling,
Four-stroke,
water-cooled,
direct injection,

Gearbox Manuel type
HW95508STC ,
8-speed forward and 2 reverse
Tire 11.00R20 (6 pcs with one spare)
Exhaust Pipe At front of Cabin for safety
Fuel box Aluminum alloy,300L
Garbage Truck Body
Tanker body material Quality high tensile Q345 carbon steel
Shape rectangular box, arc-shaped rear
Thickness Side 4mm, Bottom 5mm
Garbage Container Size 12CBM
Filling hopper volume 0.73 CBM
sewage box volume 0.6cbm
Working rotation speed 1400 r/min
Compaction ratio 0.75-0.8T/m³
Compacting cycle time 24~28 s
Tailgate lifting time 10~15 s
Tailgate lifting Angle 85~88 °
Unloading cycle time 60~75 s
Oil pump displacement 63 ml/r
Hydraulic oil box size 125 L
System pressure Max. 240 bar and working pressure 180~200 bar
PTO operation method Pneumatic
Operation and Control Both Automatic(Electrical) and Manual (hydraulic)




Detailed photos:

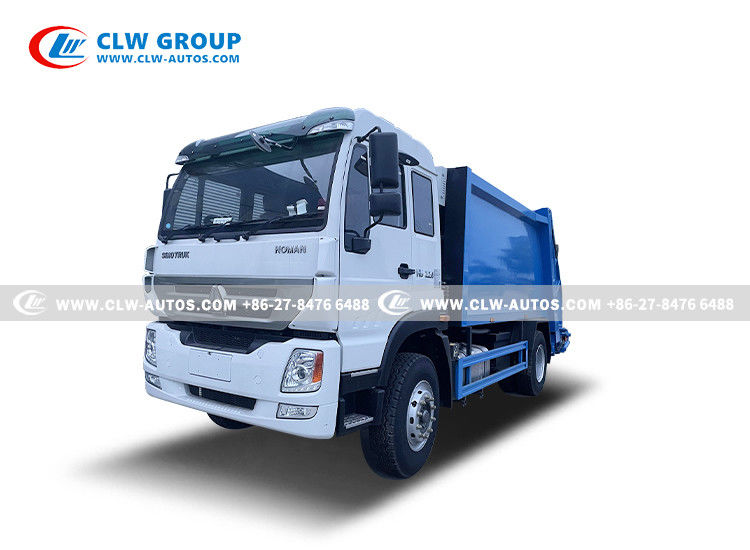

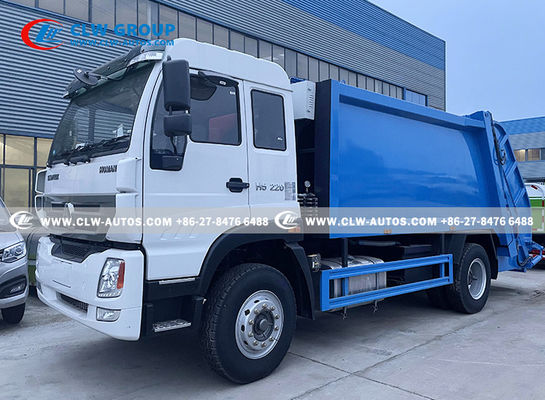

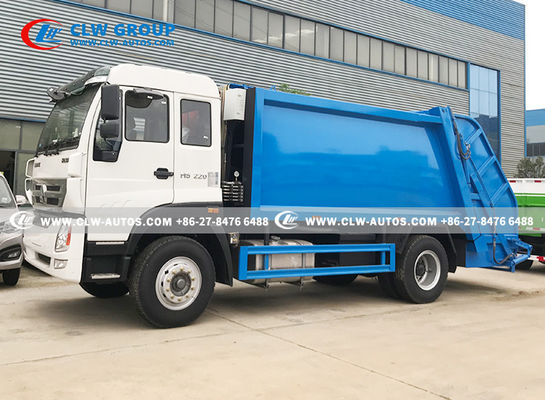

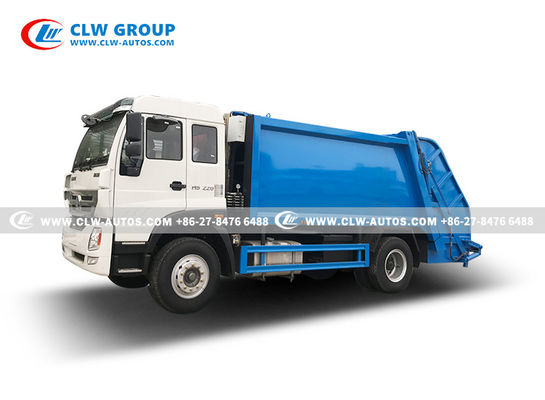

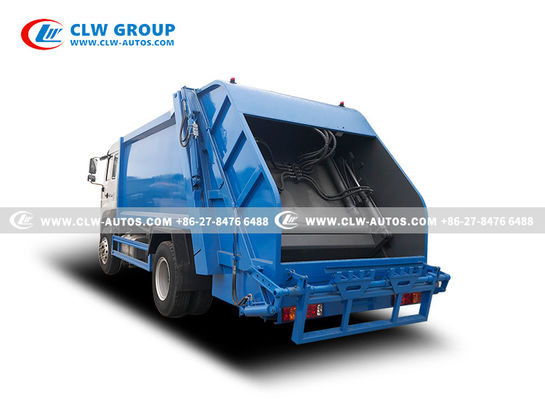

HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp 0

HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp 1



HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp 2

HOMAN 12cbm Sanitation Garbage Compactor Truck Right Hand Driving 220hp 3



Our advantages:

  • Certificate: ASM, ISO, BV, SGS, CCC etc.
  • More than 30 independents workshops for different types of trucks
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians and about 8000 staffs
  • 800kinds of trucks and semi-trailers with various functions
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • More than 100,000 trucks and semi-trailers annually.
  • Truck Sold to 90 countries
  • Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK, FOTON,FAW,BEIBEN,ETC
  • We can handle production of bulk order water trucks of tender and government purchase in required time
