उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| क्रेन ब्रांड: | सीएलडब्ल्यू ब्रांड | Max lifting capacity: | 6tons,6t,6mt |
|---|---|---|---|
| Drive model: | 4*2/6wheels | व्हीलबेस (मिमी): | 4800 मिमी |
| रंग और लोगो: | स्वनिर्धारित | Boom Type: | Stright type |
| Working Platform: | 360° rotation (left or right) | Chassis brand: | Foton Autman |
| कार्य त्रिज्या: | 12मी | Crane Weight: | 4316kg |
| GearBox: | नियमावली | अधिकतम उठाने की ऊंचाई: | 15 |
| Flatbed Dimensions: | 5750*2300*600mm | ||
| प्रमुखता देना: | Double H Hydraulic Outrigger Hoisting Truck,Foton 6t Truck Crane |
||
Brand: sell to people who understand it
Good product: always meet the right person
Good project: there will always be someone who knows how to do it
Good service: there will always be people who appreciate it
Product descriptions:
1. Crane Brand: Howo 6X4 right hand driving with 336hp
2. Heavy Duty Cargo box.
3. Using H type support leg, Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability.
4. Crane capacity of truck mounted: 10ton
5. 360° Rotation straight four arms
Product descriptions:
1. Crane Brand: Foton 4X2 left hand driving with 240hp
2. Heavy Duty Cargo box.
3. Using H type support leg, Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability.
4. Crane capacity of truck mounted: 6ton
5. 360° all hydraulic rotation straight four arms
Product advantages:
1. It is equipped with high-power engine with comfortable seat and low fuel consumption.
2. It is equipped anti-lock braking system with good driving stability.
3. Double-sided linkage operation, one-key operation of winch, support arm and flat plate
4. Explosion-proof performance: The old chassis is equipped with hydraulic drive winch, which has overload protection, impact protection and explosion-proof performance.
5. Stable and reliable: baffle plate is set on each side of the front end of the flat plate, which can prevent the vehicle from moving forward effectively.
Application Range:
Landscaping, power construction, high-speed rail, wind power bridges, plant relocation, material transportation, equipment relocation, road rescue etc.
Specification of Foton 6tonns crane truck
| General Technical Parameters | ||||
| Overall Dimension | 8255*2460*2820 (mm) | |||
| Gross Vehicle Weight | 15800kg | |||
| Curb Weight | 8935kg | |||
| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand | Foton | ||
| Cabin | Left Hand Driving, Remote front door lock, with A/C | |||
| ABS System | Equipped | |||
| Engine | Model | 6 Cylinders | ||
| Power | 240HP | |||
| Emission standard | EURO3 | |||
| Displacement | 7.25L | |||
| Fuel type | Diesel | |||
| Gearbox | 8 Forward & 2 Reverse Gear | |||
| Front and Rear Axle load | 5.5T/10T | |||
| Wheel base | 4800(mm) | |||
| Overhang( Front/Rear) | 1460/2350(mm) | |||
| Angle(Approach/departure) | 20/16(°) | |||
| Brake System | Air Brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 11R22.5, 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
| Flatbed | Flatbed dimensions | 5750*2300*600(mm) | ||
| Working System | Crane | Brand | Chinese Famous Brand | |
| Boom Type | Telescopic Boom | |||
| Max lifting weight | 6,000(kg) | |||
| Max lifting height | 15(m) | |||
| Max working range | 12(m) | |||
| Rotation angle | 360 degree full rotation | |||

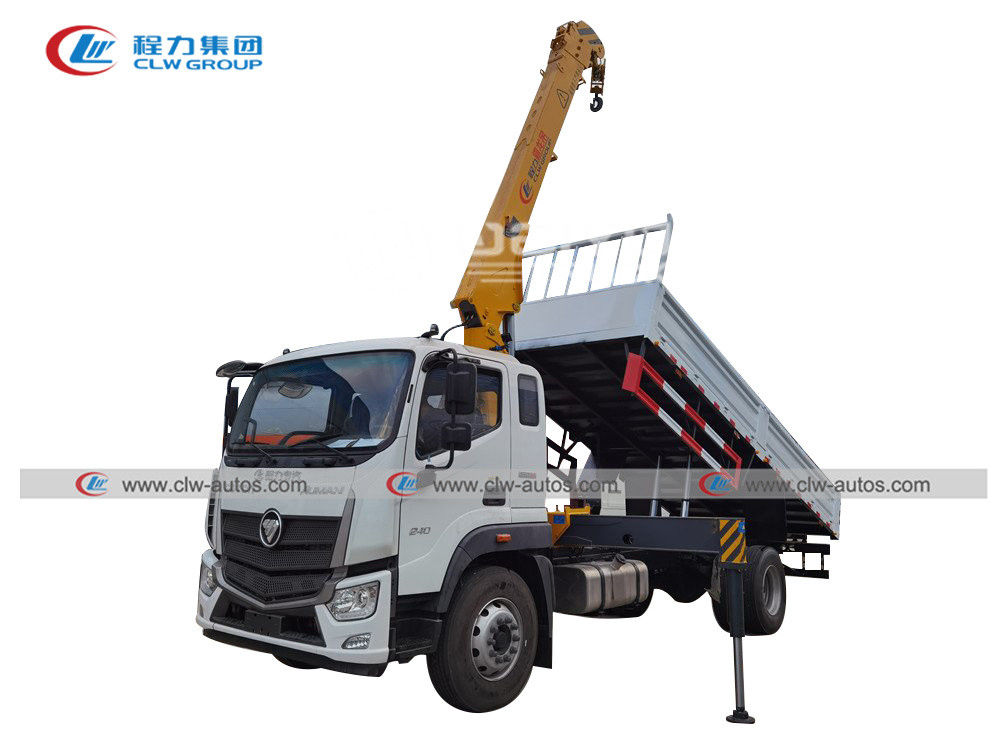

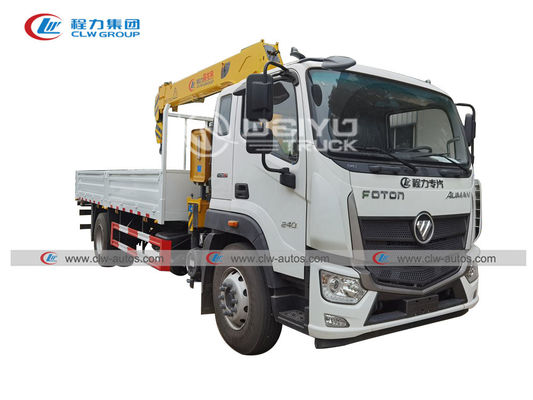

Reference photos:
