उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Driving model: | RHD, Right Hand Drive | Chassis Brand: | Optional Sinotruk, Dongfeng, Foton, Shacman, Isuzu Garbage Compactor Truck |
|---|---|---|---|
| ईंधन प्रकार: | डीज़ल इंजन | सामग्री: | कार्बन स्टील कचरा कम्पेक्टर ट्रक |
| Volume: | 12cbm 12m3 9tonnes | बिक्री के बाद सेवा प्रदान की गई: | विदेशी तृतीय-पक्ष सहायता उपलब्ध, ऑनलाइन सहायता, वीडियो तकनीकी सहायता, मुफ़्त स्पेयर पार्ट्स, फ़ील्ड |
| ट्रक का प्रकार: | कॉम्पेक्टर रियर लोडर रीसाइक्लिंग रोल, कचरा कंप्रेसर, कचरा कॉम्पेक्टर | नाम: | कॉम्पेक्टर कचरा ट्रक, नए कचरा कॉम्पेक्टर ट्रक, बिक्री के लिए कचरा कॉम्पेक्टर ट्रक, कचरा कॉम्पेक्टर र |
| Loading Capacity: | 9tonnes,9t,9mt,9tons | Wheel Base: | 4200mm Garbage Compactor Truck |
| प्रमुखता देना: | Sanitation Garbage Compactor Truck 220hp,Sinotruk Homan Garbage Compactor Truck 12m3 |
||
Truck Chassis Main Specification:
1. Sinotruk Homan H5 Cabin, With one bed and Air conditioner.
2. Diesel Engine, YC6J220-33B, 220HP, EURO-2.
3. Steering Wheel: RHD, Right Hand Drive
4. HW95508STC Transmission/Gearbox, Manual control, 8 forward & 2 reverse
5. Front Axle, 5.5Tons Capacity, 1 pieces; Rear Axle: 13Tons
6. Fuel Tanker: 300L
7. Tire: 11.00R20
Upper Garbage Box/Garbage Bins Main Specification:
1. Garbage Box: 12cbm, 12m3, 12 cubic meters.
2. Compaction Ratio: 0.75tons/cbm. Loading Capacity: 9tons
3. Equipped With hernetic dustbin, hydraulic system and operating system.
4. Automatic compress and uninstall, sewage can be collected by the sewage tank.
5. PLC control System: famous brand operate system.
Exporting countries:
1. Asia: Nepal, Pakistan, India, Indonesia etc.
2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica,Tobago etc.
3. Africa: Kenya, Lesotho, Botswana, Seychelles, Mozambique, Namibia etc.
4. South Africa: Uganda, Zambia, Tanzania, Zimbabwe etc.
Product specifications :
| Wheel Base | 4200 mm |
| Front Axle | 5500kg |
| Rear Axle | 13000kg |
| Engine | YUCHAI Diesel engine YC6J220-33B |
| Engine horsepower | 220HP EURO2 |
| Displacement | 6494 mL (Diesel) |
| Rated Rotation Speed | 2500 rpm |
| Engine type |
|
| Gearbox |
|
| Cabin |
|
| Tire | 11.00R20 (6 pcs with one spare) |
| Exhaust Pipe | At front of Cabin for safety |
| Fuel box | Aluminum alloy,300L |
| Garbage Truck Body | |
| Tanker body material | Quality high tensile Q345 carbon steel |
| Shape | rectangular box, arc-shaped rear |
| Thickness | Side 4mm, Bottom 5mm |
| Garbage Container Size | 12CBM |
| Filling hopper volume | 0.73 CBM |
| sewage box volume | 0.6cbm |
| Working rotation speed | 1400 r/min |
| Compaction ratio | 0.75-0.8T/m³ |
| Compacting cycle time | 24~28 s |
| Tailgate lifting time | 10~15 s |
| Tailgate lifting Angle | 85~88 ° |
| Unloading cycle time | 60~75 s |
| Oil pump displacement | 63 ml/r |
| Hydraulic oil box size | 125 L |
| System pressure | Max. 240 bar and working pressure 180~200 bar |
| PTO operation method | Pneumatic |
| Operation and Control | Both Automatic(Electrical) and Manual (hydraulic) |

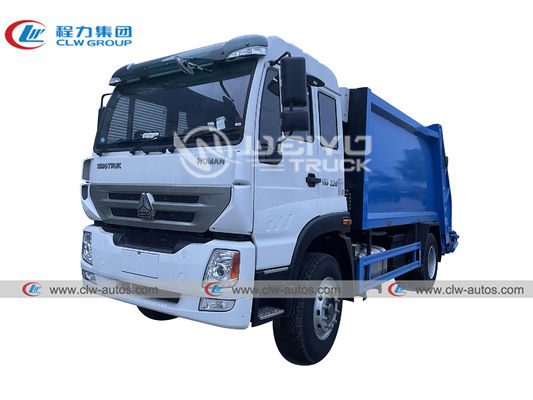

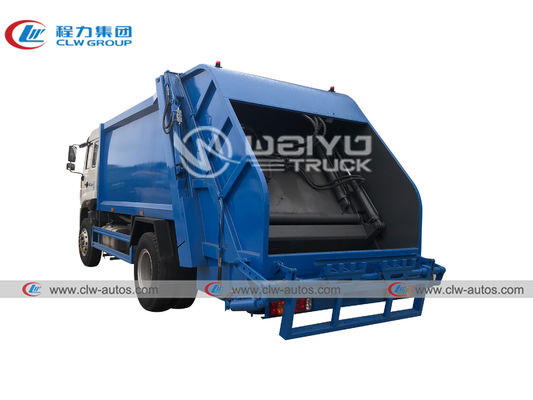

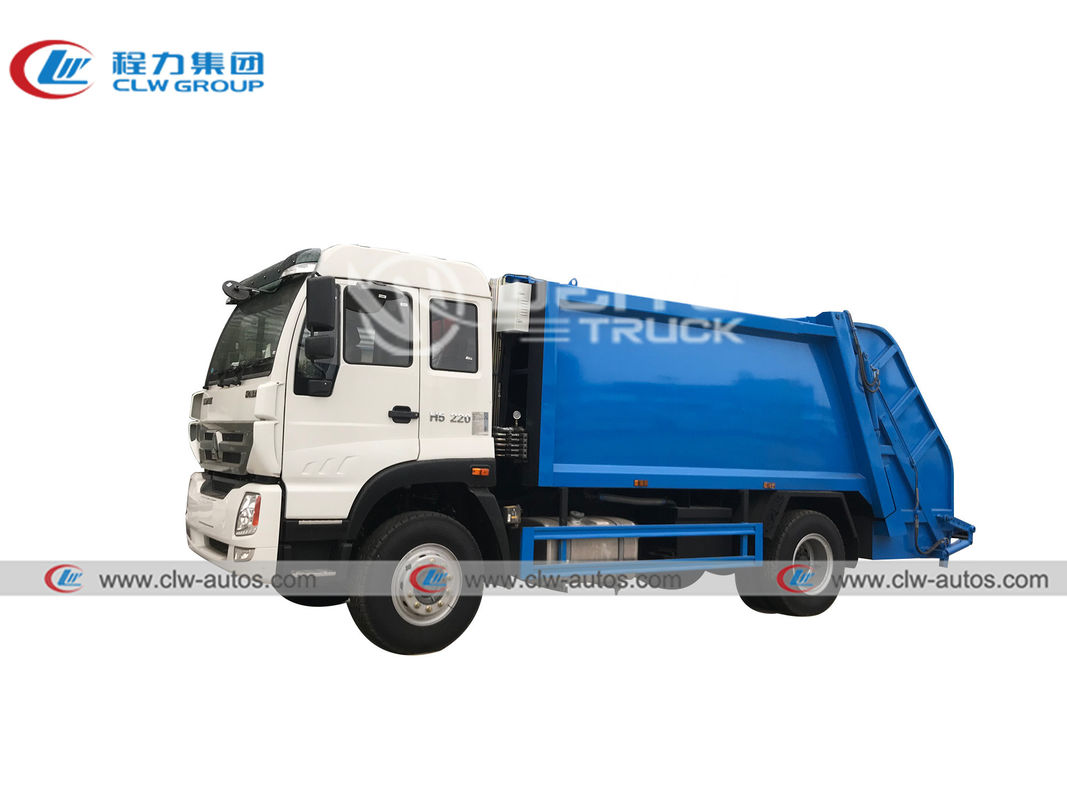

Detailed photos:
