उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ट्रेलर टैंक क्षमता: | 40m3-61.9m3 | संक्षारण भत्ता: | 1.0 मिमी |
|---|---|---|---|
| डिजाइन तापमान: | -19~50 डिग्री | टैंक सामग्री: | Q345r, Q370r, या SA516gr70, आदि। |
| एक्सल ब्रांड: | बीपीडब्ल्यू, फूवा, यॉर्क, आदि। | वजन नियंत्रण: | 15000kg |
| हाइड्रोलिक परीक्षण दबाव: | 2.1 एमपीए | भरने का कारक: | 420-590 किग्रा/एम3 |
| थका देना: | 12R22.5 | उष्मा उपचार: | संपूर्ण टैंक |
| वायु जकड़न परीक्षण: | हाँ | हाइड्रोलिक परीक्षण: | हाँ |
| जीवनभर: | 20 वर्ष | रंग और लोगो: | स्वनिर्धारित |
| गारंटी: | 1 वर्ष | ||
| प्रमुखता देना: | Jost Outrigger LPG Gas Semi Trailer,25t LPG Gas Semi Trailer |
||
Product Description:
1. 12740*2480*3800 overall dimensions
2. 25tonns tank volume with Q345 carbon steel tank material
3. 1.61 design pressure and 2.22 Hydraulic Test pressure
4. Jost outrigger, 3*13T BPW axles
5. lpg accessories: Manhole, Safety Valve, Level Gauge, Emergency Cut-off Valves, Ball Valve,Liquid Gauge,Thermometer, Pressure Gauge
Application range:
--used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.'
--We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
--Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
--Optional accessories: ROCHESTER level gauge, volume and mass flow meter(LC or Neptune brand), sun shelter, lpg pump, lpg dispenser machine, filling hose,
--Quick in and flange type liquid or vapour phase
--FUWA, L1, YORK, BPW axles
Factory Specification of 25 tons lpg bridger truck
| Tanker Essential Information | ||
| Volume of Tank (cbm) | 49.6 | |
| Overall Dimensions(L*W*H)(mm) | 12740*2480*3800 | |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12354 | |
| Estimated Tare Weight (kg) | 15300 | |
| Payload(kg) | 20832 | |
| Total Weight(kg) | 36132 | |
| Wheelbase(mm) | 6800+1320+1320 | |
| Shell of Tanker | ||
| Products | Liquefied Petroleum Gas (propane) | |
| Fluid Property | Flammable | |
| Design Temperature(ºC) | 50ºC | |
| Design Pressure(MPa) | 1.61 | |
| Corrosion Allowance(mm) | 1.00 | |
| Weld Joint Factor | 1 | |
| Major Materials of Bearing Pressure | Tanker body:Q345,12mm, | |
| End plate:Q345R,12mm | ||
| Main beam:16Mn | ||
| Detection | ||
| Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC | |
| Flaw Detection | 100% Flaw detection | |
| Test Pressure(MPa) | 1.61 | |
| Hydraulic Test(MPa) | 2.1 | |
| Magnaflux Inspection | Aim at welding place that flaw detection can not cover | |
| Manhole (As Customer's Requirement) | ||
| Quantity | 1;on top | |
| Size | DN450 | |
| Safety Valve(As Customer's Requirement) | ||
| Quantity | 2 | |
| Location | On the top of tanker | |
| Size | DN80 | |
| Level Gauge | ||
| Type | Manuel Switch type | |
| Location | At the rear of the end dish | |
| Running System | ||
| Axles | 3*13T BPW | |
| Tire | 12R22.5 Tubeless tire ,8 with one spare tire | |
| Landing leg | JOST | |
| King Pin | #50 or #90 | |
| Control System | ||
| Emergency Cut-off Valves | 2 or 3 | |
| Ball Valve | 4 or 6 | |
| Liquid Gauge | 1 | |
| Pressure Indicating Thermometer | 1 | |
| Pressure Gauge | 1 |
|

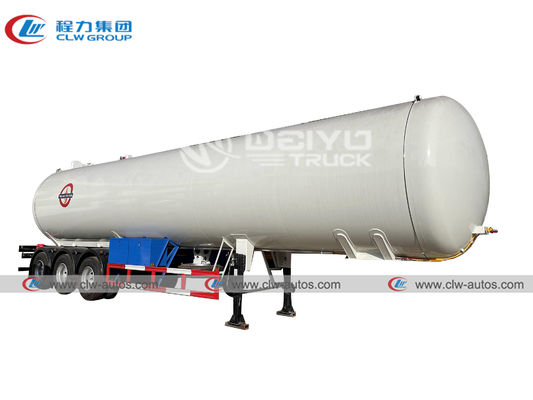

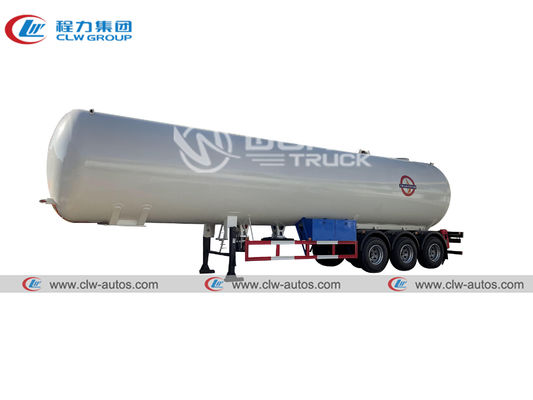

Reference photos:
Main Structure Diagram
Why choose us:
Key words:
LPG semi-trailer, LPG semi trailer, liquefied gas semi-trailer, liquefied gas tank semi-trailer, liquefied gas tank semi-trailer, liquefied petroleum gas transport semi-trailer, liquefied petroleum gas semi-trailer, LPG tanker semi trailer. It is a special transport semi-trailer for transporting liquefied gases such as propane, propylene, dimethyl ether, liquid ammonia, methylamine and acetaldehyde.
