| Brand: | HOWO,FAW,ISUZU,Dongfeng,FOTON, JAC, JMC, SHACMAN | Material: | High intense carbon Steel,Q235 |
|---|---|---|---|
| मोटाई: | साइड 3 मिमी और निचला 4 मिमी | Garbage bin size: | 8cbm,8m3 |
| पहिये का आधार: | 3800 मिमी | Horsepower: | 116HP, Yuchai |
| हाइड्रोलिक पंप: | चीनी प्रसिद्ध ब्रांड | नियंत्रण प्रणाली: | सीमेंस ब्रांड संचालन प्रणाली। |
| गारंटी: | 1 वर्ष | Logo: | Customized painting and logo |
| ऑपरेशन वीडियो: | हाँ | Shipment: | bulk shipping or roll roll |

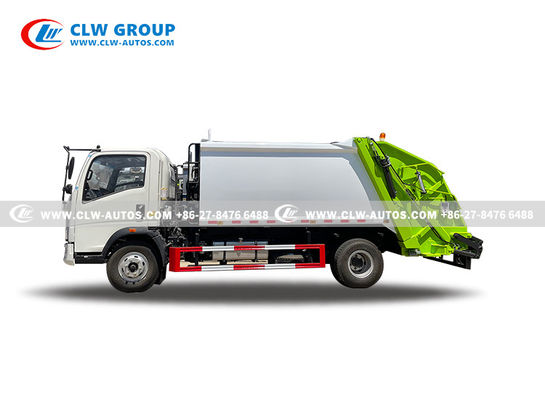

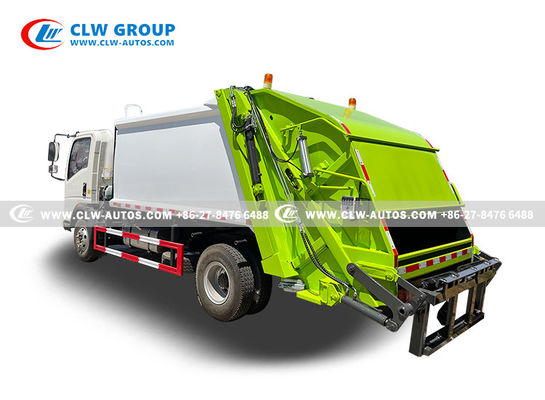

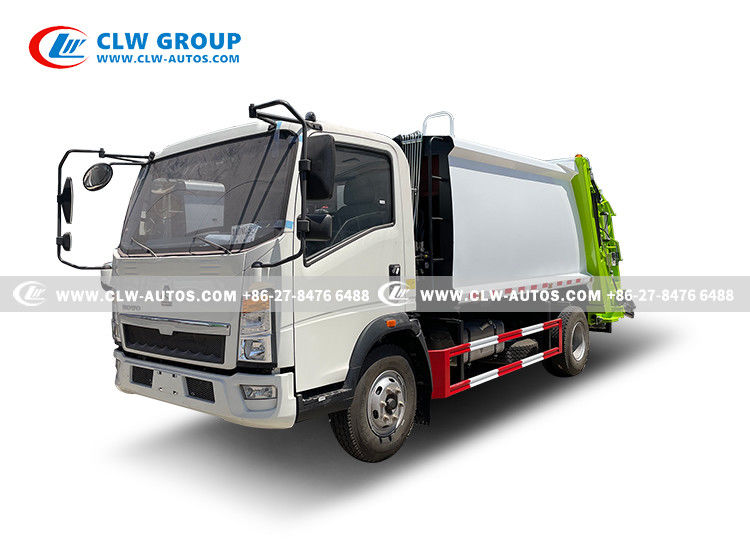

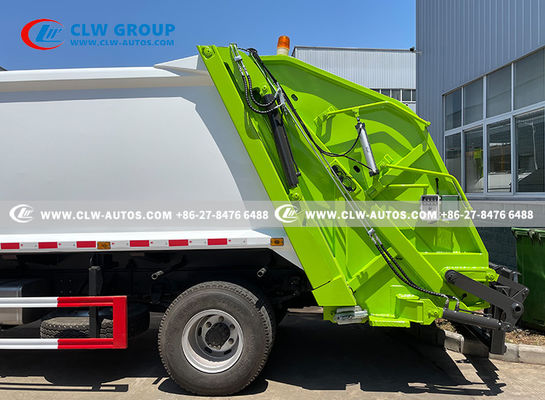

| प्रमुखता देना: | SINOTRUK HOWO 8 Waste Compactor Truck,Compressed garbage truck,Rear Loader Waste Compactor Truck |
||
Product Description
Waste compactor truck, which also known as garbage compactor truck, compressed garbage truck, compression refuse truck,.it is the most popular garbage collection truck. With compression mechanism, it highly increased the loading capacity of domestic waste. They can be mounted with different lifting system in different capacity.
| HOWO 8CBM Waste Compactor Truck | ||||
| Condition | New condition/LHD/RHD/4x2 | |||
| Chassis | Brand | HOWO | ||
| Curb weight(kg) | 6095 kg | |||
| Wheelbase(mm) | 3800mm | |||
| Dimensions(mm) | 7000*2320*2900 mm | |||
| Axle Load(kg) | 2400/4200 kg | |||
| Max. driving speed(km/h) | 90 km/h | |||
| Clutch | Reinforced diaphragm clutch | |||
| Brakes | air brake | |||
| Steering Gear | Power assistant | |||
| Tire | Number | 6pcs with one spare tire | ||
| Specifications | 7.50R16 nylon tire | |||
| Transmission | 6 Forwards and 1 Reverses | |||
| Cabin | It can accommodate three people, With Air conditioner | |||
| Engine | Brand | Yunnei | ||
| Power(kw)/Horsepower/(HP) | 85kw/116 HP | |||
| Emission standard | Euro III | |||
| Upper Body | ||||
| Item No. | Parameters | |||
| Volume Capacity(Garbage) | 8.0 CBM | |||
| Thickness of the tank | 4mm for the bottom and 4mm for the side carbon steel | |||
| Sewage tanker(L) | 200L | |||
| Tailgaete volume | 700L filling structure | |||
|
Specification |
Rated Pressure of Hydraulic system: 16 Mpa Filling time of loding system :8-10s Working cycle of Loading system: 50-60 s Working cycle of the unloading system: 30-40 s Compress ratio:2.5:1 |
|||
|
Equipment |
Equipped with hermetic dustbin, hydraulic system and operating system. ◆ Automatic compress and uninstall, sewage can be collected by the sewage tank. ◆ PLC control system: Siemens brand operate system. |
|||
| Painting and Logo | As customer’s requirement | |||
| Other detail |
China Famous brand and quality hydraulic pump, Multiple way valve, Tilt plate oil cylinder, Tail gate cylinder, Scraper cylinder, Slide plate cylinder, Push plate cylinder. |
|||
Compactor Carbage Truck Production Process
1.English User Manual
2.English Operation Video to teach new users step by step
3.Online video training whenever needed
4.Spare parts at factory price whenever needed
5.One year warranty for engine, gear box and axle
