उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Brand: | FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW | Function: | Garbage compactor, waste removal |
|---|---|---|---|
| सामग्री: | कार्बन स्टील Q235B | मोटाई: | साइड 3 मिमी और निचला 4 मिमी |
| Tank volume: | 6cbm/6000Liters/5tons | पहिये का आधार: | 3308 मिमी |
| घोड़े की शक्ति: | 115hp | हाइड्रोलिक पंप: | चीनी प्रसिद्ध ब्रांड |
| नियंत्रण प्रणाली: | सीमेंस ब्रांड संचालन प्रणाली। | गारंटी: | 1 वर्ष |
| नियंत्रण: | नियमावली नियंत्रण | Logo&painting: | Customized |

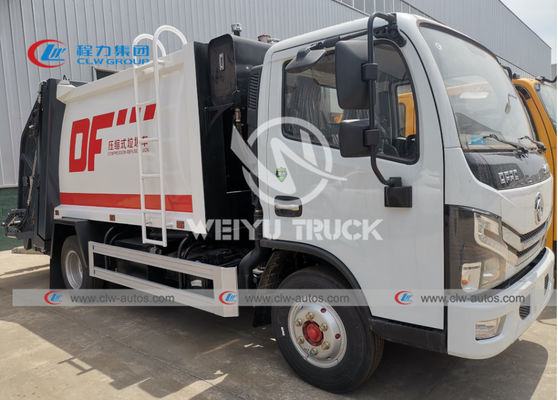

| प्रमुखता देना: | ISO/CCC Garbage Compactor Truck |
||
Product Descriptions:
1) Tank material:Q235 Carbon steel, anti-corrosive
2) Components of garbage trcuk: hermitical garbage box, hydraulic system and operating system
3) Ways of control: Manual control and Automatic control
4)Load operation time: less than 30 seconds
5) Unloading operation time : less than 45 seconds;
6) Optional rear flip mechanism:
* Hanging iron barrel type turning mechanism
*Swing arm type turning mechanism
*Semi-sealed garbage bucket/dustpan type turning mechanism
*Fully sealed garbage bucket turning mechanism
Key Features:
---- Dongfeng chassis, perfect performance
---- YUCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 22 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Product Specifications
| Truck Chassis Specification | |||
| Chassis model | Dongfeng | ||
| Cab | single row cab | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 110 | ||
| Overall dimension(mm) | 5875×1882×2225 | ||
| GVW( kg) | 4290 | ||
| Mass in working order ( kg) | 2390 | ||
| Wheelbase(mm) | 3308 | ||
| F/R overhang (mm) | 1061/1506 | ||
| Approach/Departure Angel | 24/16 | ||
| Tire | 7.00R16 6PR | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 6 Forwards & 1 Reverse | ||
| Bridge | Front axle | 2.2T | |
| Rear axle | 3.5T | ||
| Enging | Model | YC4FA115-50 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 2999 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | Material : Q235,Thickness :3(mm) side /4(mm) rear | ||
| Dirty tank volume | 6cbm/6000Liters/6M3/5tons | ||
| Filler volume | 500L | ||
| Filing time(s) | 8~10s | ||
| Filling cycle time(s) | 50~60s/once | ||
| Discharge type | Rear Discharging | ||
| Time for Discharging | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and electrical control | ||
Reference photos
Diagram of compactor garbage truck
Main parts of garbage truck
Factory overview
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
