उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Brand: | FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW | Function: | Garbage compactor, waste removal |
|---|---|---|---|
| सामग्री: | कार्बन स्टील Q235B | Thickness: | Side 4 mm and Bottom 4 mm |
| Tank volume: | 14cbm/14000Liters/14m3/ 12tons | पहिये का आधार: | 4700 मिमी |
| घोड़े की शक्ति: | 170hp | हाइड्रोलिक पंप: | चीनी प्रसिद्ध ब्रांड |
| नियंत्रण प्रणाली: | सीमेंस ब्रांड संचालन प्रणाली। | गारंटी: | 1 वर्ष |
| Control: | Both manual and electric control | रंग: | स्वनिर्धारित |
| कैम्पैक्टिंग अनुपात: | 0.8-0.9 टन/एम3 | संक्षिप्तीकरण अनुपात: | ३-४ |
| Unload Garbage Time: | No More Than 23s | ||
| प्रमुखता देना: | 4*2 Rear Loader Compressed Garbage Truck |
||

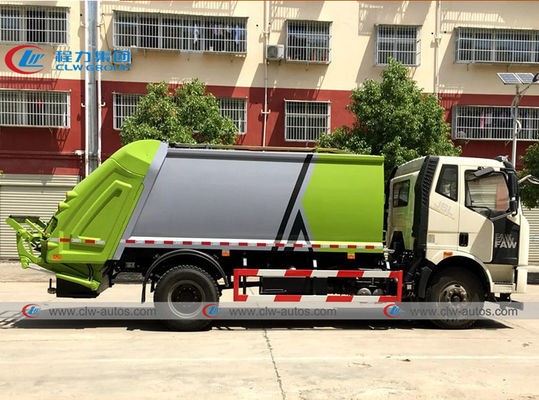

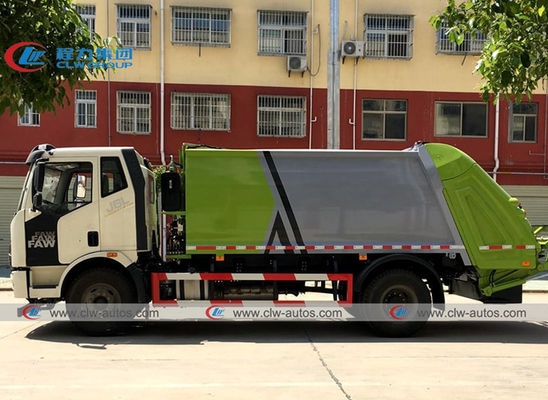

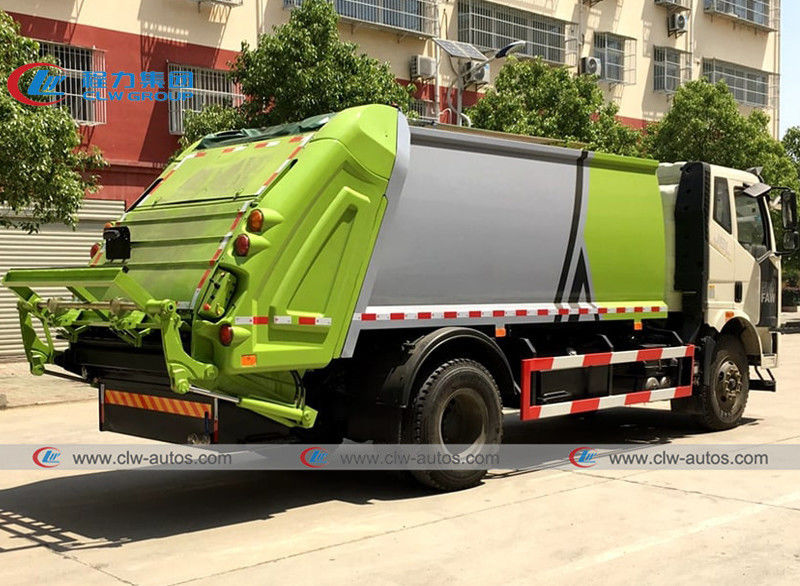

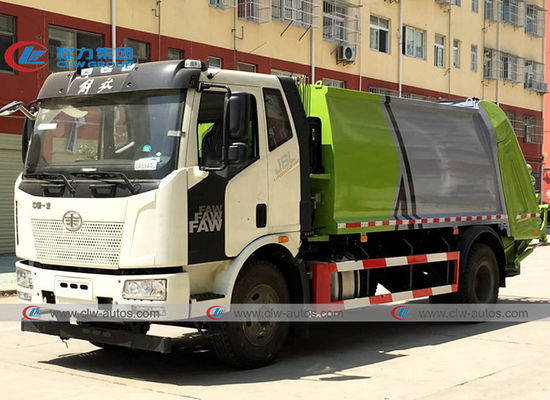

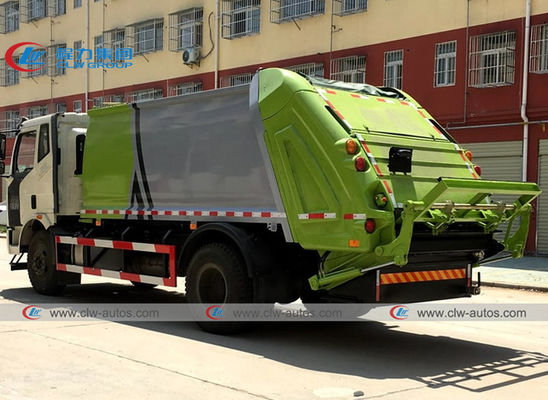

FAW brand 4*2 14m3 Rear Loader Compressed Garbage Truck
Product Descriptions
Product Advantages
1. Hydraulic system, including the control valve, oil cylinder, connecting pipeline and other key parts, has advanced structure, reliable performance, simple operation and convenient maintenance.
2. Advanced electric control system adopts imported PLC integrated control, mechatronics-hydraulic integrated control, and high degree of automation.
3. The pushing plate control valve is equipped with a back pressure valve, which can highly improve the loading efficiency.
4. The beautiful streamlined appearance design, and the upper body adopts special high-strength anti-corrosion steel plate, which extends the service life of the truck.
5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Product Specifications
| Truck Chassis Specification | |||
| Chassis model | CLW | ||
| Cab | FAW row half cab | ||
| Driving Type | 4*2 Left or right hand driving | ||
| Max Speed (km/h) | 103 | ||
| Overall dimension(mm) | 8380×2550×2580 | ||
| GVW( kg) | 14060 | ||
| Mass in working order ( kg) | 9440 | ||
| Wheelbase(mm) | 4700 | ||
| Front / Rear Axle( kg) | 4860/9200 | ||
| Tire | 8.25R20, 6+1 pcs | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 6-speed | ||
| Enging | Model | Cummins 170hp | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke, direct injection, turbocharged | ||
| Braking system | Service Brake | Oil brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | Material : Q235, Thickness :4(mm) side /5(mm) rear | ||
| Dirty tank volume | 14cbm/14000Liters/14M3 | ||
| Filler volume | 500L | ||
| Filing time(s) | 8~10s | ||
| Filling cycle time(s) | 50~60s/once | ||
| Discharge type | Rear Discharging | ||
| Time for Discharging | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and electrical control | ||
Main structure
M
Diagram of compactor garbage truck
Main parts of garbage truck
Factory overview
