उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Truck Brand: | Sinotruk HOWO,Dongfeng,Foton,Shacman,JAC,JMC,ISUZU | इंजन: | कमिंस ब्रांड |
|---|---|---|---|
| Tank Material: | Q345r or Q370r | Tank Volume: | 15m3,15000liters, 15cbm |
| प्रवाह मीटर: | विस्थापन प्रवाह मीटर | Filling dispenser: | Single filling nozzle |
| पंप ब्रांड: | वैकल्पिक | निर्वहन वाल्व: | 1'', 2'', 3'' निकला हुआ किनारा प्रकार |
| Level Gauge: | Manual Rotation, Float Ball, Rochester, Magnetic flap | Usage: | Cylinder refilling, |
| Warranty: | One year for major parts | Logo& Painting: | Customized |
| प्रमुखता देना: | Right Hand Drive LPG Dispenser Truck,15m3 LPG Dispenser Truck |
||

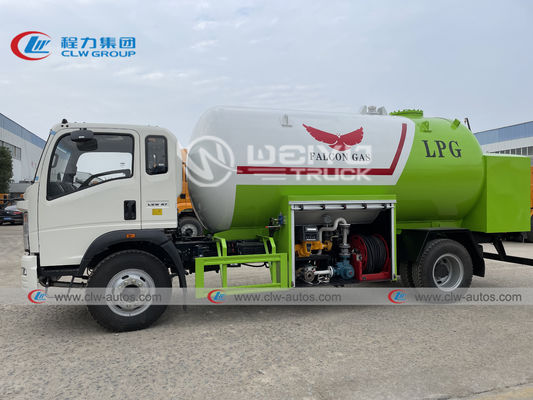

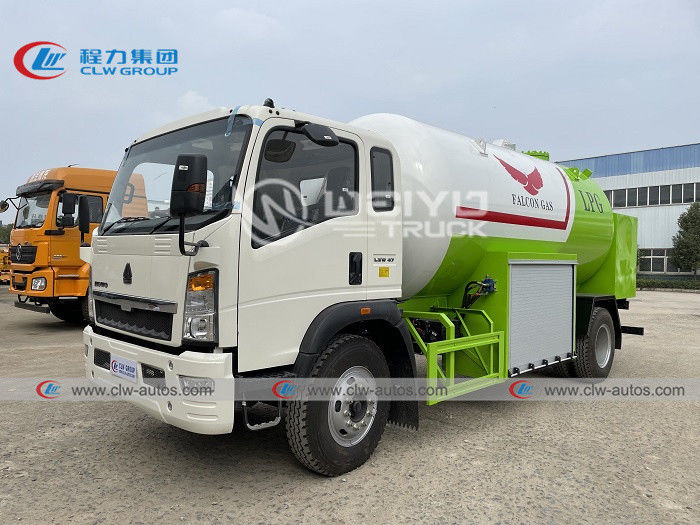

15m3 Right Hand Drive LPG Dispenser Truck LPG Refill Truck For Zambia
Product Description
Truck Specifications
| Item No. | Parameters |
| Cabin | HOWO Cabin, 3 passengers allowed, with A/C |
| Overall Dimension | 8195x2370x2550 mm |
| Driving Model | Right hand driving |
| Gross Vehicle Weight | 13490 kg |
| Curb Weight | 4245kg |
| Payload | 9245 kg |
| F/R Axle Loading | 4350/9140 kg |
| Wheel Base | 4700 mm |
| Front/rear Tread | 1240/2255 mm |
| Approach/Departure Angle | 17/25 degree |
| Engine | Cummins Brand |
| Engine horsepower | 156 HP |
| Displacement | 3760mL (Diesel type) |
| Max Driving Speed | 95 km/h |
| Gear Box | 6 forward and 1 reverse |
| Tire | 10R22.5 (6 pc with 1 spare) |
| LPG tank | |
| Volume: | 15cbm/15000Liters |
| Tank material: | Q345R/Q370R |
| Tank diameter: | 1800mm |
| Tank thickness: | 10mm |
| End plate | 12mm |
| Tank length: | As designed |
| Gas phase | DN25 or DN50 or customized |
| Liquid Phase | DN50 or DN80 or customized |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Hydraulic Testing Pressure | 2.21Mpa |
| Working Temperature | -20~50 ºC |
| Design Code | GB150.1~2011 |
Our Factory
Our advantages
CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
