उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Tank Material: | Q345R Q370R Q420R Carbon steel for pressure vessel | Loading Capacity: | 20 TONS, 25 TON, 30 TONS, 40 TONS, 50 TONS, 60 TONS |
|---|---|---|---|
| Tank Size: | 50m3, 50cbm, 50000liters, 50000L | डिजाइन दबाव: | 1.71एमपीए 1.77एमपीए 17.1बार, 17.7बार |
| हाइड्रोलिक परीक्षण दबाव: | 2.21एमपीए 22.1बार | Filling Medium: | Propane, Butane, LPG, Cooking Gas |
| Level Gauge: | Magnetic Plate Level Gaue, Float-Ball, Rotor Level Gauge | व्यास: | 2700 मिमी |
| TONS: | 50000L, 50cbm,50000liters, 50m3, 25tons, 25 ton | ||
| प्रमुखता देना: | LPG Gas Storage Tank 50000L,Carbon Steel LPG Gas Storage Tank,ASME Lpg Tanks For Trucks |
||

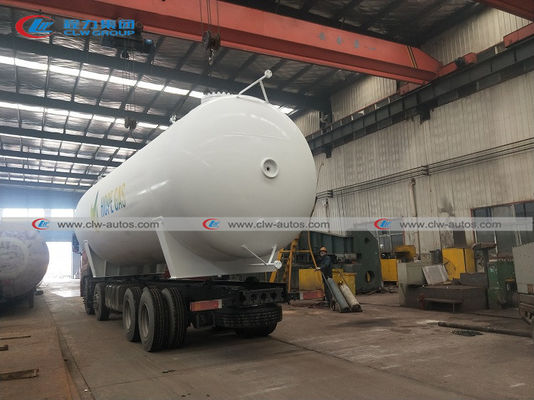

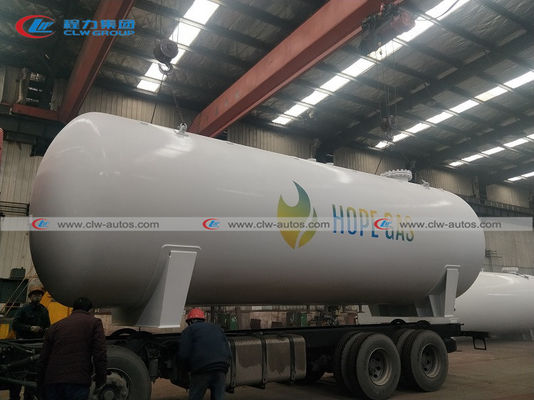

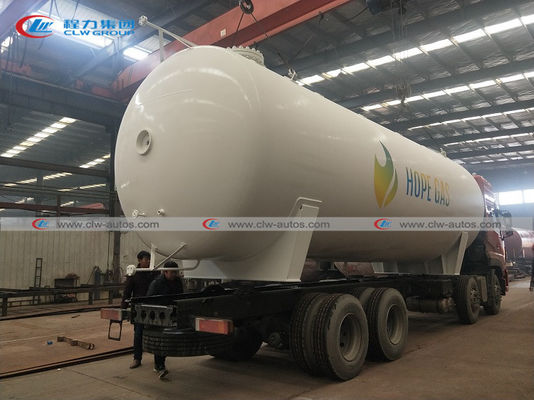

ASME 50000L 25MT DN2700mm Diameter Head 16mm Q345R Carbon Steel LPG Gas storage
Product Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
4. LPG storage tank capacity: 5-200m3 (Customized)
5. LPG storage tank material: Q345R Q370R SA516 SA517
6. Corrosion Resistance Painting: 2 Times
7. Surface Painting: 1 Time (color is customized)
Technique Parameter for 500000 Liters 25tons lpg storage tank
| tem | Unit | Parameter |
| Product Name | Liquefied Gas Storage Tank | |
| Design/manufacture code | GB150, ASME is for option | |
| Overall dimensions | mm | 9182*2728*3318 |
| Tank Dimension | DN2700 | |
| Tank material | Q345R | |
| Loading weight | Kg | 19950 |
| Tank weight | kg | 10640 |
| Working pressure | Mpa | ≤1.6 |
| Testing hydraulic pressure | 2.12 | |
| Testing pressure for gas density | 1.77 | |
| Test pressure | 1.69 | |
| Air tight test pressure | 1.69 | |
| Safety valve popping pressure | 1.68 | |
| Working temperature | ºC | ≤50 |
Accessory list for 50,000l lpg storage tank
| Accessories List | |||||
| Parts No | Size | Parts Name | Model No. | Quantity | Unit |
| a | DN50 | Cut-off Valve for Drain Outlet | J41N-2.5-50 | 1 | set |
| b | DN80 | Cut-off Valve for Liquid Phase Outlet | J41N-2.5-80 | 1 | set |
| c1 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 | 1 | set |
| c2 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 | 1 | set |
| d | DN80 | Cut-off Valve for Liquid Inlet | J41N-2.5-80 | 1 | set |
| i | DN50 | Cut-off Valve for Air Drain Outlet | J41N-2.5-50 | 1 | set |
| h | DN80 | Cut-off Valve for Safety Valve | J41N-2.5-80 | 1 | set |
| f1 | DN25 | Cut-off Valve for Magnetic Level Gauge | J41N-2.5-25 | 1 | set |
| f2 | DN25 | Cut-off Valve for Magnetic Level Gauge | J41N-2.5-25 | 1 | set |
| e | M33*2 | Thermometer | WTQ-280 | 1 | set |
| g | M20*1.5 | Pressure Gauge | Y-100T | 1 | set |
| / | / | Magnetic Level Gauge | HG21584-95 | 1 | set |
| / | DN80 | Safety Valve | A42F-25 | 1 | set |
| M20×1.5 | Needle Valve | J24W-320-DN6 | 1 | set | |
| Total Quantity | 14 | ||||
Product Advantage
5. High quality domestic or imported safety accessories for user to choose
Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
