उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सामग्री: | Q235 कार्बन स्टील | मोटाई: | 5 मिमी |
|---|---|---|---|
| ईंधन: | डीज़ल | ड्राइविंग प्रकार: | 4*2, बाएँ/दाएँ हाथ से ड्राइविंग |
| पंप करना: | चीन प्रसिद्ध ब्रांड/अंतर्राष्ट्रीय ब्रांड | सक्शन ऊंचाई: | 7 मीटर |
| वॉटर कैनन रेंज: | 30 मीटर | छिड़काव की चौड़ाई: | 14 मीटर |
| ऑपरेटिंग वीडियो: | हाँ | मैनुअल का प्रयोग करें: | हाँ |
| फ्रंट स्प्रे और रियर स्प्रे: | हाँ | गारंटी: | एक वर्ष |
| प्रतीक चिन्ह: | ग्राहक के अनुरोध के अनुसार | ||
| प्रमुखता देना: | 12cbm High Pressure Water Sprinkler Truck,170Hp Dongfeng Water Sprinkler Truck |
||

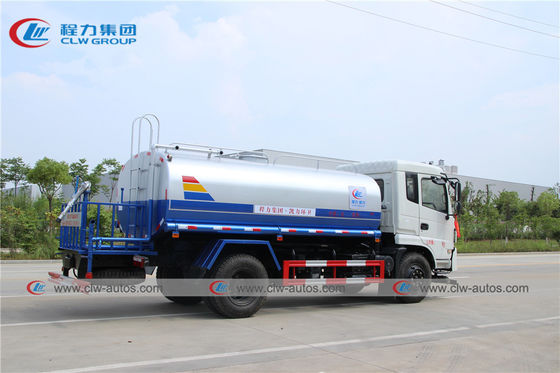

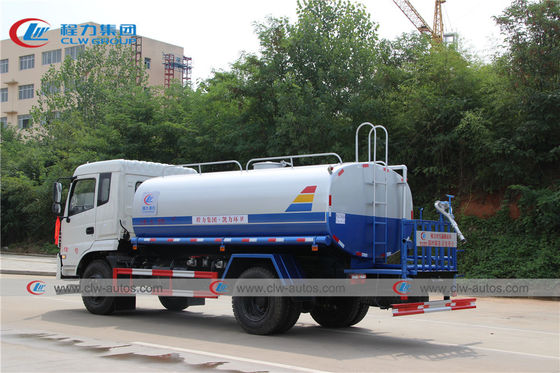

170 hp Dongfeng 12cbm Water Sprinkler Truck With High Pressure Water truck
Product Description
1. Working sence :
2. Functions:
3. Advanced facilities
4. Material of portable water truck :
5. Sprinking Width of portable water truck :＞14M
6. Rear working platform with water cannon range of portable water truck :30 meters
Specifications of Dongfeng 4X2 12tons/12cbm water bowser truck
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | Dongfeng | |
| Curb weight(kg) | 5495 kg | ||
| Gross weight(kg) | 12495 kg | ||
| Wheelbase(mm) | 4200 mm | ||
| Dimensions(mm) | 7900*2480*2900 mm | ||
| Front Loading Capacity (Ton) | 4750 | ||
| Rear Loading Capacity (Ton) | 7745 | ||
| Max. driving speed(km/h) | 100 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 9.00R20 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cabin | Single row seat, Tiltable. It can accommodate two people. With air conditioner. | ||
| Engine | Brand | CUMMINS | |
| Fuel type | Diesel | ||
| Power(kw) | 125 kw | ||
| Horsepower(HP) | 170 HP | ||
| Cylinder number | 4 | ||
| Emission standard | Euro 3 | ||
| Upper | |||
| Water tank | Capacity(cbm/tons) | 12 | |
| Tank Dimension(mm) | 4200*2000*1500 | ||
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 5 | ||
| Water pump | China local brand | ||
| Suction Height | 7 meters | ||
| Function | 1, Front Side Rear Sprinkling width≥ 14m | ||
| 2, Water cannon range≥ 28m | |||
| Remarks | 1. AM/FM radio | ||
| 2. 2pcs water hose. | |||
| 3. Color is optional | |||
Water Truck Diagram
Working Show
Truck Details
Water bowser truck production line:
Factory overview
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
