उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Brand: | DONGFENG, FAW,FOTON, HOWO, JAC, JMC, ISUZU | ड्राइव व्हील: | 4x2 |
|---|---|---|---|
| अवयव: | लोड करना, कंप्रेस करना, डिस्चार्ज करना | Campacting Ratio: | 0.6-0.7 Ton/Cbm |
| ऑपरेटिंग सिस्टम: | एक केबिन में, एक ट्रक के पीछे | Purpose: | Domestic garbage transport |
| Warranty: | one year for major parts | प्रतीक चिन्ह: | ग्राहक के अनुरोध के अनुसार |
| Operation video: | Yes, with Multi-language for choice | Technical support: | whenever need |
| प्रमुखता देना: | 10cbm Compactor Garbage Truck,4X2 Compactor Garbage Truck |
||

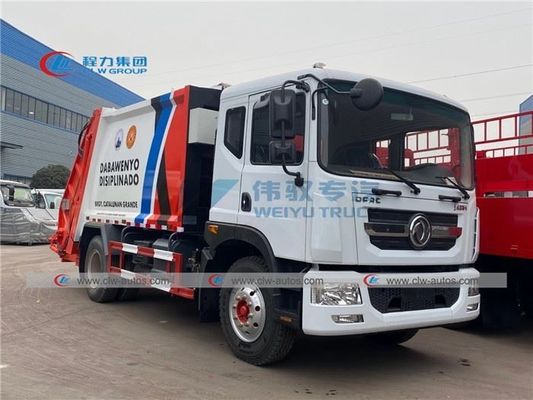

Dongfeng 10cbm 10, 000liters 4X2 Compactor Garbage Truck Trash Collection Truck Garbage Removal Truck
Heavy load; simple operation
Plate thickening; fully function
High-quality Q345 manganese steel of WISCO, with four sides and five bottoms, curved box body, which has good force, no deformation, and larger loading capacity.
Box body adopts automatic welding (full welding), which does not scrape dust, does not leak, beautiful and durable.
Double sewage collection tank design, sealed treatment, eliminate secondary pollution, sewage tank is installed with a unique sewage valve, reliable sealing, not easy to block.
Specifications of 6CBM Garbage Compactor Truck
| Dongfeng 10CBM Compressed Garbage Truck | |||||
| Overall Dimension | 7020×2462×2690 mm | Gross Vehicle Weight | 10920 kg | ||
| Curb Weight | 4670 kg | Loading Weight | 6250 kg | ||
| Wheel Base | 3950 mm | Front / Rear Track | 1900 kg / 1800kg | ||
| Cabin | Left Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine Type | EQB160-20 | ||||
| Engine horsepower | 160HP, EURO2 | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 9.00-20 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 10CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 - 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time＜14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Diagram
Working Show
Quick feedback to solve your questions
Reasonable price and good quality
Quick delivery and shipment
