उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Brand: | KAIMA,DONGFENG, FAW,FOTON, HOWO, JAC, JMC, ISUZU | ड्राइव व्हील: | 4x2 |
|---|---|---|---|
| Garbage container material: | Q345B, high intense carbon steel | Thickness: | 4 mm for both side and buttom container |
| अवयव: | लोड करना, कंप्रेस करना, डिस्चार्ज करना | Campacting Ratio: | 0.6-0.7 Ton/Cbm |
| ऑपरेटिंग सिस्टम: | एक केबिन में, एक ट्रक के पीछे | Usage: | Domestic garbage transport |
| Warranty: | one year for major parts | Operation video: | Yes, with Multi-language for choice |
| Technical support: | 20 years experienced engineer will help you whenever need | प्रतीक चिन्ह: | ग्राहक के अनुरोध के अनुसार |
| प्रमुखता देना: | LHD Hydraulic Compression Garbage Truck,Howo Hydraulic Compression Garbage Truck,6m3 Hydraulic Compression Garbage Truck |
||

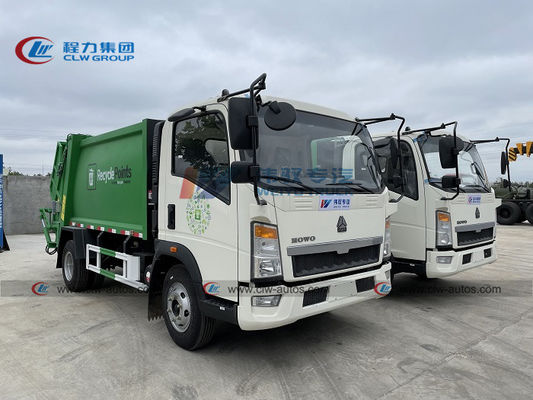

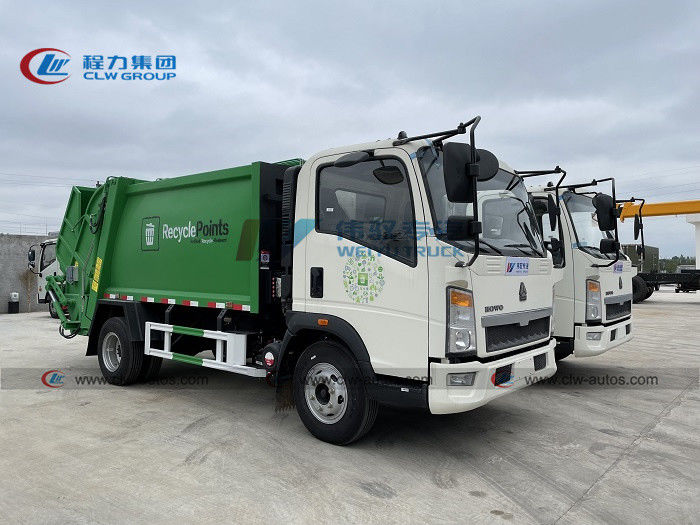

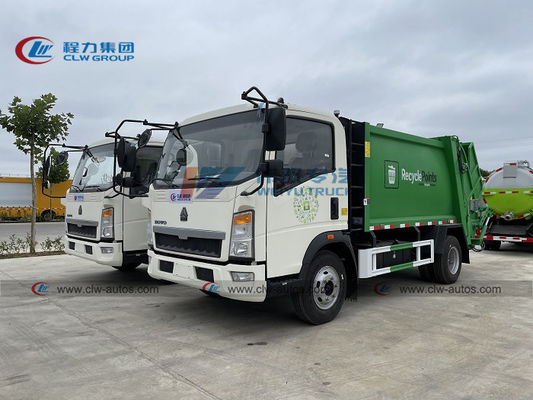

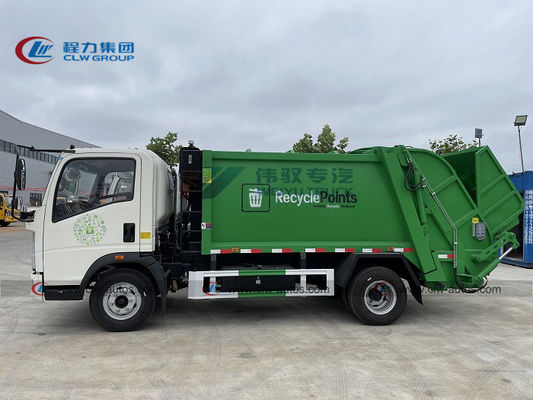

Howo LHD 6m3 Hydraulic Compression Garbage Truck
Widely used; support customized
Heavy load; simple operation
Plate thickening; fully function
Specifications of 6m3 Compression Garbage Truck
| Dongfeng 6CBM Compressed Garbage Truck | |||||
| Overall Dimension | 5865 ×2180×2400 mm | Gross Vehicle Weight |
7360 kg |
||
| Curb Weight | 2400 kg | Loading Weight | 4960 kg | ||
| Wheel Base | 3360 mm | Front / Rear Axle | 2640kg / 4720kg | ||
| Cabin | Left Hand Driving, 2/3 Passengers Allowed, with Air Conditioner, Radio | ||||
| Engine | Chaochai | ||||
| Engine horsepower | 114HP, EURO 4 | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 7.00R16LT (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 5CBM | |||
| Material | Q345B, 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 0.6 - 0.7 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Working System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time＜14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Diagram
Working Show
Quick feedback to solve your questions
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
