उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Chassis Brand: | Isuzu, FAW, Dongfeng, Foton, Sinotruk, JAC, etc. | ड्राइव मॉडल: | 4x2 |
|---|---|---|---|
| इंजन -शक्ति: | 142एचपी | गियर बॉक्स: | 8 फॉरवर्ड और 2 रिवर्स |
| कैम्पैक्टिंग अनुपात: | 0.8-0.9 टन/एम3 | Compressio ratio: | 3-4 |
| संपीड़न चक्र समय: | ≤15 एस | कचरा उतारने का समय: | ≤23 एस |
| हाइड्रोलिक दबाव: | 20mpa | कचरा बॉक्स की मोटाई: | साइड 3 मिमी, निचला 4 मिमी, कार्बन स्टील-Q345A |
| कचरा बॉक्स वॉल्यूम: | स्वनिर्धारित | कचरा पेटी क्षमता: | स्वनिर्धारित |
| गंदे पानी की टंकी की मात्रा: | 0.2 सीबीएम | हूपर वॉल्यूम: | 0.8 सीबीएम |
| नियंत्रण का तरीका: | मैनुअल और विद्युत नियंत्रण | प्रसव के समय: | 30-35 कार्य दिवस |
| लोगो और पेंटिंग: | ग्राहक के अनुरोध के अनुसार | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | Compression Garbage Truck,5m3 Rear Loader Garbage Truck,Trash Collection Garbage Truck |
||
Product Description
Product Specification
| Technical Parameters | ||
| Overall Dimension | 5895*2010*2350(mm) | |
| Gross Vehicle Weight | 18000(Kg) | |
| Curb Weight | 8280(Kg) | |
| Chassis Brand | Howo | |
| Drive model | 4*2 | |
| Cabin | Single Row, LHD or RHD, with air condition, audio system, and USB, etc. | |
| Number of Passengers | 2 | |
| Engine | Model | Howo142HP, 4-stroke direct injection, 4-cylinder in-line, intercooled supercharging, with ABS. |
| Power | 105KW/142HP | |
| Emission standard | EURO4 | |
| Fuel type | Diesel | |
| Gearbox | 8 Forwards & 2 Reverse,manual operation,with power steering. | |
| Tire | 7.50R16LT, 6 pcs with 1 spare | |
| Max Driving Speed | 95(km/h) | |
| Compector Box | Box Volume: 5cbm | |
| Dirty Water Tank Volume: 0.2CBM | ||
| Hopper Volume: 0.8CBM | ||
| Body Thickness | Side: 3mm, Carbon Steel-Q345A | |
| Bottom: 4mm, Carbon Steel-Q345A | ||
| Hydraulic Pressure | 20Mpa | |
| Controlling Way | Manual and electrical control | |
| Other Configuration | 1. Equipped with hermetic dustbin. | |
| 2. Hydraulic system: Hydraulic ejection plate, Hopper, Lifting system, Compression system(sliding plate, scraper board), Receiving system, Loading system. | ||
| 3. Operating system: Rear operation panel board, Manual operation panel board. | ||
| Logo and Color | Can be customized | |
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.

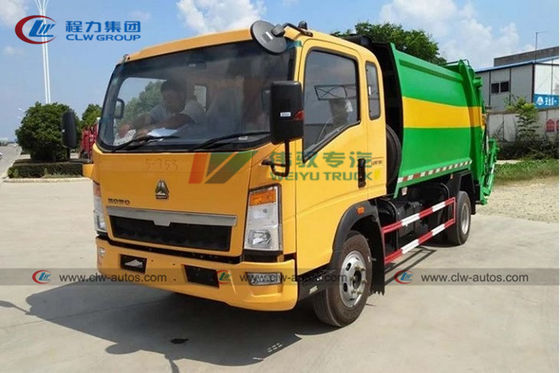

Reference Photos
Structure Diagram
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different kinds and sizes garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM compactor garbage truck, hook lift garbage truck, swing arm garbage truck, hanging barrel garbage truck, etc. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage trucks?
A: China GB local standard.
Q3: Can we adopts International brand equipment or accessories for garbage truck?
A: Sure, we already cooperated with many international brand suppliers.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
