उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Tanker Volume: | 10CBM/10000Liters/10000L or as customized | Tank Material: | Q345R Q370R |
|---|---|---|---|
| लोडिंग सामग्री: | प्रोपेन/तरलीकृत पेट्रोलियम गैस/एलपीजी/रसोई गैस | डिजाइन दबाव: | 1.77MPA |
| शेल और एंडप्लेट की मोटाई: | 10mm या 12mm | Loading capcity: | 5tons,5t,5mt |
| स्थिति: | नया | DIMENSIONS: | ड्राइंग के अनुसार |
| बिक्री के बाद सेवा प्रदान की गई: | विदेशों में सेवा मशीनरी, फील्ड रखरखाव और मरम्मत सेवा के लिए इंजीनियर उपलब्ध हैं | समारोह: | सिलेंडर रिफिलिंग, कार फिलिंग |
| रंग: | स्वनिर्धारित | Country: | Nigeria,Namibia,Niger,Botswana,Zimbabwe |

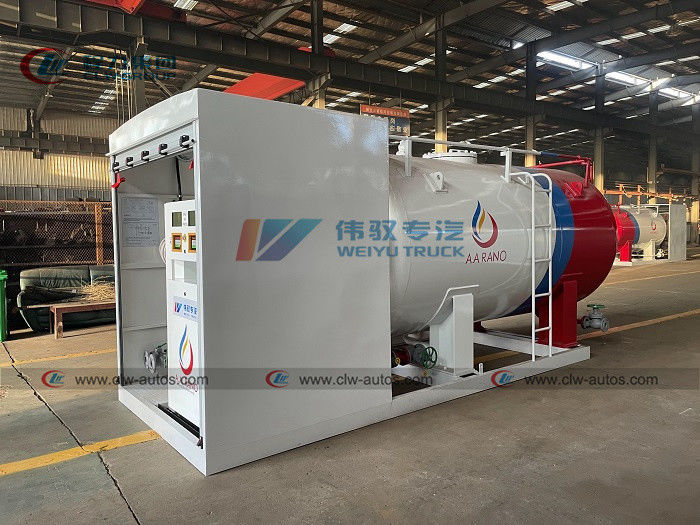

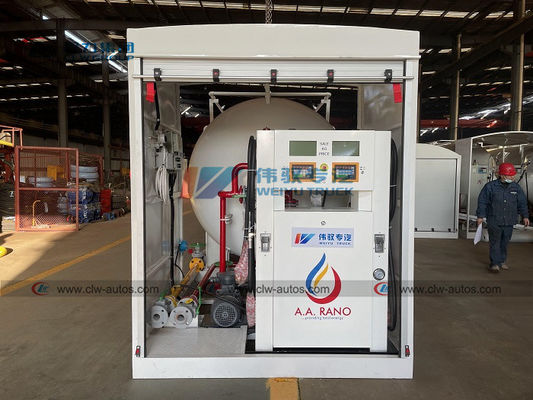

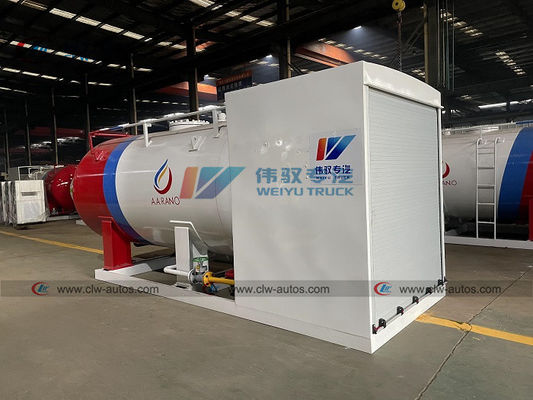

| प्रमुखता देना: | 10000L LPG Skid Station,5MT LPG Skid Station With Cylinder |
||
| 20CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 10CBM | ||
| Filling Weight | 3990 kg | ||
| Tank Weight | 2950 kg | ||
| Thickness of Shell (mm) | 10 mm | ||
| Thickness of Endplate (mm) | 10 mm | ||
| Tank Diameter (mm) | 1600 mm | ||
| External Dimensions (mm) (length x width x height) | 5260 x 1620 x 2210mm | ||
| Overall Skid Size | As designed | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Test Pressure | 2.22 Mpa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-590 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | DN50-2" | 1 | |
| Inflow Pipe | DN50-2" | 1 | |
| Outlet | DN50-2" | 1 | |
| Gas phase balance pipes | DN50-2" | 1 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50-2" | 1 | |
| Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
| LPG Skid Part list | ||
| Item | Model Number | Quantity |
| LPG Tanker | LPG Storage Tank with tank accessories | 1 piece |
| LPG Filling Pump | 2" inlet& outlet, 5.5KW, 380V/50Hz, Ex-proof, | 2 Piece |
| Cylinder Filling Scale | Can fill 3kg to 150kg LPG cylinder | 2 Piece |
| Leakage Detector | Leakage warning detector | 1 Unit |
| Pipes | / | 1 sets |
| Cut-off Valve | J41N-40 DN50 | 5 Pieces |
| Ball Vavle | DN50 | 8 Piece |
| Safety Valve | A42F-25 DN50 | 1 Piece |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
| Ball floating level gauge | UQZ-2.5P | 1 Piece |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
| Flange | 2.5MPaDN15 | 20 Pieces |
| Pressure Gauge | 0 ~4Mpa | 1 Piece |
| LPG Tank | LPG Storage Tank with tank accessories | 1 piece |
