उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Brand: | FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW | Function: | Garbage compactor, waste removal |
|---|---|---|---|
| सामग्री: | कार्बन स्टील Q235B | Thickness: | Side 4 mm and Bottom 4 mm |
| Tank volume: | 10cbm/10000Liters/12cbm/12m3/ 10tons | Wheel Base: | 4200mm 4500mm |
| Horsepower: | 170HP 190HP | हाइड्रोलिक पंप: | चीनी प्रसिद्ध ब्रांड |
| नियंत्रण प्रणाली: | सीमेंस ब्रांड संचालन प्रणाली। | गारंटी: | 1 वर्ष |
| Control: | Both manual and electric control | रंग: | स्वनिर्धारित |
| प्रमुखता देना: | 14cbm Garbage Compactor Truck,14000liters Garbage Compactor Truck |
||

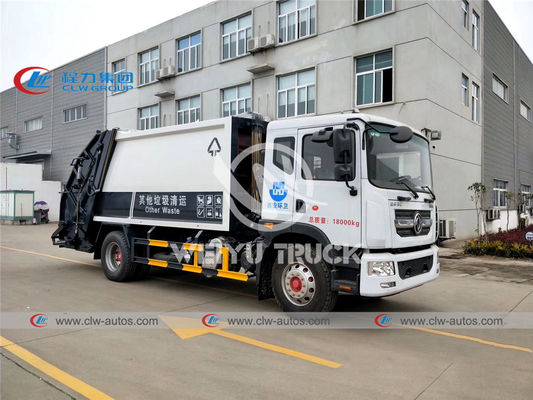

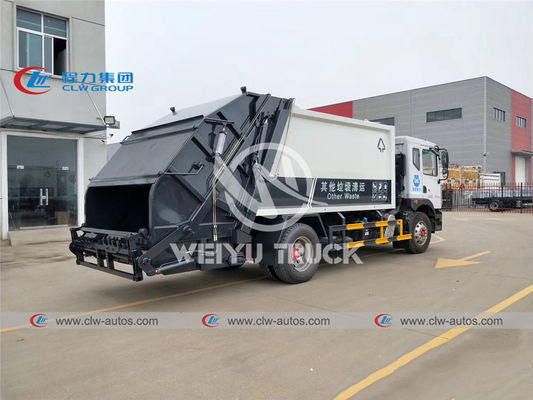

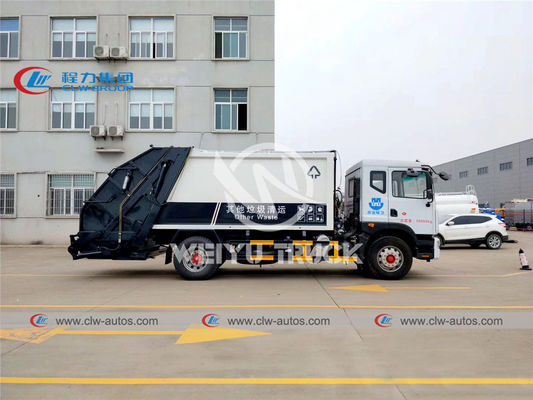

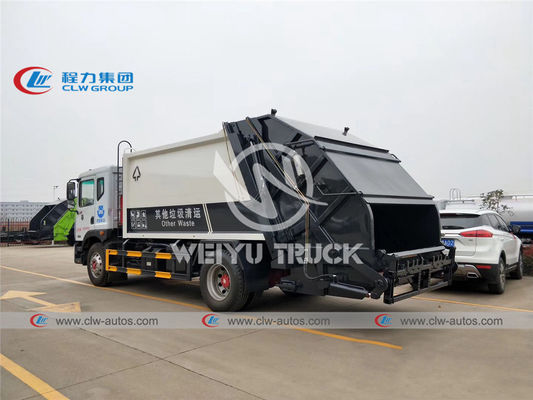

Refuse Collector Transport Garbage Compactor truck
Product Descriptions
Widely used
Support customized
Heavy load
Simple operation
Plate thickening
Fully function
Product Specifications
| Truck Chassis Specification | |||
| Chassis model | CLW5 | ||
| Cab | Dongfeng single row cab | ||
| Driving Type | 4*2 Left or right hand driving | ||
| Max Speed (km/h) | 98 | ||
| Overall dimension(mm) | 8800, 8550, 8600, 8350 × 2490 × 3250 | ||
| GVW( kg) | 15800 | ||
| Mass in working order ( kg) | 5755,5820 | ||
| Wheelbase(mm) | 4200mm 4500mm | ||
| Front/Rear track (mm) | 1880,1800 | ||
| Approach/Departure Angel | 24/12 | ||
| Tire | 9.00r20, 6+1 pcs | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 6-speed | ||
| Enging | Model | Cummins 170hp 190hp | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke, direct injection, turbocharged | ||
| Braking system | Service Brake | Oil brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | Material : Q235,Thickness :4(mm) side /5(mm) rear | ||
| Dirty tank volume | 10cbm/10000Liters/12M3/12cbm | ||
| Filler volume | 500L | ||
| Filing time(s) | 8~10s | ||
| Filling cycle time(s) | 50~60s/once | ||
| Discharge type | Rear Discharging | ||
| Time for Discharging | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and electrical control | ||

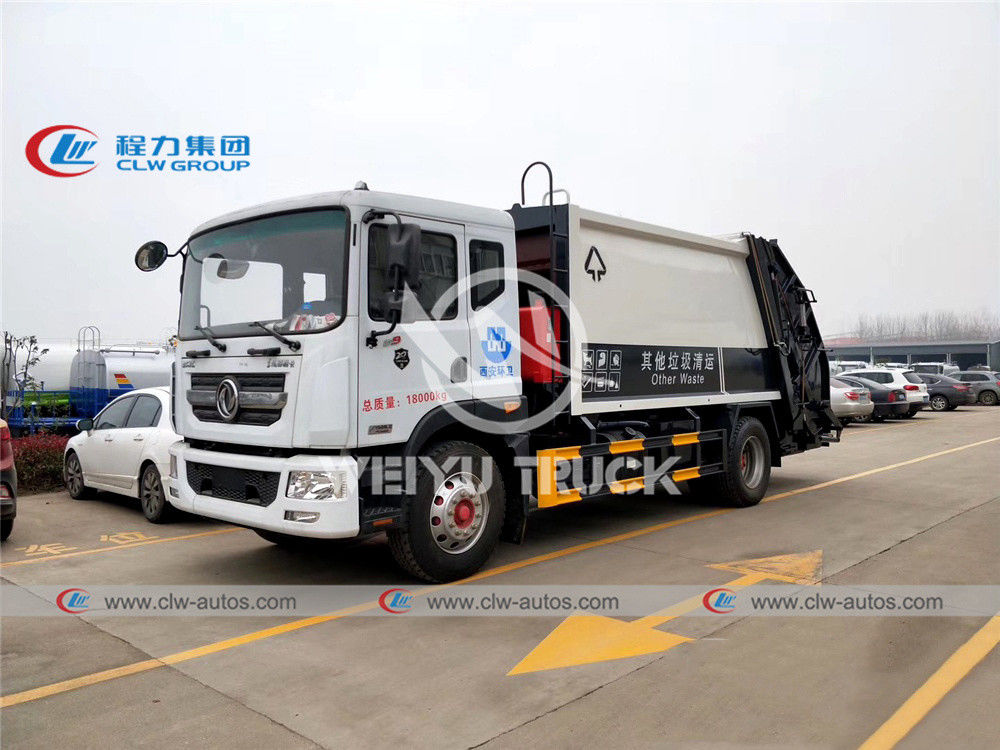

Reference photos
Diagram of compactor garbage truck
Main parts of garbage truck
Factory overview
