उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सामग्री: | Q235 कार्बन स्टील | मोटाई: | 5 मिमी |
|---|---|---|---|
| ईंधन: | डीज़ल | Driving Type: | 6x4, left/right hand driving |
| पंप करना: | चीन प्रसिद्ध ब्रांड/अंतर्राष्ट्रीय ब्रांड | सक्शन ऊंचाई: | 7 मीटर |
| वॉटर कैनन रेंज: | 30 मीटर | छिड़काव की चौड़ाई: | 14 मीटर |
| ऑपरेटिंग वीडियो: | हाँ | मैनुअल का प्रयोग करें: | हाँ |
| फ्रंट स्प्रे और रियर स्प्रे: | हाँ | गारंटी: | एक वर्ष |
| प्रतीक चिन्ह: | ग्राहक के अनुरोध के अनुसार | ||
| प्रमुखता देना: | 20cbm Water Sprinkler Truck,Foton Auman 6x4 Water Sprinkler Truck,Water Bowser Truck With Q235 Tank |
||

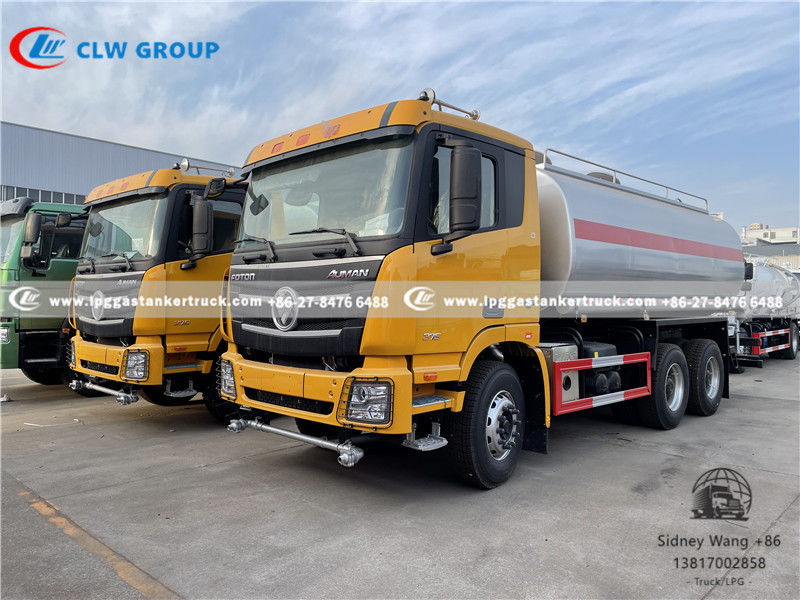

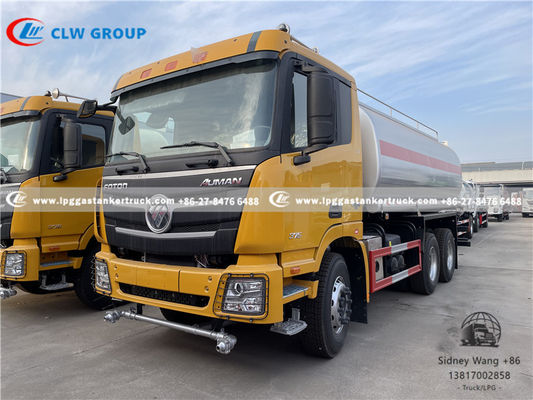

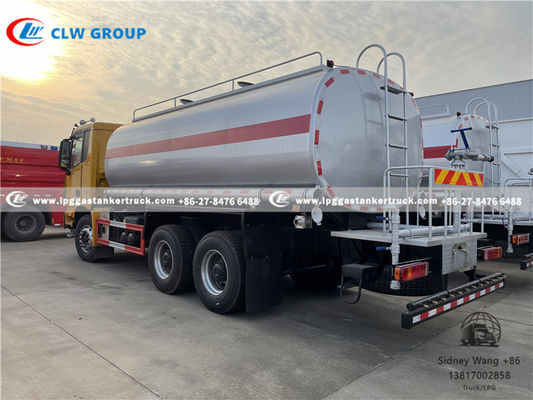

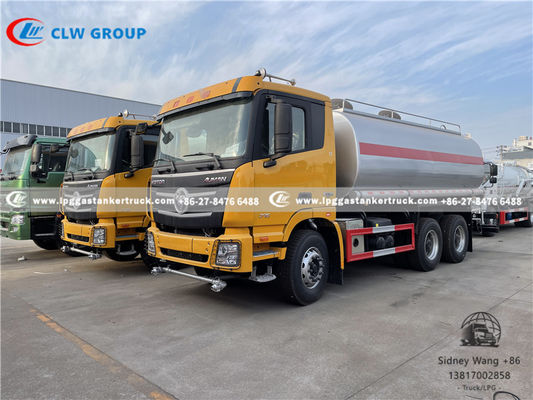

Foton Auman 6x4 type 20000liters 20cbm 20tons Water sprinkler Truck
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacman, etc.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump
Product specifications
| Chassis Specification | ||
| Item No. | Parameters | |
| Chassis Brand | FOTON Auman | |
| Overall Dimension | 9900×2500×3400mm | |
| Gross Vehicle Weight | 25000kg | |
| Curb Weight | 10605 kg | |
| Wheel Base | 4600+1350 mm | |
| Cabin | Row and half, Left Hand Driving | |
| Engine | Weichai, 270HP, EURO III | |
| Overhang( Front/Rear) | 1525/2460(mm) | |
| Fuel type | Diesel | |
| Axle load | 6000/12000(kg) | |
| Angle(Approach/departure) | 16/22(°) | |
| Transmission/Gearbox | 9 Forward & 1 Reverse Gear | |
| Brake System | Pneumatic | |
| Steering Gear | Power Assistant | |
| Tire | 12.00R20, 10 Pieces with 1 spare tire | |
| Maximum speed | 90(km/h) | |
| Superstructure | ||
| Water Tanker | Tank Volume | 20000 Liters / 20m3 |
| Tank Material | 5mm Q235B Carbon Steel | |
| Sprinkling System: | Suction height of Truck Pump | >7m |
| Full Tank Suction Time | <15 minutes | |
| Sprinkling width of front/rear/side Sprinkler | ≥14m | |
| Range of Water Cannon | ≥28m | |
| Remarks | Other Parts: Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs | |
Reference photos
Water Truck Diagram
Working Show

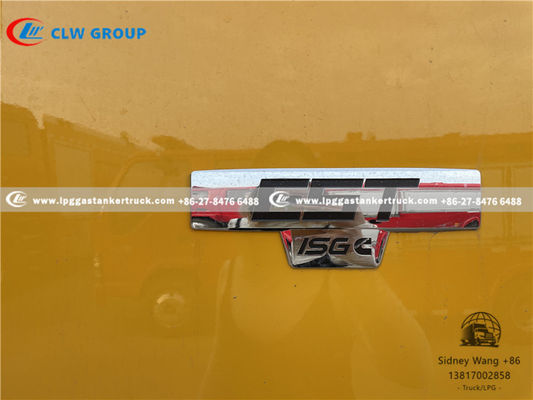

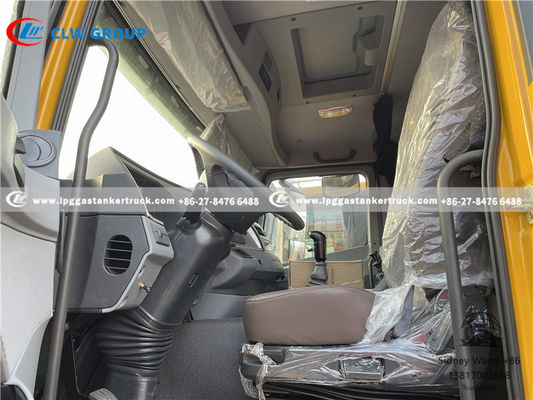

Truck Details
Water bowser truck production line
Factory overview
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
