| Dimension: | 13000*3000*3850mm | Axle: | FUWA, BPW, L1, brand |
|---|---|---|---|
| Axle loading: | 13tons, or 16tons. 20Tons | Nos. of alxe: | 2 axle, 3 axle, Tri-axle |
| Suspension: | mechenical suspension. | Length: | 13 meters, or Customized |
| लैंडिंग सामग्री: | जोस्ट ब्रांड | Loading capacity: | 40tons, 50tons, 60 tons, 80 tons. |
| Function: | Cars, SUV, transport, carrier | Product name: | SUV Cars transport trailer, car carrier semi trailer |
| Load: | 50 60 80 100 Tons | ||
| प्रमुखता देना: | 3 Axle Semi Truck Trailers,2 Axle Semi Truck Trailers,SUV Transport 3 Axle Semi Trailer |
||

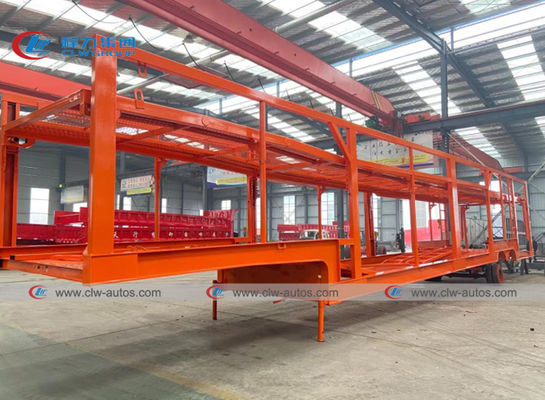

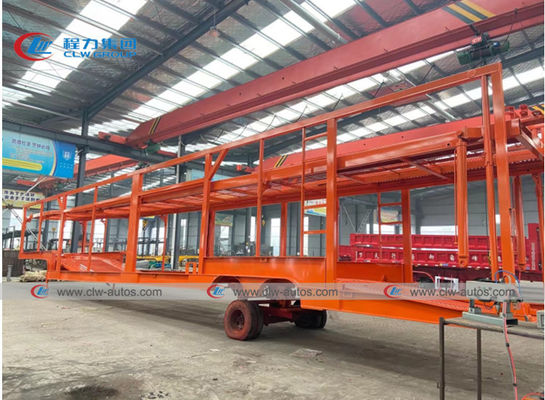

SUV Cars transport 2 or 3 Axles 6 Cars transport 8 units Car Carrier Semi truck trailers
Description:
1. Our trailer adopts hydraulic lifting system, which saves time and labor and has high working efficiency
2. A pair of ladders are provided at the rear end for loading and unloading of commercial vehicles (the ladder is light and durable, and made of high-strength square tube)
3. The trailer is designed to be loaded in two layers, and the height of the two layers can be adjusted (the space for loading commercial vehicles is more reasonable)
4. Rear tail part - if the vehicle is not loaded with enough data, the rear tail can be pulled and lengthened by about 1 meter
Parameters for SUV Cars transport 2 or 3 Axles 6 Cars transport 8 units Car Carrier Semi truck trailers:
| Main size | Overall length | 15000mm |
| Overall width | 2700mm | |
| Overall height | 3100mm | |
| Loading capacity | Loading 8 units of cars. Capacity of 25Tons. |
|
| Chassis | Main beam | Material of high strength steel T700. Height 400mm. Welded by automatic submerged-processes. |
| Main cross beam | Material is high strength steel T700. Welded by automatic submerged-arc processes |
|
| Posts | Main posts | Material of high tensile steel T700. 5 pairs of each trailer |
| Side bars | Material is high strength steel T700. Multi numbers installed. |
|
| Floor | Material | Manganese steel plate floor thickness of 3mm. Multi holes designed. Yellow and red painted track. |
| Landing gear | 20T model landing gear, brand Yahua, with static capacity of 50T. Single speed linked type, operated at one side. |
|
| King pin | 2 inches size, installed on the kingpin plate. JOST brand. |
|
| Axle | 2 sets of 13T model axles. Axle beam 1840mm. Axle loading 13000kgs. |
|
| Tire | Tire sized 10R22.5, Double Star or Triangle brand. 4 sets of tires assembled with wheel rim per trailer. |
|
| Wheel rim | Sized 8.0-20, Zhengxing brand. 4 pcs of wheel rim per trailer. |
|
| Hydraulic Cylinders |
5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars. Youggu brand. |
|
| First unit | At the front post, out&back, extend 600mm. | |
| Second unit | At the end post of gooseneck, out&back, extend 600mm. | |
| Third unit | Under the aircraft style plate, to lift single car, out&back, extend 900mm. | |
| Forth unit | At the post in front of tire, out&back, extend 900mm. | |
| Fifth unit | At the end post of trailer, only out, back by the cars' gravity, extend 1600mm. | |
| Suspension | Mechanical steel suspension system, double axles type. 4 sets of leaf springs installed. |
|
| Brake sysem | Dual line air drum brake system with T30/30 type double brake chambers on each axle. | |
| Light system | 12v/24v light system. LED lights, including side, rear, turning. |
|
| ABS system | ABS system installed, HN or Kemi brand. | |
| Others | Color optional. One set of standard tools in tool box. One bag of belts for firming the cars. |
|

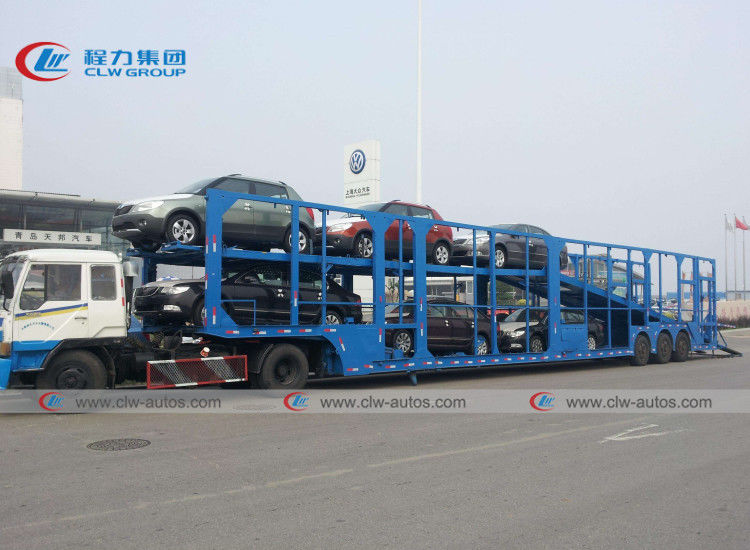

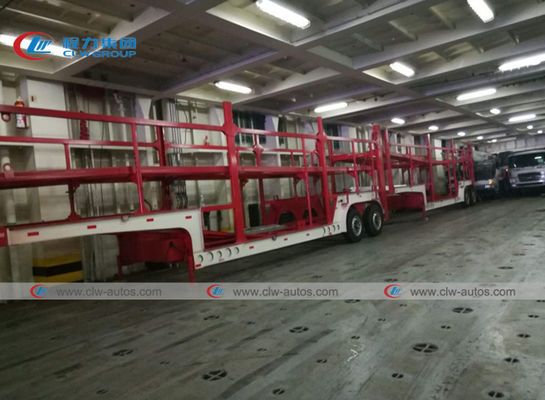

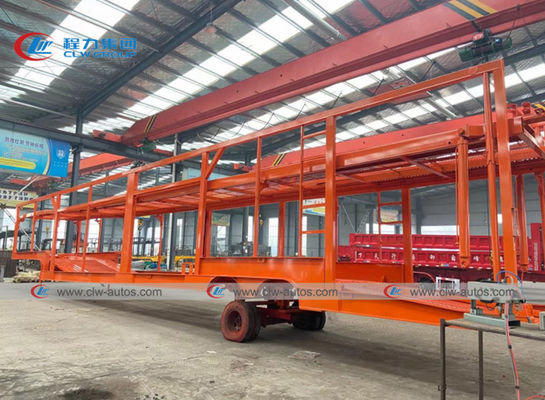

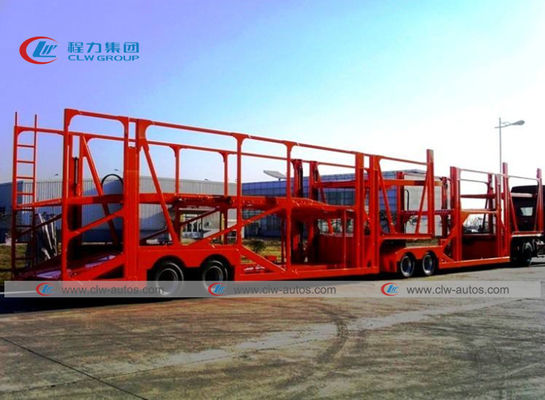

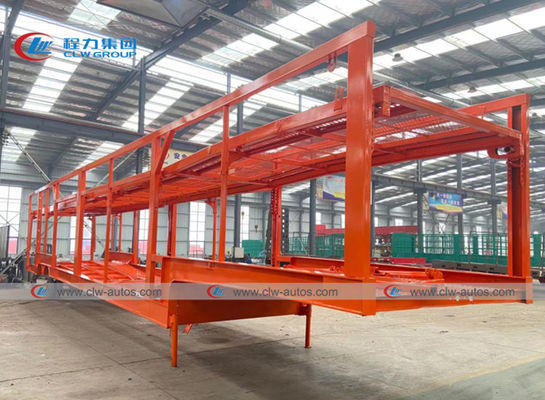

More pictures for SUV Cars transport 2 or 3 Axles 6 Cars transport 8 units Car Carrier Semi truck trailers:
