उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ब्रांड: | चीनी प्रसिद्ध ब्रांड, जैसे सिनोट्रुक होवो, सीएएमसी, शेकमैन, फोटोन, नॉर्थ-बेंज, जेएसी, इसुज़ु, आदि। | लोडिंग क्षमता: | 20टन, 25टन, 30टन |
|---|---|---|---|
| उठाने का प्रकार: | फ्रंट टिपिंग, मिडिल टिपिंग | तेल सिलेंडर ब्रांड: | अंतर्राष्ट्रीय ब्रांड HYVA या चीनी ब्रांड |
| डम्पर सामग्री: | उच्च गुणवत्ता Q345B | डम्पर की मोटाई: | नीचे 8 मिमी, साइड 6 मिमी, या ग्राहक के अनुरोध के रूप में |
| रंग: | सफेद, लाल, पीला, हरा, या ग्राहक के अनुरोध के रूप में | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | Refurbished Dump Tipper Truck,SINOTRUK HOWO 6x4 Dump Tipper Truck,30T Refurbished Truck |
||

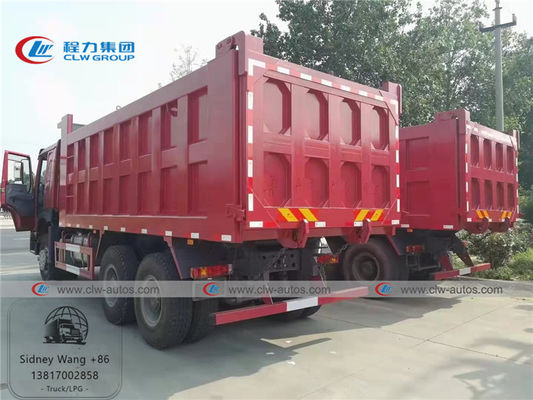

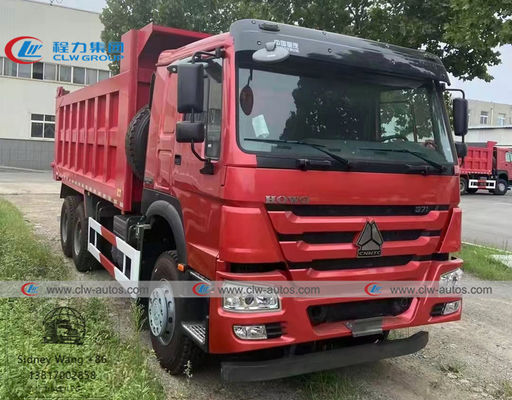

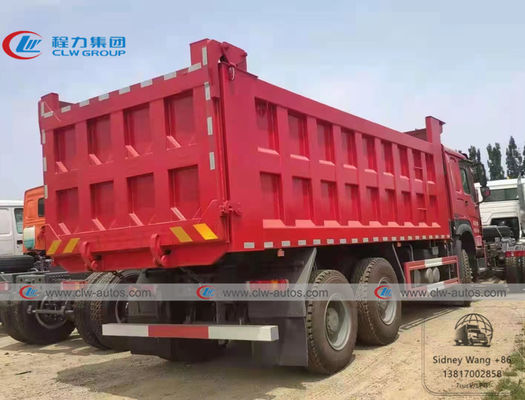

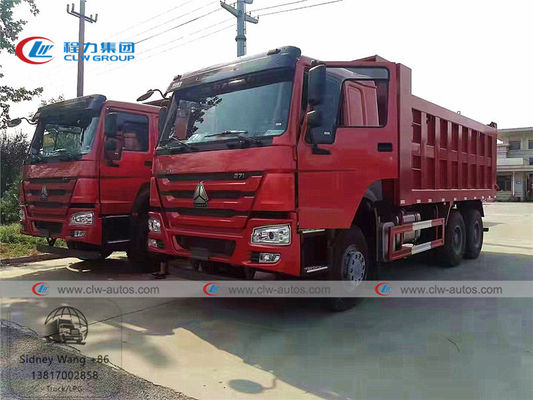

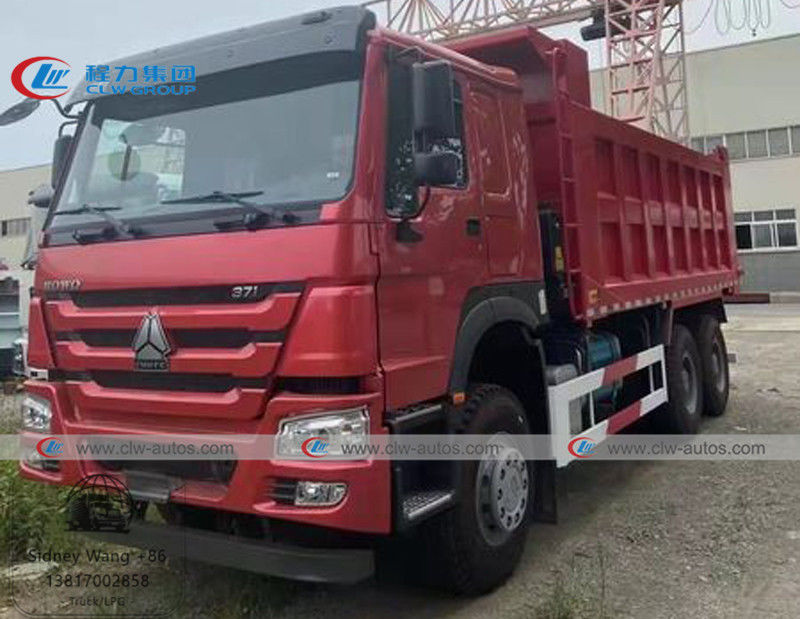

USED SINOTRUK HOWO 6x4 371hp 20tons 30tons heavy duty mining stone sand refurbished Dump Tipper Truck used Dump Truck for Construction Mining Transportation
Product Description
1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm,6mm,8mm, 10mm or as per client's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, and etc.
Product Specification
| Vehicle Main Dimensions | Overall dimensions (L x W x H)(mm) | 9534×2496×3370 |
| Wheel base (mm) | 3225+1350 | |
| Wheel track (front/rear) (mm) | 2020/1800 | |
| Approach/Departure angle(°) | 19/24 | |
| Weight in KGS | Tare Weight | 12460 |
| payload | 28000 | |
| Front axles loading capacity | 1x9000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed(km/h) | 85 | |
| Engine | Brand | Sinotruk |
| Model | WD615.47 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 371hp | |
| Emission standard | Euro II | |
| Gearbox | HW15710, 10 Forwards gear & 1 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 12R22.5 tubeless tyre, Triangle Brand, 10+1 pcs | |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
| Tipper body size | 5400*2300*1500 mm, side is 6 mm, front and bottom 8 mm | |
| Hydraulic system | Middle tipping | |
Product Show
Related products
Factory overview
Sales Service
FAQ
Q1: What kinds of dump trucks I can order from your company?
A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the
installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the
products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
