उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ब्रांड: | डोंगफेंग, सिनोट्रुक, फोटॉन, इसुजु, फॉ, शाकमान | ड्राइव मोड: | 4*2 4*4 6*2 8*4, आदि। ग्राहक के अनुरोध के अनुसार। |
|---|---|---|---|
| टैंक सामग्री: | वैकल्पिक के लिए Q235B और स्टेनलेस स्टील | टैंक का आकार: | 5सीबीएम; 8सीबीएम; 10सीबीएम; 12सीबीएम; 15सीबीएम |
| टैंक क्षमता: | 5t; 8t; 10t; 12t; 15t | टैंक की मोटाई: | 4 मिमी; 5 मिमी; 6 मिमी |
| जल पंप प्रवाह: | 40 मीटर/एच | जल परिवर्तन का समय: | <15 मिनट |
| स्प्रेयर आयाम: | 1100*500*1700मिमी | स्प्रेयर की रेंज: | 30मी |
| पानी की खपत: | 0.8—1 एम3/घंटा | लोगो और रंग: | ग्राहक के अनुरोध के अनुसार |
| प्रसव के समय: | 30-35 दिन | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | Dongfeng 6x4 Water Sprinkler Truck,Water Sprinkler Truck,Dongfeng 6x4 Road Cleaning Truck |
||

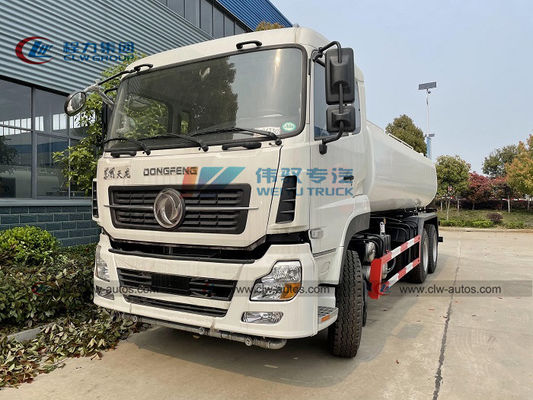

China Dongfeng 6*4 Road Cleaning Water Sprinkler Tanker Truck
Product Description
1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacaman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option;
3. Reliable and high quality water pump;
4. Optional for insulation layer which is suitable for warm water delivery;
5. All welding lines are polished and grided to ensure a bright and clean inner water tank;
6. Water tank can be divided into several compartments according to your request with independent discharging outlet and loading inlet.
Product Specification
| Chassis Parameters | ||
| Overall dimension(mm) | 8650*2500*3350 | |
| Chassis | DONGFENG, LHD or RHD | |
| Drive type | 4*2 | |
| Wheelbase(mm) | 4500 | |
| Curb weight(Kg) | 9500 | |
| Engine | Horse power | 190 hp |
| Fuel type | Diesel | |
| Displacement | 6200 ml, Euro III | |
| Gearbox | 8 forwards gear, 1 rear gear | |
| Tire | 10.00R20 , 6 pcs+1 spare tire | |
| Tank | 1. Tank volume: 15000 liters | |
| 2. Material of the tank: round tank is made by 6mm Stainless steel | ||
| 3. One water pump, with suction and pushing function | ||
| 4. Manhole: DN450, 1 piece | ||
| 5. Discharge valve: 1 piece in the rear body | ||

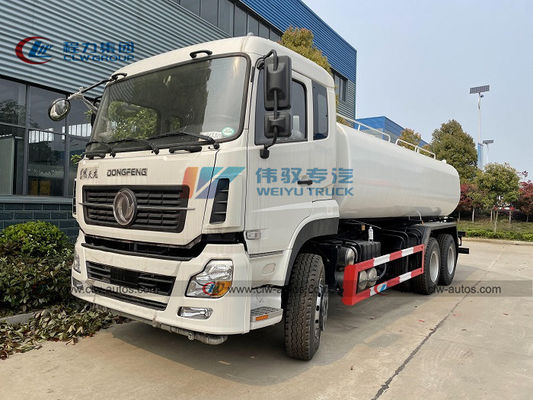

Reference Photos
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.
FAQ
Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
