उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| टैंकर सामग्री: | कार्बन स्टील, स्टेनलेस स्टील, एल्यूमीनियम मिश्र धातु | ड्राइव प्रकार: | 4X2 6 पहिए 6 पहिए |
|---|---|---|---|
| ड्राइव मॉडल: | बाएं हाथ की ड्राइव, या आरएचडी | लोडिंग क्षमता: | 5000 लीटर 10000 लीटर 5सीबीएम, 10सीबीएम |
| ट्रक ब्रांड: | सिनोट्रुक/सिनोट्रक HOWO, शैकमैन, FAW, फोटॉन, जैक | टक प्रकार: | तेल डिस्पेंसर परिवहन ट्रक, तेल ईंधन भरने वाला बाउसर |
| अन्य उपकरण: | चार्जिंग/डिस्चार्जिंग वाल्व। एपीआई मैनहोल | इंजन: | युचाई इंजन |
| ट्रक का प्रकार: | ईंधन/तेल ईंधन भरना। | टैंक की मात्रा: | 5000 - 10000L |
| ड्राइव व्हील: | 4x2,4*2 | ईंधन प्रकार: | डीज़ल |
| संचरण प्रकार: | नियमावली | प्रोडक्ट का नाम: | ईंधन डिस्पेंसर ट्रक, ईंधन टैंक ट्रक, मोबाइल ईंधन रिफिलिंग ट्रक |
| प्रमुखता देना: | 5000L Fuel Delivery Truck,FOTON AUMARK 4x2 Fuel Delivery Truck,RHD Fuel Tank Truck |
||
FOTON AUMARK 4x2 RHD 5000L Oil Fuel Dispenser Refueling Tank Truck
Product Description
The fuel tank truck is also called Mobile Fuel Truck, oil loading truck, oil refulling truck, etc. It is mainly used for storage and transport of oil.
The fuel tank truck can equipped with computer fuel dispenser. It could be used as the mobile filling station.
According to different needs, fuel tank truck is used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places which is without filling station.Actually it can be called as the mobile filling station.
product Specification
| Truck Specification | |||
| Chassis model | FOTON | ||
| Cab | Foton single row cab, with power steering. Electronic flameout,without a/c | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 5900*2150*2400 | ||
| GVW( kg) | 7500 | ||
| Mass in working order ( kg) | 3500 | ||
| Tank Capacity (L) | 5000 | ||
| Wheelbase(mm) | 3300 | ||
| F/R track base (mm) | 1770/1640 | ||
| F/R overhang (mm) | 1230/2170 | ||
| Approach/Departure Angel | 24/16 | ||
| Tire | 7.50-16 (5+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 5-speed | ||
| Bridge | Front axle | 2.5T | |
| Rear axle | 5T | ||
| Enging | Model | CY | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 3200 | ||
| Max output power/rotate speed (hp /rpm ) | 80 | ||
| Max torque/rotate speed(N.m/rpm) | 3.200L | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Volume of tank | 5m3 | ||
| Tank shape | oval | ||
| Material of tanker | 5mm carbon steel | ||
| Color of the tanker | According your demands | ||
| Equipment | Oil pump | ||
| Transport medium | Diesel oil, gasoil or others | ||

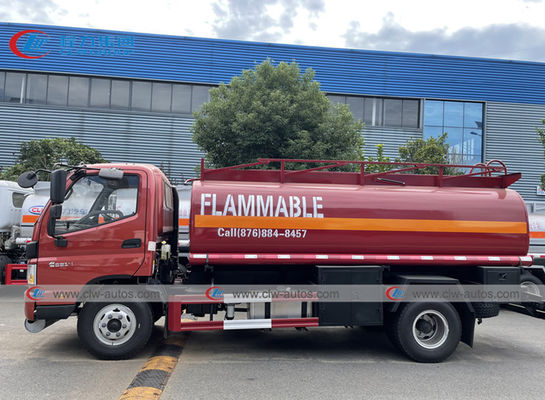

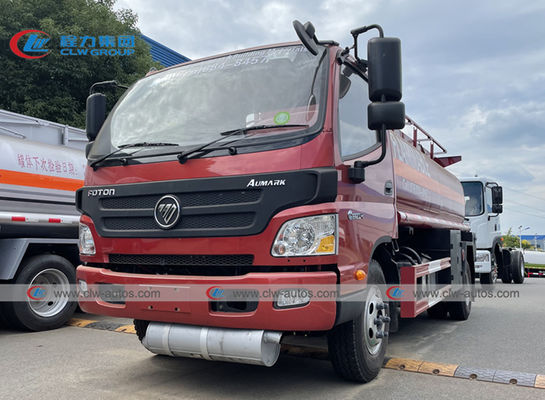

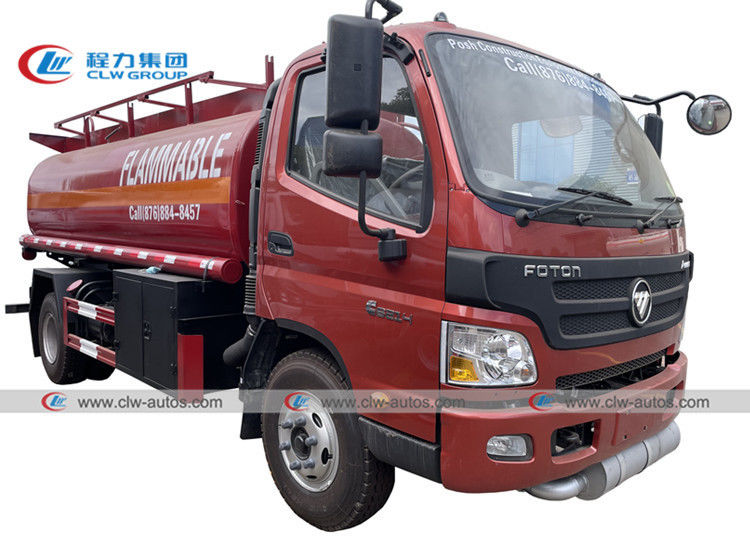

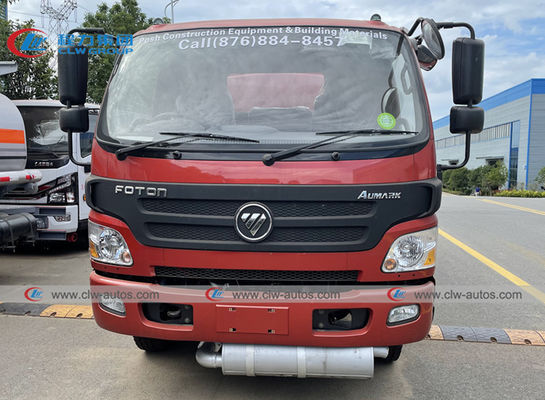

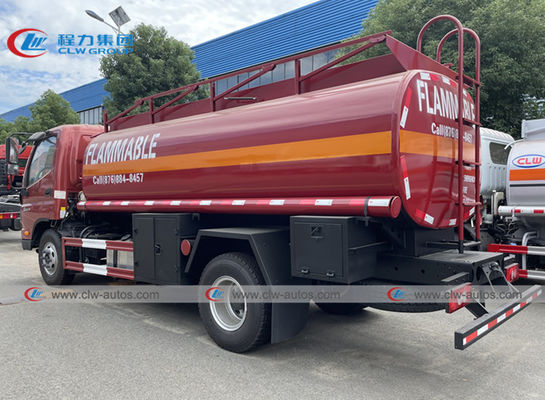

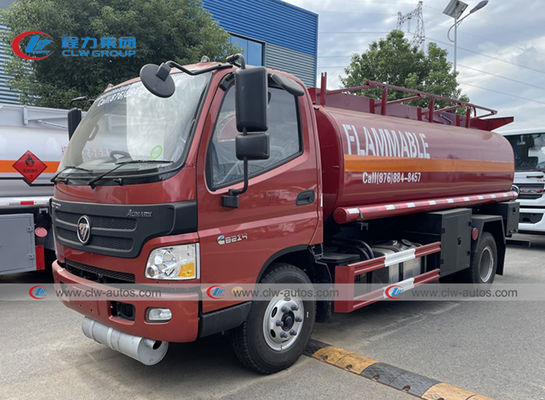

More pictures for FOTON AUMARK 4x2 RHD 5000L Oil Fuel Dispenser Refueling Tank Truck
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
