उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| टैंकर सामग्री: | कार्बन स्टील | धुरा: | FUWA, BPW, L1, ब्रांड |
|---|---|---|---|
| एक्सल लोडिंग: | 13टन, या 16टन | परिवहन: | थोक चारा पशु चारा पशुधन गेहूं, अनाज, अनाज |
| टैंक क्षमता: | 40एम3 45एम3 46एम3 48एम3 50एम3 56एम3 60एम3, 61.9एम3 | डिस्चार्ज विधि: | इलेक्ट्रिक या हाइड्रोलिक स्क्रू कन्वेई |
| उपकरण: | एबीबी मोटर. पोर्टेबल जनरेटर, | अन्य: | रिमोट कंट्रोल |
| प्रकार: | फ़ीड लोड टैंक सेमी-ट्रेलर | किंग पिन: | 2" ((50mm) या3.5" ((90mm) JOST |
| लैंडिंग सामग्री: | जोस्ट(C200T) | क्षमता: | 30 ~ 60 सीबीएम |
| ओईएम नहीं।: | 60 टन थोक अनाज, अनाज, पशु चारा टैंक | ||
| प्रमुखता देना: | 60M3 Tanker Semi Trailer,SGS 3 Axle Tanker Semi Trailer,60M3 Bulk Feed Trailer |
||

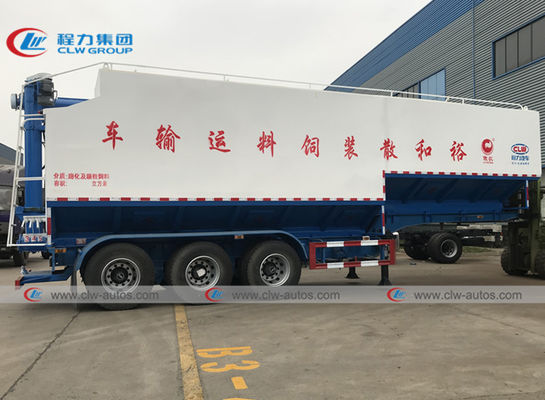

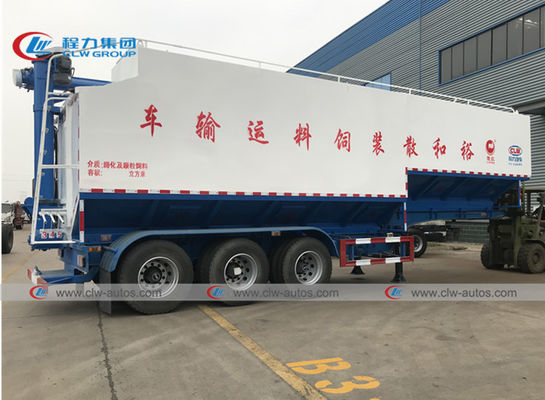

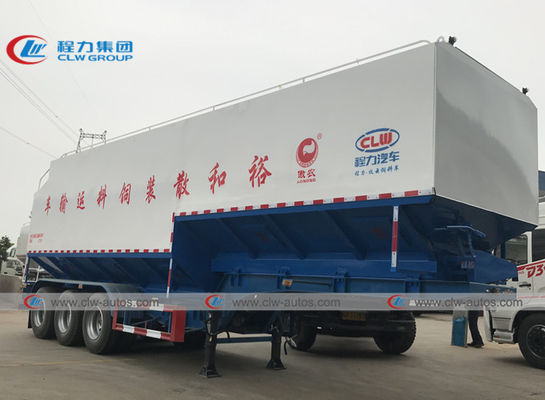

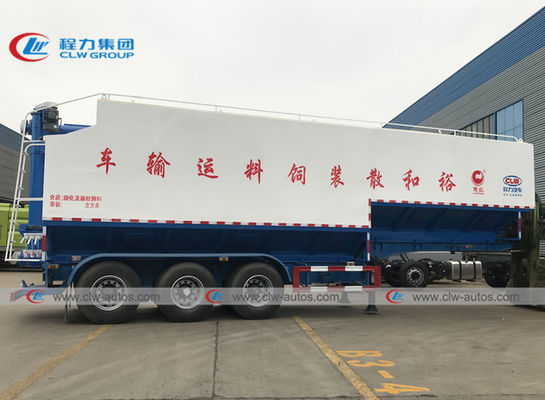

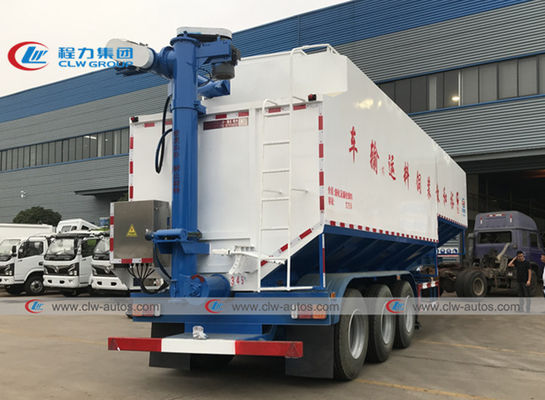

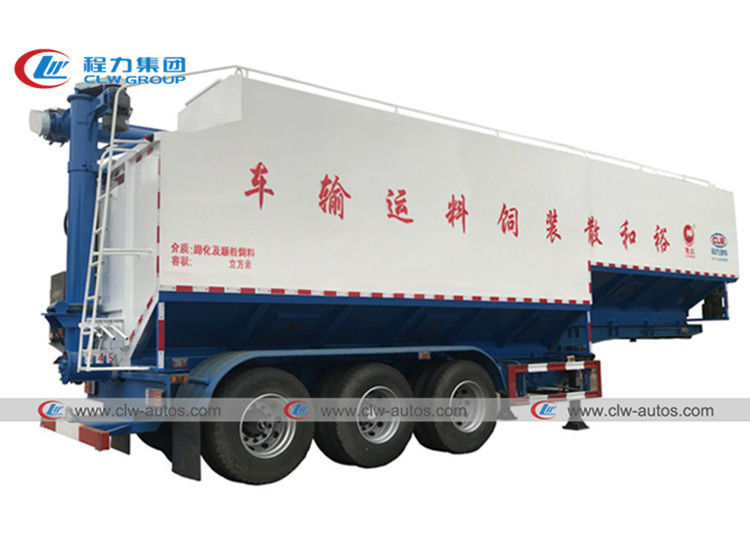

3 Axle 60000L Feed Transport Tank Bulk Grain Delivery tanker Semi-Trailer with Electric Hydraulic Auger
product Specification
| Vehicle Parameters |
Overall Dimensions (L*W*H)(mm) |
12955×2550×3980 |
Tank Dimension (L*W*H)(mm) |
12220×2540×2270 |
| Total Mass(kg) | 34850 | Curb Weight(kg) | 12350 | |
| Bulletin loading(kg) | 22500 | Theoretical loading(kg) | 27000 | |
| Appearance color | White/ optional | Certification | ISO9001, 3C | |
| Chassis Parameters | Parking brake type | Manual valve control spring brake cylinder | ||
| Driving brake system | Independent double circuit, air pressure, drum brake belt ABS | |||
| Tire specifications | 11R22.5 16PR | |||
| Trailer traction pin height from the ground(mm) | 1228 | |||
| Trailer radius of gyration(mm) | 1600 | |||
| Trailer gap radius | 2300 | |||
| Wheelbase(mm) | 7050+1310+1310 | |||
| Tank Parameters | Tank gross volume (m3) | 56 | Space quantity | 6 |
| Conveying height(m) | 10.2 | Max conveying distance(m) | 8.8 | |
| Discharge speed(Kg/min) | 550-650 | Residual rate(%) | ≤0.22 | |
| Discharge by | Hydraulic auger | |||
| Tank drive form | The feed is conveyed by the lifting auger to the manual and wireless remote-control mode to realize long-distance transport and improve the level of epidemic prevention. And the external power is available. | |||
| Electrical configuration | Complete set of Schneider Electric control system; conveyor motor ABB, with 20m external power cable, external power supply 380V | |||
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
