उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ट्रक ब्रांड: | डोंगफेंग, इसुजु, होवो, फोटोन, जेएसी, आदि। | केबिन सुरक्षा: | वियोज्य जाल |
|---|---|---|---|
| समग्र आयाम: | 9250X2500X3150 मिमी | कुल वजन: | 25000 किग्रा |
| इंजन: | 336 एचपी 340 एचपी 371 एचपी | स्टीयरिंग: | LHD, Rhd, लेफ्ट हैंड ड्राइव, राइट हैंड ड्राइव |
| केबिन: | 2~3 व्यक्ति ए/सी के साथ | पहिये का आधार: | 4600+1350 मिमी |
| थका देना: | 12.00r20, 12r22.5 | अंडरलिफ्ट क्षमता: | 16टन 20टन 25टन |
| चरखी खींचने की क्षमता: | 10 टन 16 टन 20 टन | विध्वंसक प्रकार: | एक-खींच-एक, एक-खींच-दो |
| स्टील केबल की लंबाई: | 25 मीटर, 25 मीटर | हाइड्रोलिक प्रणाली: | आयातित ब्रांड |
| प्रसव के समय: | 30-35 दिन | गारंटी: | 1 वर्ष |
| लोगो और पेंटिंग: | ग्राहक के अनुरोध के अनुसार | ||

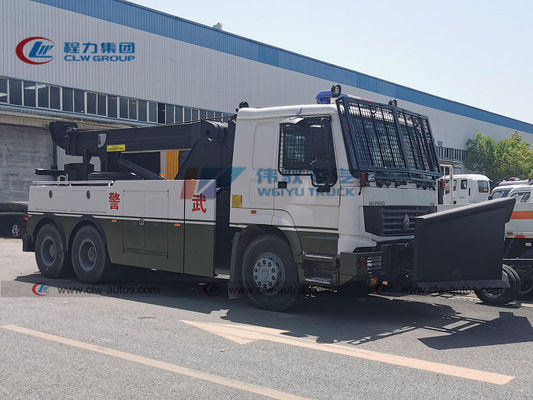

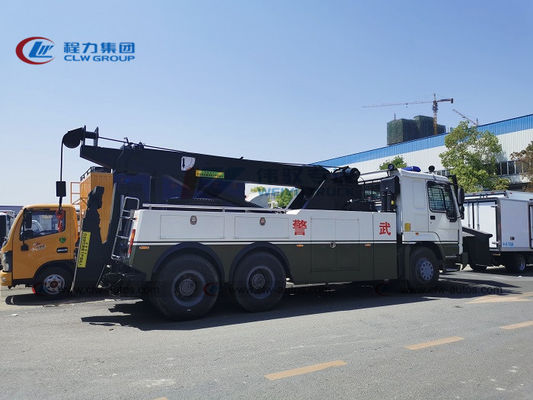

| प्रमुखता देना: | Recovery Tow Truck With Front Shovel,25t Recovery Tow Truck,6x6 Sinotruk HOWO Wrecker Tow Truck |
||
Product Description
Reference Photos
Product Specification
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | Howo | |
| Cabin | Single, Right or Left Hand Driving | ||
| Engine | Model | 4 Cylinders | |
| Emission Standard | EURO 3 | ||
| Fuel Type | Diesel | ||
| Gearbox | 10 Forward & 2 Reverse Gear | ||
| Wheel Base | 4600+1350(mm) | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/9(°) | ||
| Brake System | Air Brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 10.00R20, 10 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90(km/h) | ||
| Superstructure | |||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 20000 (kg) | ||
| Length of Steel Cable | 25 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
Main Details
Operation Scene
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.
FAQ
Q1: What kinds of wrecker truck I can order from your company?
A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied wrecker truck to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3: Can we adopts International brand parts or accessories for wrecker truck?
A: Sure, we already cooperated with many international brand suppliers.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
