उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सामग्री: | कार्बन स्टील, | प्रोडक्ट का नाम: | पिछला डम्पर अपशिष्ट पुनर्चक्रण ट्रक, सीलबंद कचरा ट्रक |
|---|---|---|---|
| ड्राइव प्रकार: | 4X2 6पहिए 6 पहिया | ड्राइव मॉडल: | बाएं हाथ की ड्राइव, या आरएचडी |
| लोडिंग क्षमता: | 5 टन, 6 टन, 8 टन, 5टी, 6टी। 7टी, 8टी | ट्रक ब्रांड: | सिनोट्रुक HOWO, डोंगफेंग, शैकमैन, FAW, फोटॉन, जैक |
| टक प्रकार: | अपशिष्ट संग्रहण ट्रक. रीसाइक्लिंग ट्रक से इनकार करें | अन्य उपकरण: | हाइड्रोलिक प्रणाली के साथ, लिफ्टिंग आर्म डम्पर टिपिंग |
| स्थिति: | डोंगफेंग ब्रांड, बिल्कुल नया ट्रक | नियंत्रण प्रणाली: | बहु वाल्व |
| लोडिंग एवं अनलोडिंग: | हाइड्रोलिक तेल सिलेंडर | ||
| प्रमुखता देना: | Dongfeng Rear Loader Garbage Truck,4x2 Rear Loader Garbage Truck,Dongfeng Back Loader Garbage Truck |
||

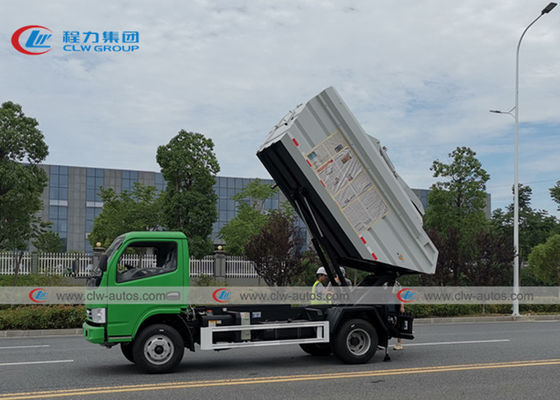

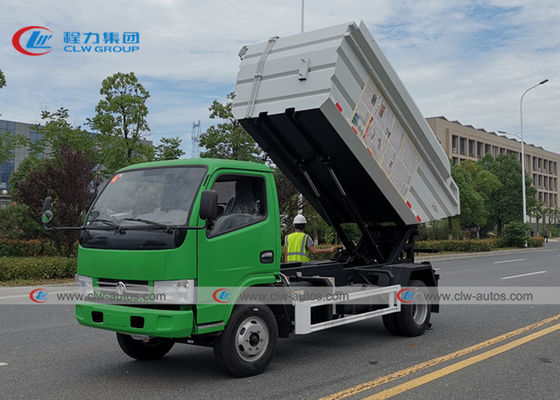

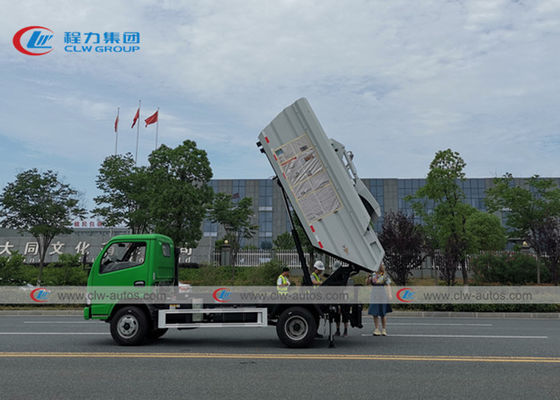

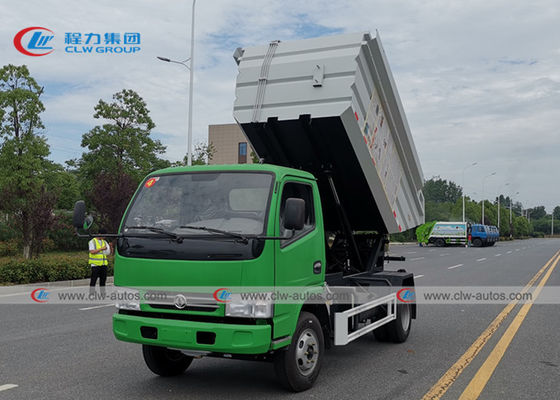

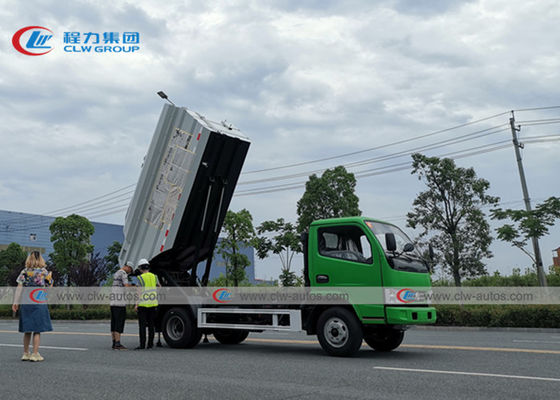

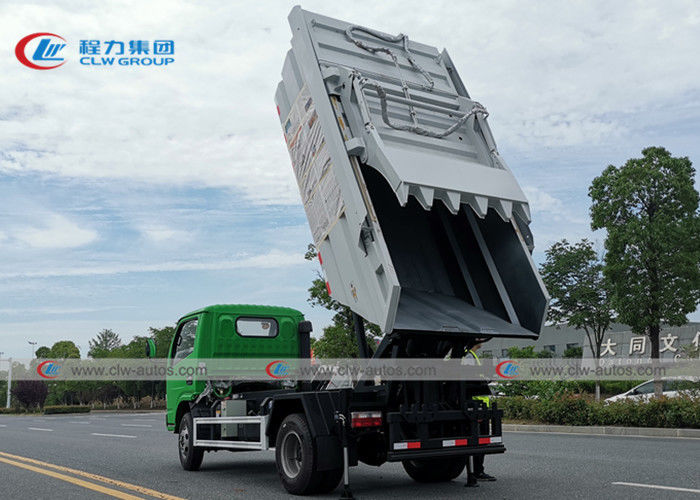

Dongfeng 4*2 Small Hydraulic Rear Tipping Sealed Garbage Truck
Product Description
1-- Garbage compactor truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2-- Easy Full Automatic Operation: computer control system for loading and unloading operations.
3-- One Person Operation: Reducing sanitation working, greatly improves the working environment.
4-- Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5-- Capacity: option for 3-20m3 garbage truck.
6-- Steering wheel: both left and right hand drive,meet the needs of different countries
7-- Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage truck
8-- Truck chassis: option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland.
product Specification
| Upperstructure Specification | ||
| Compector Box | Box Volume | 5CBM/3CBM |
| Box Capacity | 10Ton | |
| Dirty Water Tank Volume | 0.2CBM | |
| Hopper Volume | 0.8CBM | |
| Compression density | 0.8-0.9T/CBM | |
| Compression ratio | 3-4 | |
| Compression cycle time | ≤15 s | |
| Unload garbage time | ≤23 s | |
| Body Thickness | Side | 3mm, Carbon Steel-Q345A |
| Bottom | 4mm, Carbon Steel-Q345A | |
| The Electromagnetic Valve | UZCT-115/24V, 2sets | |
| Hydraulic Pressure | 16Mpa | |
| Controlling Way | Manual and electrical control | |
| Other Configuration |
|
|
| Options | Tail feed flip frame or flip bucket, PLC one-button control system, etc. |
|
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
