उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ट्रक ब्रांड: | सिनोट्रुक HOWO, ISUZU, डोंगफेंग, शैकमैन, FAW, JAC, JMC | इंजन: | युचाई, चाओचाई, कमिंस |
|---|---|---|---|
| डिजाइन दबाव: | 1.61 एमपीए | टैंक सामग्री: | Q345R |
| टैंक क्षमता: | 10000 लीटर, 5 टन, 5 मीट्रिक टन, 10 सीबीएम | वजन लोड हो रहा है: | 5 टन, 5 मी |
| प्रवाह मीटर: | विस्थापन प्रवाह मीटर | पंप करना: | पीटीओ संचालित हाइड्रोलिक पंप |
| निर्वहन वाल्व: | 1'', 2'', 3'' निकला हुआ किनारा प्रकार | सेवा का समय: | 10 वर्ष |
| गारंटी: | इंजन, गियरबॉक्स, एक्सल के लिए एक वर्ष | लोगो और पेंटिंग: | ग्राहक के अनुरोध के अनुसार |
| प्रयोग: | सिलेंडर रिफिलिंग, ट्रक गैस आपूर्ति | ||
| प्रमुखता देना: | 5T LPG Bobtail Truck,Q345R Tank LPG Bobtail Truck,Q345R Tank Bobtail Gas Truck |
||
5tons LPG Bobtail Truck Cylinder Refilling Dispenser Truck Gas Tanker Truck
Product Description
There are various LPG Gas Cylinder Filling Trucks available with storage tank capacity ranging from 3000 Liters to 40000 Liters and with the choice of single or many cylinder filling scales. All necessary fittings and components of equipment such as pump, flow meter, LPG filling scale, hydraulic slave motor etc. are installed on the chassis.
1. Storage medium of LPG bobtail truck : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Truck Brand of LPG Gas Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
3. Available tank capacity of LPG bobtail truck: 5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
4. Function of LPG Gas Bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
5. Manufacturing standards of LPG bobtail truck: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
6. Refiling System of LPG Gas Bobtail: 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel
Technical data
Specification
| Condition | New Condition / LHD | |
| Chassis | Brand | SINOTRUK HOWO |
| Curb Weight(kgs) | 7295 | |
| G.V.W.(kgs) | 11400 | |
| Wheel Base(mm) | 4200 | |
| Dimensions(mm) | 7600*2462*3250 | |
| Voerhang(Front/Rear)(mm) | 1886/1845 | |
| Approach/departure Angle | 27/20 | |
| Max driving speed | 90 | |
| Tire | 6 pcs with one spare tire 8.25R20 | |
| Clutch | Reinforced diaphragm Clutch | |
| Engine | Model | Cummins |
| Fuel type | Diesel | |
| Displacement(ml) | 4900 | |
| Power(kw) | 120 | |
| Horsepower(hp) | 160 | |
| Cylinder Number | 6 | |
| Emission Standard | Euro 3 | |
| Breakes | Service Brake :Dual Circuit Compressed air brake ,Parking Brake(Emergency brake):Spring energy , compressed air operation on rear wheel Auxiliary brake :Engine exhaust valve brake | |
| Cab | 3 Passenger Allowed , With A/C | |
| Steering Gear | Power steering , Hydraulic steering with power assistance | |
| Tank Parameter | Tank material | Carbon Steel Q345R |
| Loading capacity(cbm) | 10cbm(10000 liters) | |
| Tank sharp | Double Ellipse | |
| Thickness of shell(mm) | 10 | |
| Thickness of End Plate(mm) | 10 | |
| Filling Medium | Liquefied Petroleum Gas(Propane) | |
| Corrosion Allowance(mm) | 1 | |
| Filling Ratio | 0.42 | |
| Design Pressure(Mpa) | 1.61Mpa | |
| Safty accessory parts :Safety valve , Cut-off valve , thermometer, Liquid level gauge , Pressure Gauge | ||

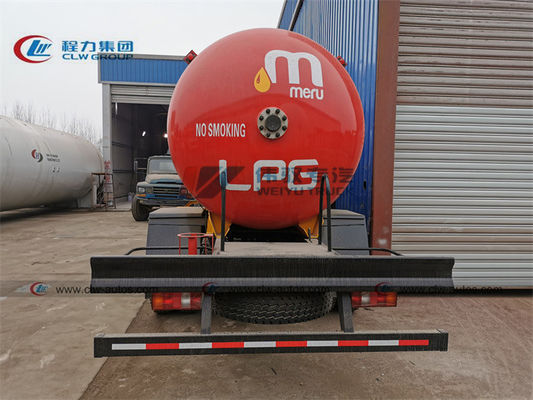

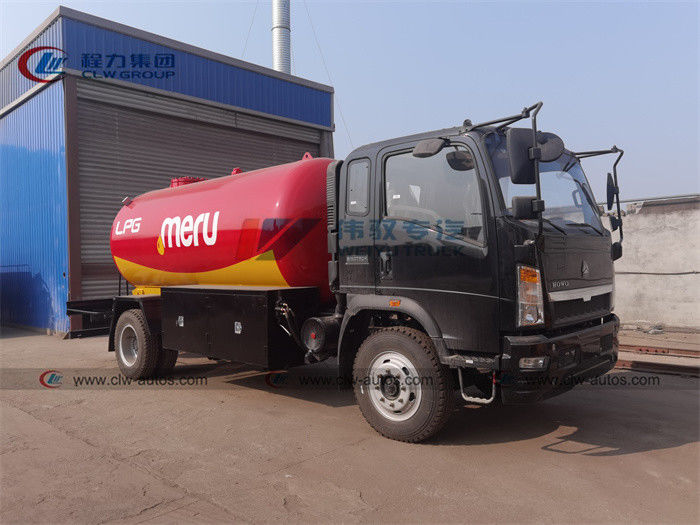

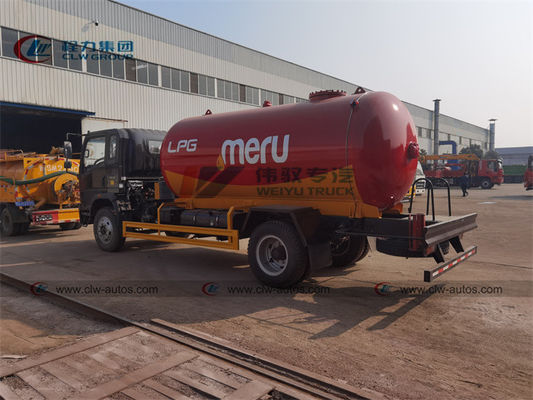

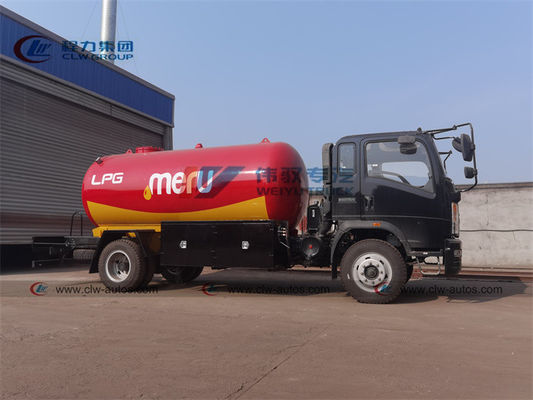

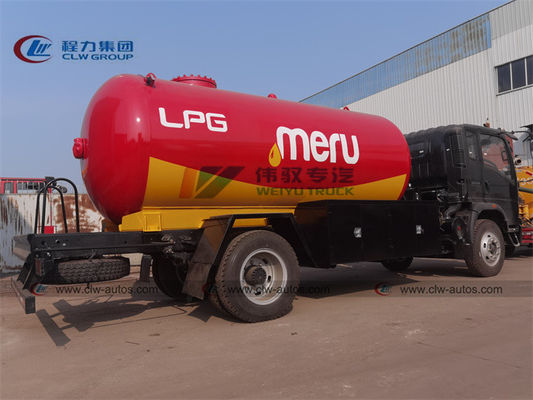

Reference Picture
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
Key words:
5tons LPG Bobtail truck, LPG dispenser truck, LPG refilling truck, Cyliner Refilling truck, gas tanker truck
