उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| प्रोडक्ट का नाम: | फोटॉन व्रेकर रिकवरी रेस्क्यू टोइंग ट्रक | ट्रक ब्रांड: | सिनोट्रुक HOWO, SHACMAN, FAW, FOTON, JAC आदि |
|---|---|---|---|
| ड्राइव मॉडल: | 4X2, 6 पहिए, 6 पहिए | ड्राइव प्रकार: | राइट हैंड ड्राइव, या लेफ्ट हैंड ड्राइव। |
| Max. मैक्स। Loading weight वजन लोड हो रहा है: | 4000 किलोग्राम, 5000 किलोग्राम, 4 टन, 5 टन, | उपकरण: | हाइड्रोलिक पंप, तेल सिलेंडर |
| मुख्य भाग: | बूम, उत्थापन, चरखी, लैंडिंग लेग | तार रस्सी: | 25 मीटर |
| प्रमुखता देना: | 5T Flatbed Tow Truck,4x2 Hydraulic Platform Flatbed Tow Truck,FOTON AUMARK Flatbed Wrecker Truck |
||

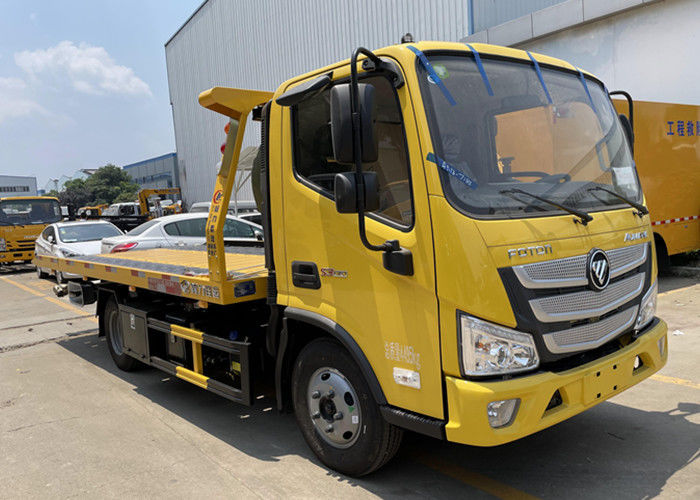

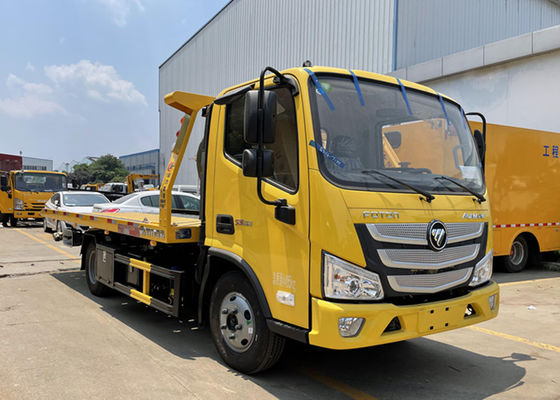

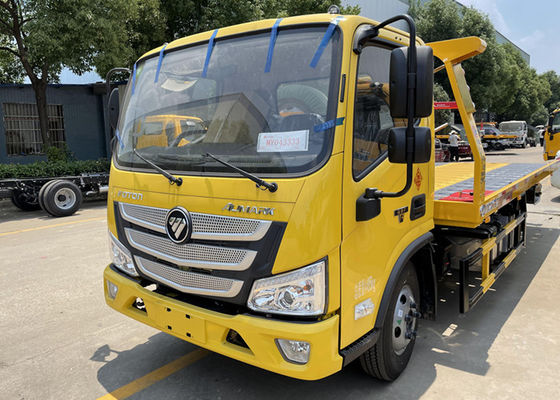

FOTON AUMARK 4x2 5T Hydraulic Platform Small Road Wrecker Flatbed Tow Truck
Product Description:
1. Purpose of 4ton flatbed tow truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman.
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.
Specification:
| General Technical Parameters | |||
| Overall Dimension | 5995x2300x2350(mm) | ||
| Gross Vehicle Weight | 4495kg | ||
| Curb Weight | 4100kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | FOTON | |
| Cabin | Single, Left Hand Driving | ||
| Engine | Model | 4 Cylinders | |
| Power | 95KW/130HP | ||
| Emission Standard | EURO II | ||
| Displacement | 2780ml | ||
| Fuel Type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 3T/6T | ||
| Wheel Base | 3360(mm) | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 22/16(°) | ||
| Brake System | oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90 (km/h) | ||
| Superstructure | |||
| Flatbed | Dimensions | 4200x2320 (mm) | |
| Max. Loading Weight | 4000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 4000 (kg) | ||
| Length of Steel Cable | 25 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars |
||
CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in
different kinds of special vehicles, trailers and construction machinery.
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
