उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| टैंक सामग्री: | दबाव पोत के लिए Q345R कार्बन स्टील | लोडिंग क्षमता: | 5 टन, 10 टन, 12 टन, 15 टन, 20 टन, 25 टन |
|---|---|---|---|
| टैंक का आकार: | 25m3, 25cbm, 25000लीटर, 25000L | डिजाइन दबाव: | 1.71एमपीए 1.77एमपीए 17.1बार, 17.7बार |
| हाइड्रोलिक परीक्षण दबाव: | 2.21एमपीए 22.1बार | भरने का माध्यम: | प्रोपेन, ब्यूटेन, एलपीजी, रसोई गैस |
| स्तर नापने के लिए गेज: | मैग्नेटिक प्लेट लेवल गौ, फ्लोट-बॉल | व्यास: | 2100 मिमी, 2200 मिमी |
| प्रमुखता देना: | 25cbm Propane Gas Storage Tanks,2100mm Propane Gas Storage Tanks,Horizontal Stationary LPG Gas Storage Tank |
||
Horizontal 25cbm 25000 Liters 25000L LPG Gas Storage Tanker Propane LPG Stationary Storage Tank for Sale
Product Description
1. Storage medium of LPG Stationary Storage Tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of LPG Stationary Storage Tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lLPG Stationary Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Product Specification;
| Parameter of 25000liters 12.5tons LPG Stationary Storage Tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 25cbm | Thickness of Shell | 12mm | |||
| Tank Material | Q345R | Thickness of End plate | 14mm | |||
| Overall Size | 7008*2224*2814mm | Tank Net Weight | 6020kg | |||
| Tank Diameter | 2200mm | Loading Capacity | 12500kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 15 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-100 | Stop Valve DN100 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-100 | Safety Valve DN100 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||

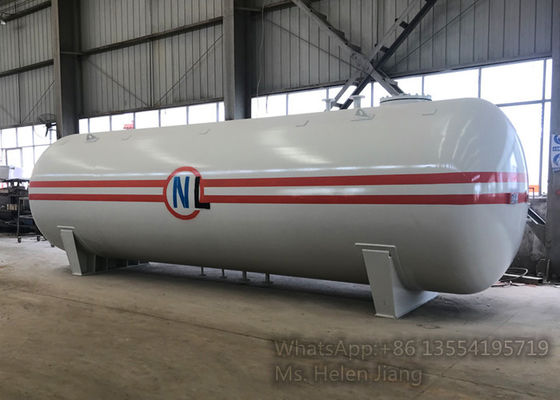

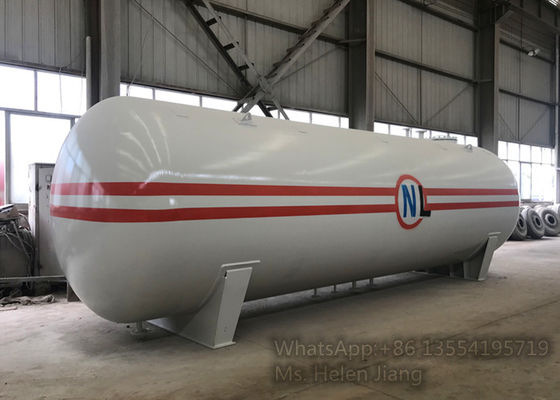

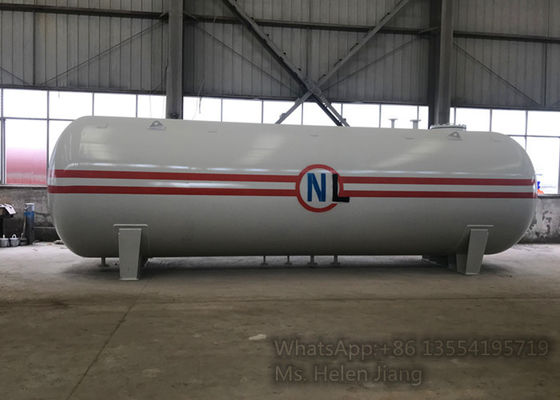

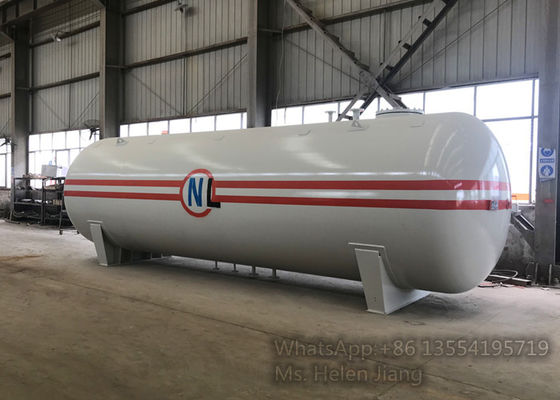

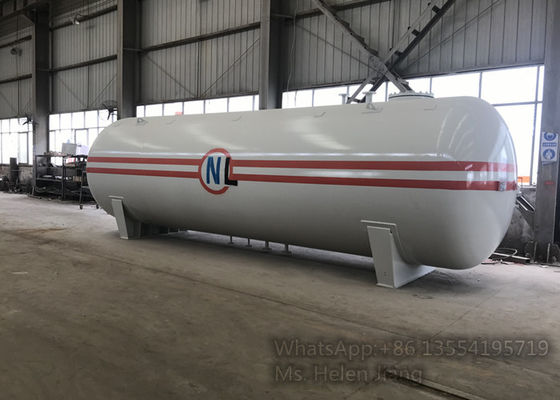

Product 25000Liters LPG storage tank's pictures:

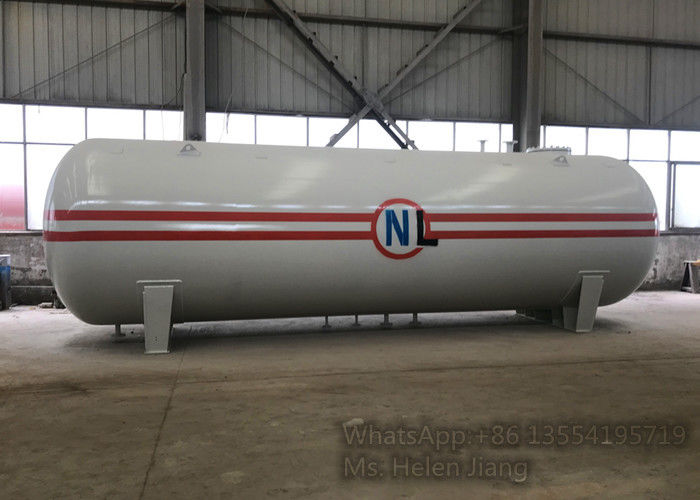

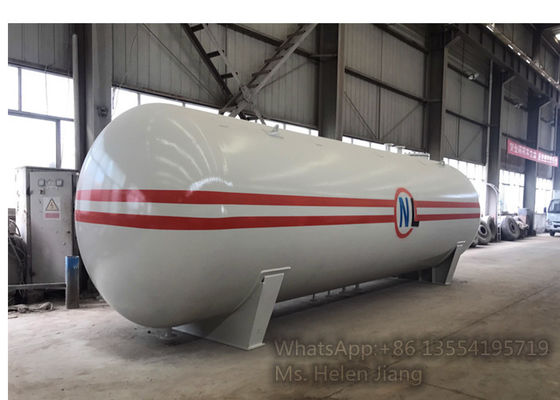

More pictures of different sizes of LPG storage tank we produced:
Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;
-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;
-- Design pressure of Underground LPG tank: 1.77Mpa;
-- hydraulic testing pressure:2.21 Mpa;
-- Corrosion allowance: 1mm;
-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
