उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सामग्री: | कार्बन स्टील, Q345R, Q370R। Q420R | प्रोडक्ट का नाम: | HOWO एलपीजी डिस्पेंसर ट्रक। एलपीजी गैस टैंकर ट्रक |
|---|---|---|---|
| ड्राइव प्रकार: | 6X4 10 पहिए 10 पहिए | ड्राइव मॉडल: | बाएं हाथ ड्राइव, या दाएं हाथ ड्राइव |
| लोडिंग क्षमता: | 8 टन, 9 टन, 10 टन, 5टी, 6टी। 7टी, 8टी. 10टी | ट्रक ब्रांड: | सिनोट्रक/सिनोट्रक होमन, शैकमैन, एफएडब्ल्यू, फोटॉन, जेएसी |
| टक प्रकार: | एलपीजी बोबटेल, एलपीजी रिफिलिंग ट्रक, एलपीजी टैंक ट्रक | अन्य उपकरण: | पंप, मोटर, फ्लो मीटर आदि के साथ। |
| स्थिति: | सिनोट्रुक HOWO ब्रांड, बिल्कुल नया ट्रक | ||
| प्रमुखता देना: | 371HP LPG Gas Tanker Truck,6X4 LPG Gas Tanker Truck,20cbm Bobtail Tanker Truck |
||

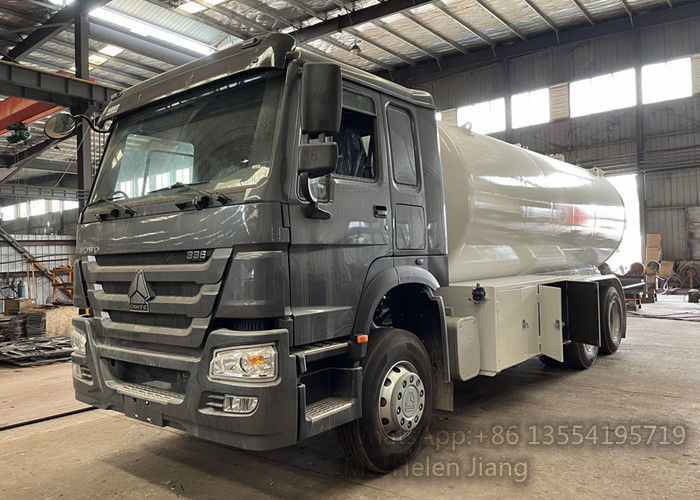

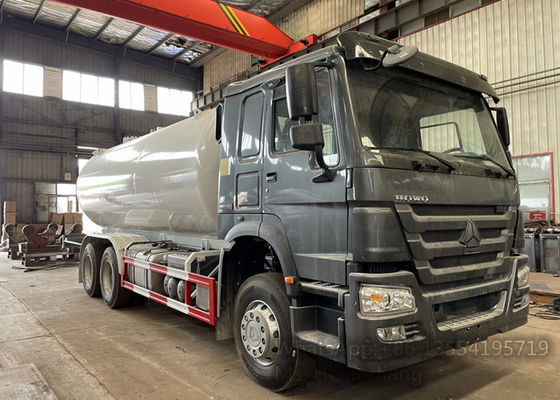

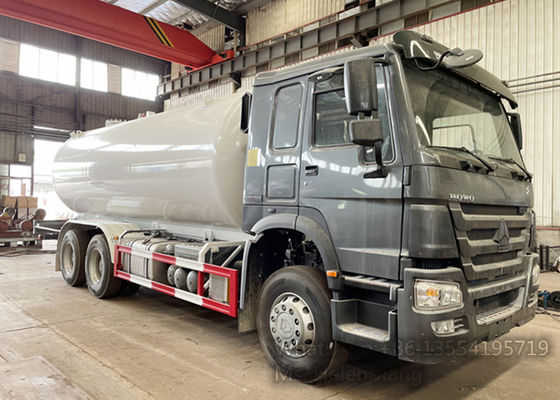

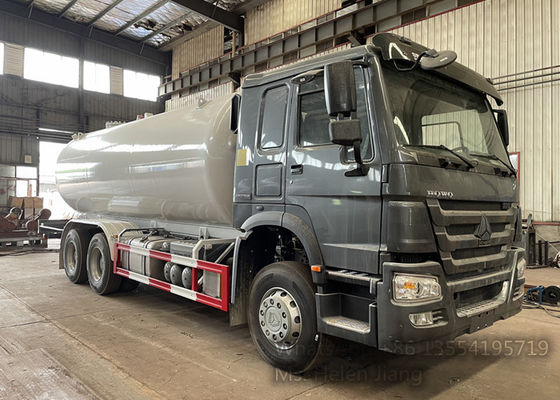

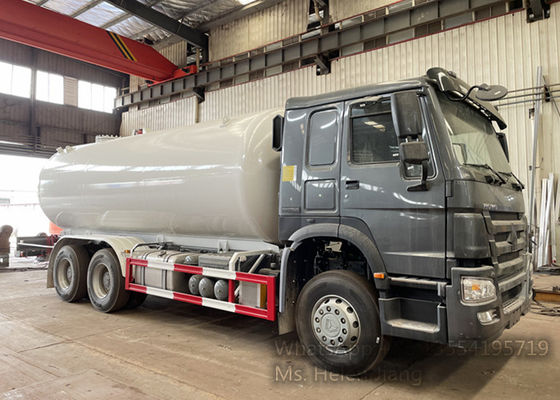

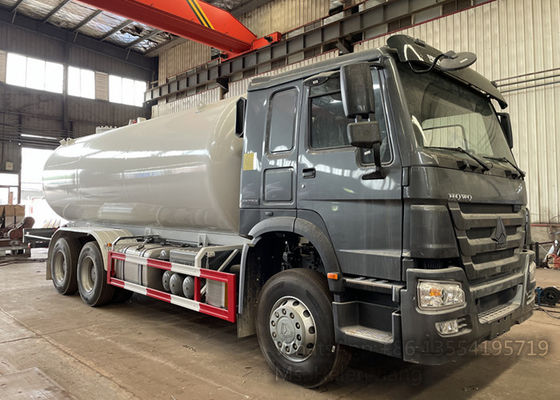

Sinotruck HOWO 6x4 371hp 20000L 10tons 20cbm LPG Gas Tanker Truck LPG Tank refilling Bobtail
Product Description
1-- Truck Brand of 10tons LPG Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
2-- Tank Size of 10tons LPG Bobtail : 20,000liters,20000L,20cbm,24000liters 24000L,24cbm,15000 Liters,15000L,15cbm,
3-- Function of 10tons LPG Bobtail: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
4-- Refiling System of 10tons LPG Bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel
5-- Truck Spec of 10tons LPG Bobtail : wechai Engine 290HP, HW19710 Gearbox 10 Forward & 2 Revers, 12R22.5 Tires
product Specification
| Item No. | Parameters |
| Overall Dimension | 10590x2495x3350 mm |
| Driving Model | Left hand drive |
| Gross Vehicle Weight | 25000 kg |
| Curb Weight | 14000kg |
| Payload | 10000kg(10Ton) |
| Wheel Base | 4600+1350 mm |
| Front/rear Tread | 2022/1830 mm |
| Approach/Departure Angle | 16/12 degree |
| Front Axle | 7000kg |
| Rear Axle | 18000 kg*2 |
| Engine | WD615.69,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
| Engine horsepower | 336HP EUROIII |
| Displacement | 9760mL (Diesel) |
| Max Driving Speed | 95 km/h |
| Gearbox | HW19710 |
| Cabin | Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner |
| Tire | 12R22.5 (11 pieces) |
| LPG tank | |
| Volume: | 20cbm |
| Tank material: | Q345R |
| Tank diameter: | 2000mm |
| Tank thickness: | 10mm |
| End plate | 12mm |
| Tank length: | 6090mm |
| Gas phase | DN50 |
| Liquid Phase | DN80 |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Accessory | |
| Level Gauge | Manual rotation type,at the rear of tank |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher | 2 |
| Exhaust shaft | At the front of truck for safety |

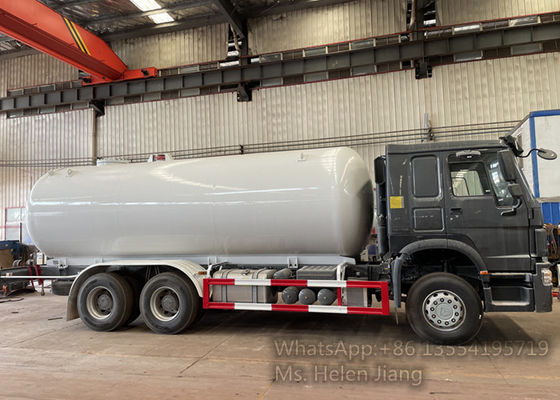

Sinotruck HOWO 6x4 371hp 20000L 10tons 20cbm LPG Gas Tanker Truck LPG Tank refilling Bobtail
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
