| पिक्सेल पिच (मिमी): | 4 मिमी, 5 मिमी, 6 मिमी, 8 मिमी; पी4 पी5 पी6 पी8 | स्क्रीन का साईज़: | 4㎡,5㎡,6㎡,7㎡,8㎡,9㎡,10㎡,12㎡ चेसिस आकार के अनुसार |
|---|---|---|---|
| नियंत्रण विधा: | वीजीए सिंक्रोनस | प्रकार: | एक तरफ की स्क्रीन, दो तरफ की स्क्रीन, तीन तरफ की स्क्रीन |
| चित्र ट्यूब चिप रंग: | पूर्ण रंग और मोनोक्रोम | ड्राइव मॉडल: | 4x2/6 पहिए/4*2 |
| व्हीलबेस (मिमी): | 2300 मिमी 2800 मिमी 3300 मिमी 3360 मिमी 3400 मिमी 3800 मिमी 4500 मिमी 4700 मिमी 5600 मिमी | रंग: | सफ़ेद; नीला; हरा; पीला; स्वनिर्धारित |
| प्रमुखता देना: | P8 LED Advertising Truck,4X2 LED Advertising Truck,SINOTRUK HOWO Digital Mobile Advertising Truck |
||
SINOTRUK HOWO 4X2 light truck P4 P5 P6 P8 LED Advertising Truck
Description
1. Purpose: For mobile advertising, products promotion, branding, concerts and so on. It can on-site display, exchange, interaction, wide publicity and gain great effective of advertising.
2. Main parts: LED screen, Generator set, Computer, Control system etc.
3. Optional items: Mobile stage, Scrolling light box.
4. LED screen: SMD P4 P5 P6 P8 for optional.
5. Generator brand: China famous brand and Internation brand for optional
Specification
| Classification | Item | Unit | Parameter |
| Vehicle | Vehicle model | HOWO LED Advertising Truck CLW5040 | |
| Manufacturer | ChengLi Special Automobile Co.,Ltd | ||
| Overall dimensions | mm | 5995×2030×3050 | |
| Curb weight | kg | 4300 | |
| Traction system | 4×2 | ||
| Max speed | km/h | 90 | |
| Chassis | Chassis model | ZZ1047 | |
| Manufacturer | SINOTRUK Jinan Commercial Vehicle Co., Ltd | ||
| Number of axles | 2 | ||
| Wheel base | mm | 3360 | |
| Tire specification | 7.00R16 | ||
| Number of tires | 6+1 spare | ||
| F/R track base | mm | 1605/1520 | |
| Engine | Engine model | 4DW93-84 | |
| Manufacturer | FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Factory | ||
| Fuel type | diesel | ||
| Power | kw | 66 | |
| Engine horse power | hp | 90 | |
| Displacement | ml | 2540 | |
| Emission standard | Euro III | ||
| Driver's cab | Brand | SINOTRUK HOWO | |
| Model | Flat head, single row | ||
| Allowable seats | 3 | ||
| Steering | LHD or RHD | ||
| Transmission | 5-speed with over drive | ||
| Operation control system | Electrically hydraulic control | ||
| Air-conditioning | As your option |
| Standard equipment | 1> One side waterproof P8 full color led screen | ||
| 2> The other side advertising light box with subtitle | |||
| 3> The rear side monochrome screen | |||
| 4> 5cm composite steel box, wooden floor; | |||
| 5> Inside and outside the electric distribution box; | |||
| 6> Loop ventilation cooling system; | |||
| 7> Ouma silent diesel generator; | |||
| 8> One industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console. | |||

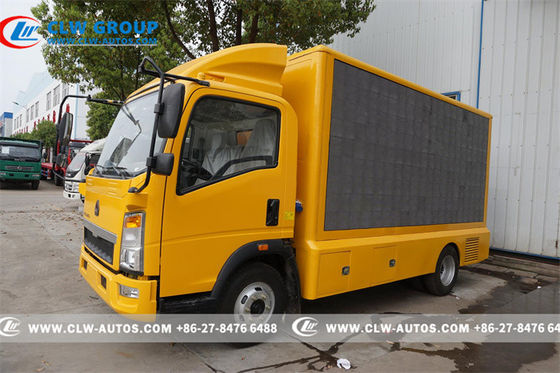

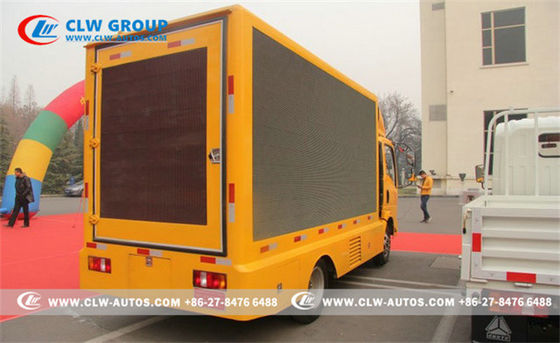

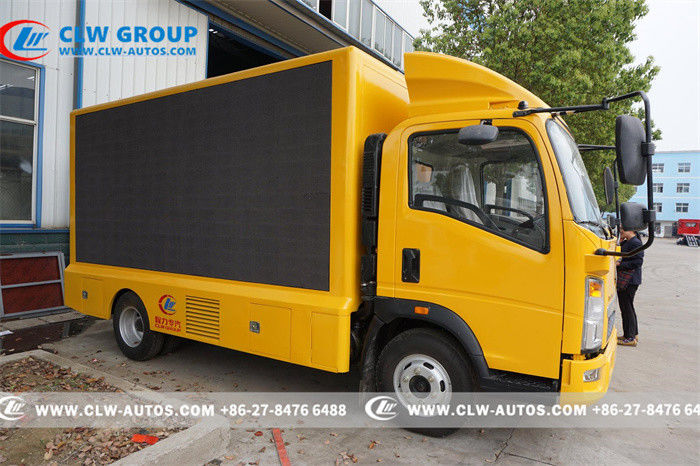

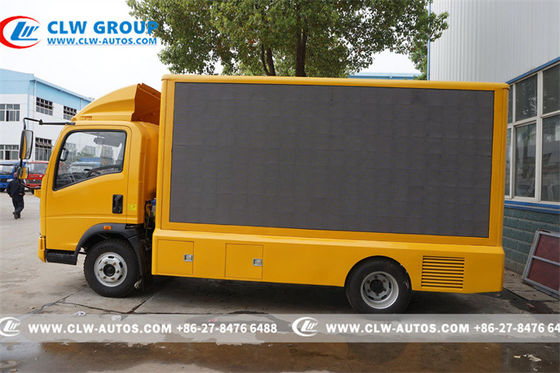

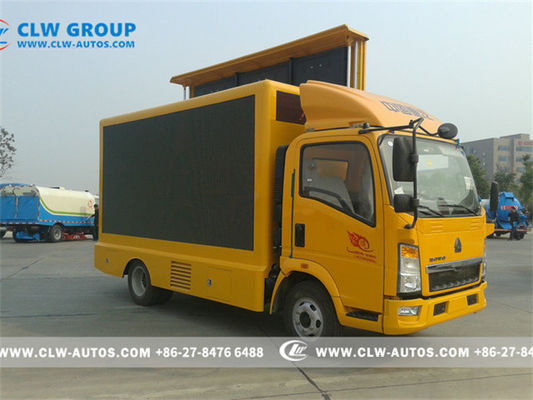

Reference photos
Product diagram
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of Mobile Billboard LED Advertising Truck products I can order from your company?
A: We can supply all kinds of Mobile Billboard LED Advertising Truck, Mobile stage truck, Mobile stage truck with LED screen, LED advertising trailer, Mobile stage trailer, Mobile stage trailer with LED screen and LED bus etc.
Q2: What is your production standard of Mobile Billboard LED Advertising Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU LED screen billboard truck is produced as per China GB local standard, but the LED screen and other mian products have CE certificate; We can't export CBU Mobile Advertisement Truck to those countries, but we can export super structure to those market, we exported 30 units LED truck super structure to USA market at the beginning of 2018.
Q3: Have you supplied to Mobile Billboard LED Advertising Truck any renowned companies?
A: Our group company is a regular strategic partner of some big advertising company and mobile cellphone company. We have supplied many different type Mobile Advertisement Truck for them with different chassis brand. Eg: China biggest cellphone company VIVO and OPPO group is our customer and they already purchased more 300 units LED truck from us in the past 3 years.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
