उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| अभिकर्मक कोड: | कुल मानक | डिस्चार्ज वाल्व का प्रकार: | एपीआई या फ़्रेंच शैली |
|---|---|---|---|
| डिब्बे की संख्या: | 2 या 3 या 4 या 5 या 6 या 7 या 8 | डिस्चार्ज वाल्व का आकार: | 3 इंच या 4 इंच |
| एक्सल की संख्या: | 2 या 3 या 4 | एक्सल ब्रांड: | बीपीडब्ल्यू या फूवा या एचजे |
| टायर का ब्रांड: | त्रिकोण या दोहरा सिक्का | टायर का आकार: | 12आर22.5 या 315/80आर22.5 या 385/60आर22.5 |
| वायु चालित शट-ऑफ वाल्व: | हाँ | पीछे की सीढ़ी: | हाँ |
| शीर्ष सुरक्षा रेल: | हाँ | स्तर नापने के लिए गेज: | वैकल्पिक |
| चोरी रोधी ताला: | वैकल्पिक | अतिरिक्त ईंधन टैंकर: | 500 लीटर या 1000 लीटर वैकल्पिक हैं |
| अतिरिक्त टायर रैक: | हाँ | ||
| प्रमुखता देना: | HCl Chemical Liquid Tanker Semi Trailer,Anti Corrosion Tanker Semi Trailer,2 Axle Chemical Tanker Trailer |
||

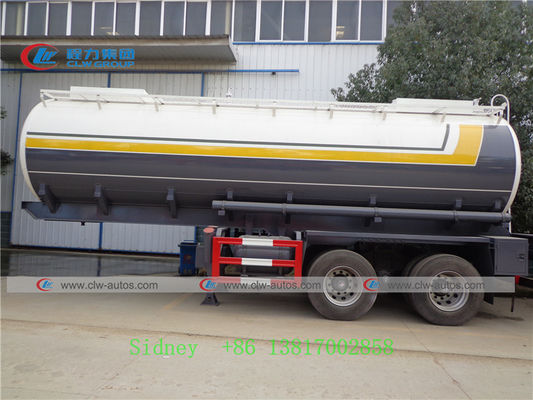

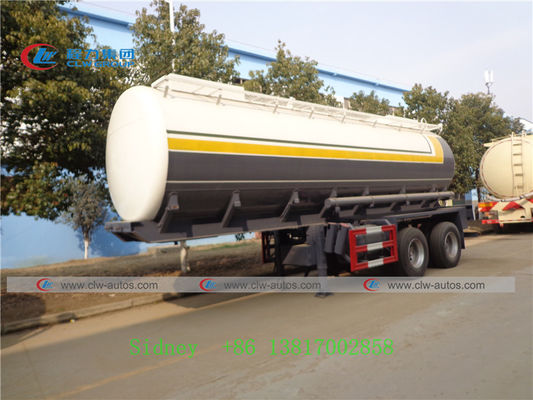

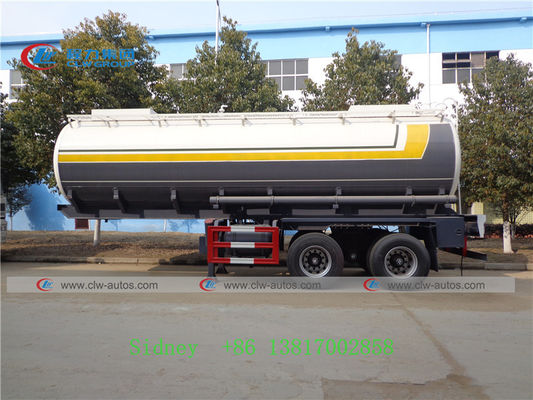

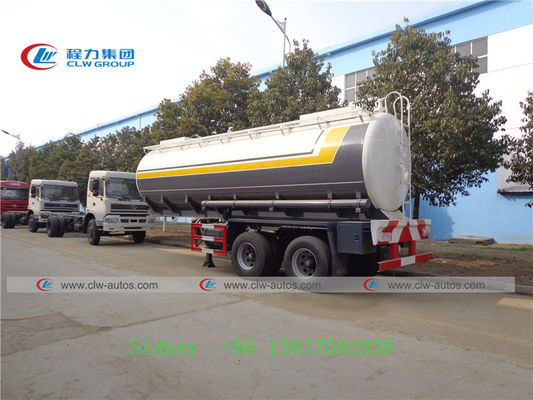

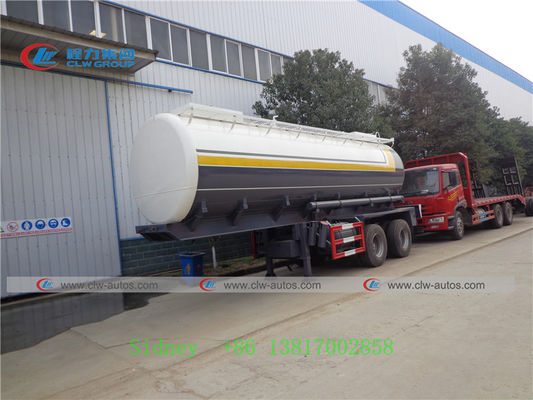

2 Axle Anti Corrosion Chemical Liquid Tanker Semi Trailer HCl Chemical Semi Trailer for Transportation
Description
1- Oil Tanker Trailers ,also called oil tanker semitrailer,fuel tank semitrailer,oil tanker trailer,
oil semitrailer,semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport/haulage oil,eatable oil,palm oil,maripa oil,gasoline,diesel,kerosene and so on.
2- Oil Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
3-- Oil Tanker Trailers is optional for air bag suspension,front axle lifting.
4- Nice shape and rational structure.
5- High class running system and tank material.
6-- high-intensity kingpin and landing legs.
7-- top gemany brand BPW axle or Chinese brand FUWA axles.
8-- Durable and long term service life.
Specification
| Capacity (CBM) | 18CBM 20CBM 22CBM 24CBM 25CBM 26CBM 28CBM 30CBM |
| Chassis Frame | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. |
| Overall dimension | 8500*2500*3500mm |
| Tank size | 8300*2450*1650mm |
| Suspension | Mechanical suspension |
| King Pin | JOST/FUWA |
| Landing Leg | JOST/FUWA |
| Axle Brand | FUWA/BPW |
| Tires | 11R22.5--- 9 nos (8+1 spare) |
| Brake System | Dual Lines Braking System With WABCO RE 6 relay valve; T30/30 Spring brake chamber; 40L air tanks |
| Electrical | 24V, 7 core socket |
| Tank | V shape with dished ends |
| Compartment | Single compartment |
| Filling Medium | 98% H2SO4( Sulfuric Acid) |
| Connections | Customized design |
| Accessories | Standard configure |

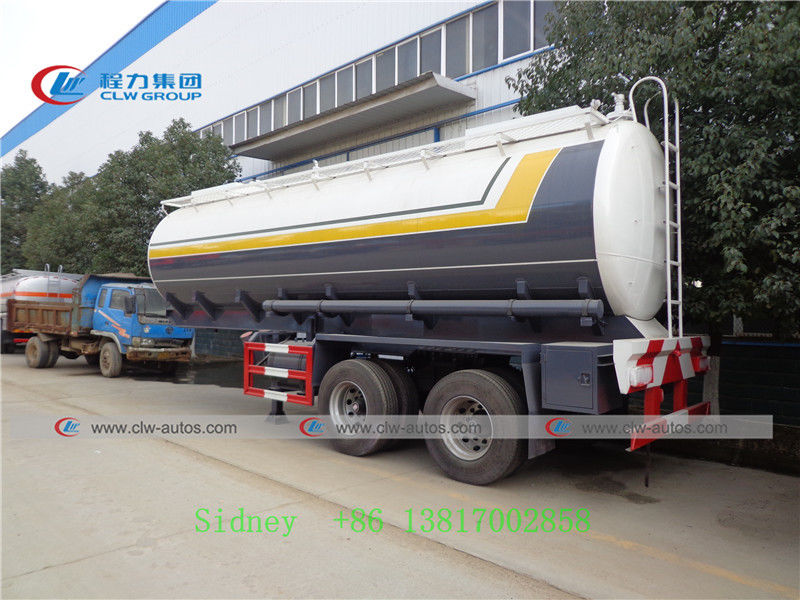

Reference Photos
Parts of Chemical tank/trailer
Factory Overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of fuel tank trailer I can order from your company?
A: We can supply various sizes of fuel tank trailer from30-50tons,etc.
Q2: What's the material of your fuel tanker?
A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.
Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
