उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सामग्री: | Q235 कार्बन स्टील | मोटाई: | 4 मिमी |
|---|---|---|---|
| ईंधन: | डीज़ल | Driving Type: | 4*2, left/right hand driving |
| Pump: | China Famous Brand/International brand | सक्शन ऊंचाई: | 7 मीटर |
| Water Canon Range: | 30 meters | छिड़काव की चौड़ाई: | 14 मीटर |
| ऑपरेटिंग वीडियो: | हाँ | मैनुअल का प्रयोग करें: | हाँ |
| Front spray and rear spray: | yes | गारंटी: | एक वर्ष |
| प्रतीक चिन्ह: | ग्राहक के अनुरोध के अनुसार | ||
| प्रमुखता देना: | 10T Water Sprinkler Truck,Dongfeng Water Sprinkler Truck,10T Water Bowser Truck |
||
Dongfeng 10tons Water Bowser Truck Water Sprinkler Tank Truck for sale
Product Description
Water bowser truck is suitable for washing all kinds of roads, trees, green belts, lawns, roads, factories and mines, and high-altitude buildings. It has the functions of water spraying, dust pressing, high and low spraying, pesticide spraying, guardrail washing, etc. It also has the functions of water transportation, drainage, and emergency fire fighting.
1.The truck can be equipped with advanced facilities such as medicine tray, medicine pump, anti-corrosion and rust prevention in the tank, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves, etc. to meet the needs of different users.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :＞14M
4. Rear working platform with water cannon range of portable water truck :30 meters
5. Reliable and high quality water pump
Specifications of dongfeng 10tons water bowser truck
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | Dongfeng | |
| Curb weight(kg) | 5990 kg | ||
| Loading weight(kg) | 10000 kg | ||
| Gross weight(kg) | 15990 kg | ||
| Wheelbase(mm) | 3950 mm | ||
| Dimensions(mm) | 7500*2480*3150 mm | ||
| Front Loading Capacity (Ton) | 3600 | ||
| Rear Loading Capacity (Ton) | 9000 | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 10.00-20 | ||
| Transmission | Manual type, 8 Forwards and 1 reverse | ||
| Cabin | Single row seat, Tiltable. It can accommodate two people. With air conditioner. | ||
| Engine | Brand | CUMMINS | |
| Fuel type | Diesel | ||
| Power(kw) | 125 kw | ||
| Horsepower(HP) | 170 HP | ||
| Cylinder number | 4 | ||
| Emission standard | Euro 3 | ||
| Upper | |||
| Water tank | Capacity(cbm/tons) | 10 | |
| Tank Dimension(mm) | 4200*200*1500 | ||
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 4 | ||
| Water pump | China local brand | ||
| Suction Height | 7 meters | ||
| Function | 1, Front Side Rear Sprinkling width≥ 14m | ||
| 2, Water cannon range≥ 28m | |||
| Remarks | 1. AM/FM radio | ||
| 2. 2pcs water hose. | |||
| 3. Color is optional | |||

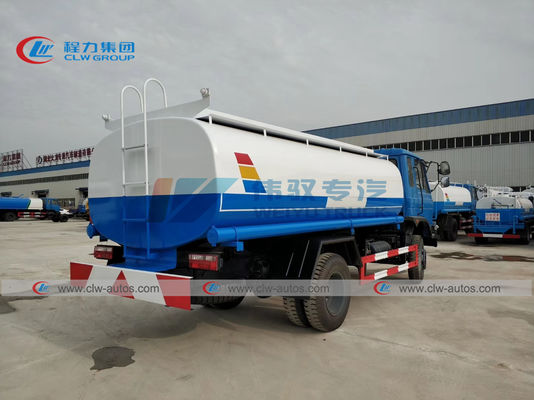

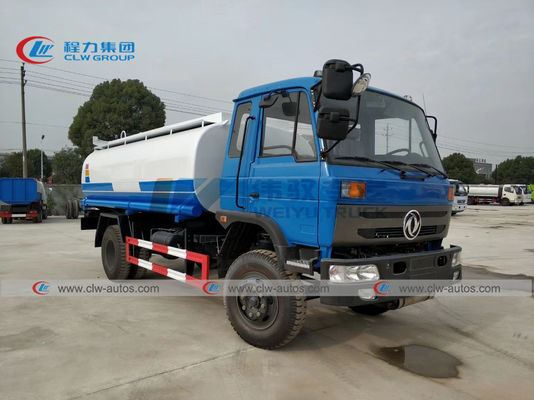

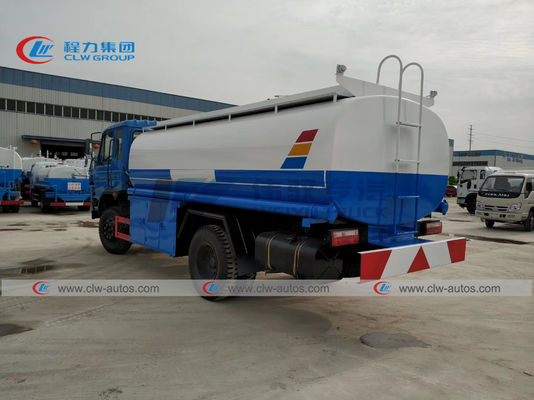

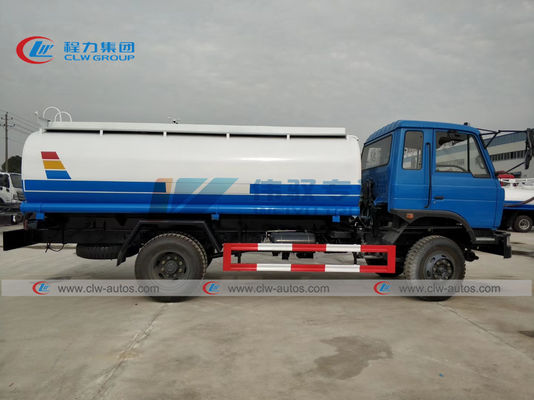

Reference photos for dongfeng water bowser truck
Water Truck Diagram
Working Show
Truck Details
Water bowser truck production line:
After Sale Service :
We will shoot detailed operation videos for customers on how to use the sprinkler and the precautions for car maintenance. The truck is equipped with some basic wearing parts, which is convenient for later use and replacement. We Provide a one-year warranty period, and provide factory-price accessories for life (the freight is paid by the customer).
