| Truck brand: | Dongfeng,Shacman,Sinotruk howo,CAMC,FAW,ISUZU underlift tow truck | Other name: | Popular Wrecker Towing Truck, Rescue Road Wrecker Truck Tow Truck Wrecker, 25T Tow Truck Under Lift Wrecker Truck, tow truck wrecker truck,Newest Breakdown Wrecker Truck |
|---|---|---|---|
| Towing capacity: | 3tons/3t/3000kg underlift tow truck | Type: | isuzu underlift tow truck |
| स्थिति: | नया | Driving type: | 4x2/6x2/6x4/8x4/8x6/4x4/6x6/etc, 4x2 LHD or RHD, LHD, LHD/RHD, left hand drive/right hand drive |
| गारंटी: | 12 महीने, 1 साल | प्रयोग: | सड़क सहायता बचाव |
| Engine: | Diesel engine 98hp underlift tow truck | Color: | Optional, Customers', Silvery Grey, White / Green / Red, White or customer's requirements |
| व्हीलबेस: | 3360 | Winch: | 4 tons underlift tow truck |
| प्रमुखता देना: | Underlift Wrecker Tow Truck,98HP Wrecker Tow Truck,ISUZU 100P Recovery Tow Truck |
||
--underlift Tow Truck(also called underlift road wrecker,underlift wrecker truck,underlift towing truck,underlift recovery truck,towing service truck,breakdown truck) is used for moving disable,improperly parked or breakdown vehicles or car.
-- Tow truck can be divided into various types as follows,
1) According to the categories, the tow trucks are mainly divided into: flatbed tow truck,wrecker tow truck,heavy duty tow truck
2) According to driving model:4X2,4X4,6X4,6X6,8X4,10X4 underlift tow truck;
3) According to towing capacity,there are 3tons,4tons,6tons,8tons,16tons,25tons,30tons,50tons and 60tons nderlift tow truck;
4) According to truck chassis brand,there are dongfeng,faw,isuzu,sinotruk,iveco,shacman,camc nderlift tow truck
--Relable ISUZU truck chassis;
--Adopting American wrecker design and manufacturing technology.
--Key components using the finite element stress analysis (CAE technology)
--Adopting high quality high-strength steel for important components
--Hydraulic technology adopts two filtration systems to ensure hydraulic clean.
--The key hydraulic lines seals imported from Germany.
--All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting), increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.

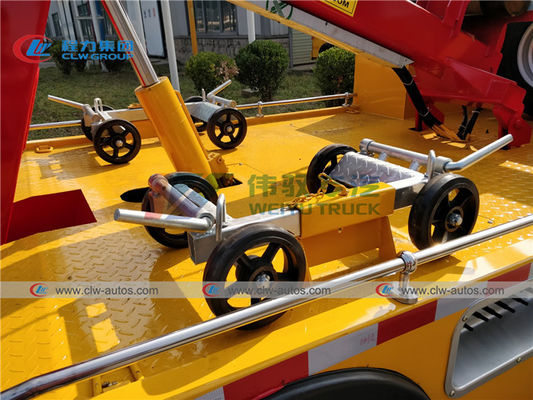

--Equipped with various fork lifts (including leaf spring forks).
--High and low fork combined with various fork lifts.
--Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.
--Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.
--Equipped with trailer towing disk, remote control is optional.
Technical Spec. of ISUZU 3tons underlift tow truck
|
ISUZU 3000kg underlift tow truck
|
|||
|
Vehicle brand
|
CLW
|
Chassis brand
|
ISUZU |
|
Overall dimensions
|
5500×2050×2500(mm)
|
Wheel base
|
3360(mm)
|
|
Gross weight
|
4495(Kg)
|
Cube weight
|
4100(Kg)
|
|
Front/Rear axles loading capacity
|
1855/2640
|
Tire
|
7.00R16LT 8PR/6+1PCS
|
|
Gearbox
|
5-speed forward and reverse gear
|
Steering
|
power steering, hydraulic steering with power assistance
|
|
Engine power
|
139(kw)
|
Emission standard
|
Euro III
|
|
Max lifting capacity
|
4000(kg)
|
Max under-pulling capacity
|
4000(kg)
|
|
Winch rating pulling capacity
|
2*2000(kg)
|
Length of steel
|
25(m)
|
|
MOQ
|
1 set
|
||
