उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| टैंक का उद्देश्य: | गैस स्टेशन के लिए तरल प्रोपेन/अमोनिया/ब्यूटेन गैस का भंडारण | टैंकर सामग्री: | Q345R, 16MnDR, Q370R, SA516Gr70, SA517, आदि। |
|---|---|---|---|
| कुल आकार (लंबाई x चौड़ाई x ऊंचाई): | 8342*2728*3318(मिमी) | टैंक व्यास: | DN2700mm, आदि। |
| टैंक की मोटाई: | शैल 14 मिमी, सिर 16 मिमी। | टैंक वॉल्यूम विकल्प: | 5cbm-200cbm; आमतौर पर 50m³,60m³,80m³,100m³,120m³, आदि |
| टैंक क्षमता विकल्प: | 2टन-100टन; आमतौर पर 20 टन, 30 टन, 40 टन, 50 टन, 60 टन, आदि। | डिजाइन दबाव: | 1.71एमपीए/17.1बार, 1.77एमपीए/17.7बार, 1.61एमपीए/16.1बार |
| डिजाइन तापमान: | -20 ℃ ~ 50 ℃ | संक्षारण भत्ता: | 1 मिमी |
| रंग: | ग्राहक के अनुरोध के अनुसार | जीवनभर: | 15 साल |
| प्रमुखता देना: | Liquid Propane Gas Storage Tank,50cbm Gas Storage Tank,50cbm lpg bulk storage tank |
||
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg gas plant tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for lpg gas plant equipments as follows,
lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
Product Specification
| Item | Name | Unit | Parameter | |
| 1 | Product model | / | LPG storage tank | |
| 2 | Vessel type | / | On the ground | |
| 3 | Tank Volume | m3 | 50 | |
| 4 | Filling medium | / | LPG / propane gas | |
| 5 | Filling coefficient | Kg/ m³ | 420 | |
| 6 | Tanker material | / | Q345R | |
| 7 | Overall dimension | mm | 9182*2728*3318 | |
| 8 | Tank inner diameter | mm | 2700 | |
9 |
Thickness | End plates | mm | 16 |
| Shell body | mm | 14 | ||
| 10 | Curb weight | kg | 10640 | |
| 11 | Filling medium weight | kg | 19950 | |
| 12 | Corrosion allowance | mm | 1 | |
| 13 | design pressure | Mpa | 1.71 | |
| 14 | Hydrostatic test pressure | MPa | 2.22 | |
| 15 | Designing temperature | °C | -19~50 | |
| 16 | Produce Manufacturing standards | / | GB150-20 | |
| 17 | Certification | / | ISO 9001-2015 | |
| Production process control | 1. Steel Plate Cutting &Rolling | |||
| 2. Tanker Body Welding | ||||
| 3. X-ray Welding Seam Detection | ||||
| 4. Whole Tanker Heat Treatment | ||||
| 5. Rust, Sand Blasting, Puttying | ||||
| 6. Water Pressure Test | ||||
| 7. Painting: primer, finish, lacquer | ||||

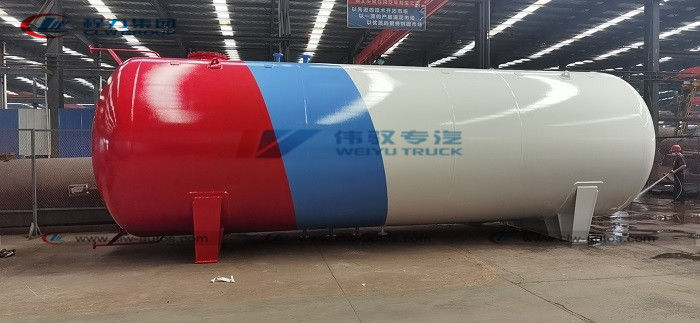

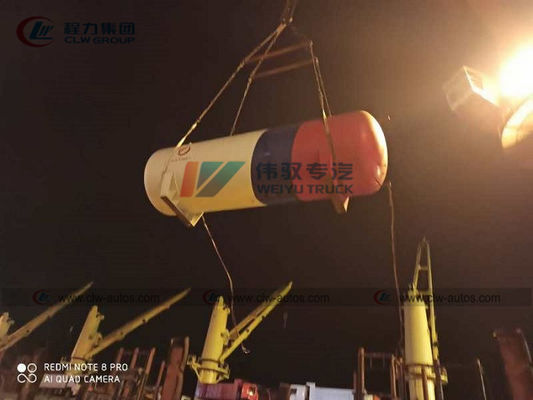

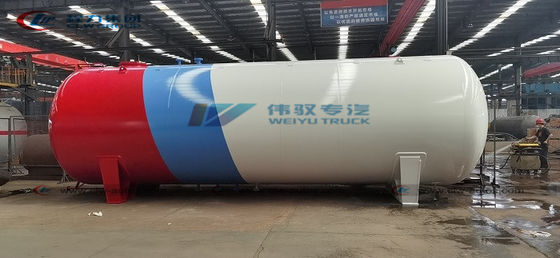

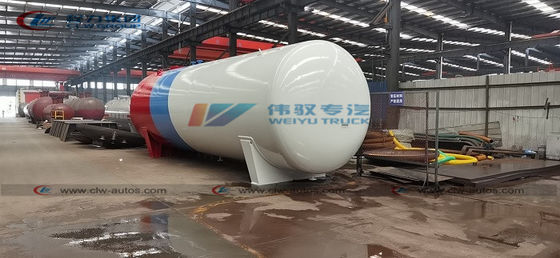

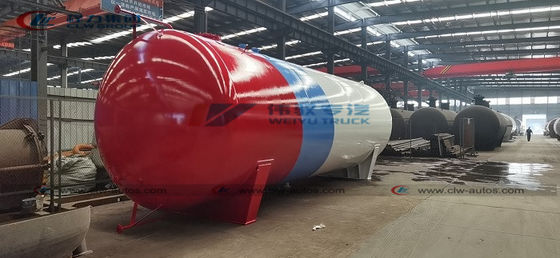

Reference Photos
We supply customized drawing for every storage tank
Structure Diagram of LPG Storage Tank
We supply package solution for lpg station building as follows
Production Process
Our Service
1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
