उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Truck brand: | ISUZU,HOWO,DONGFENG,FAW,SHACMAN bulk feed truck | Material: | carbon steel/aluminum alloy bulk feed trailer |
|---|---|---|---|
| Loading medium: | bulk feed,grain,powder and so on | Volume: | 20m3,20cbm |
| मोटाई: | 4 मिमी | रंग: | स्वनिर्धारित |
| प्रतीक चिन्ह: | आपके अनुरोध के अनुसार | Purpose: | chicken/duck/cow feed |
| प्रमुखता देना: | 20cbm Bulk Feed Truck,Dongfeng Bulk Feed Truck,20m3 Bulk Feed Truck |
||

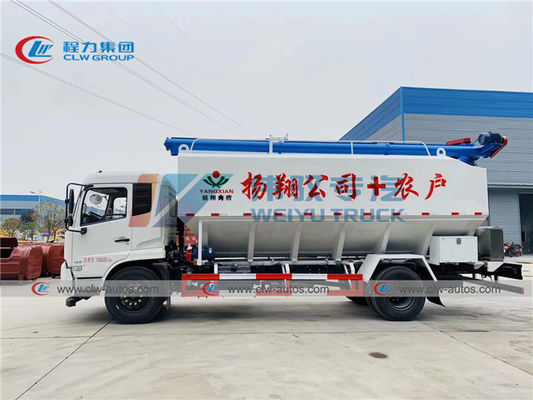

Dongfeng 20cbm Bulk Feed Truck for Chicken and Pig Feed with Electric Hydraulic Auger
The tank body is made of 4mm high-quality carbon steel plate, and the whole vehicle has 3 screw augers, driven by 3 5.5KW motors. The top screw auger is lifted by hydraulic control and can rotate 180° left and right.
The tank body is divided into three bins, which can independently control the discharge sequence and speed of each sub bin.
Description:
| Model of Cab | Flat Top,Row and a half |
| Driving Type | 4*2 |
| Wheel Base | 5000mm |
| Model of GearBox/Manufacturer | DF6S900/Dongfeng Automobile Gearbox Co., Ltd |
| Model of Engine/Manufacturer | ISB180 50/Dongfeng Cummins Engine Limited |
| Engine Capacity | 5900ML |
| Rated Power | 132(kW)/2500(r/min)/180hp |
| Max Maximum Torque | 700(N.m)/1500(r/min) |
| Tyre Size | 10.00R20 18PR |
| External Dimensions | 10890*2480*3900mm |
| Bulk Capacity | 32m³ |
| Number of Compartments | 3 |
| Engine Power/voltage | 22kW/380V |
| Max Transport Height | 7.9M |
| Max Transport Length | 4.6M |
| Rated Discharge Capacity | 450~600(kg/min) |
| Residual Rate | ≤0.22 |
| Turning Type | Electric |
| Others | ABB Motor,It could connect external electric power |

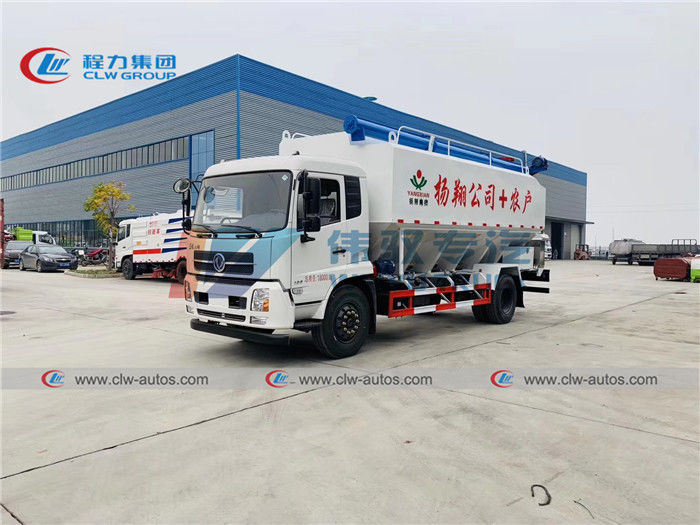

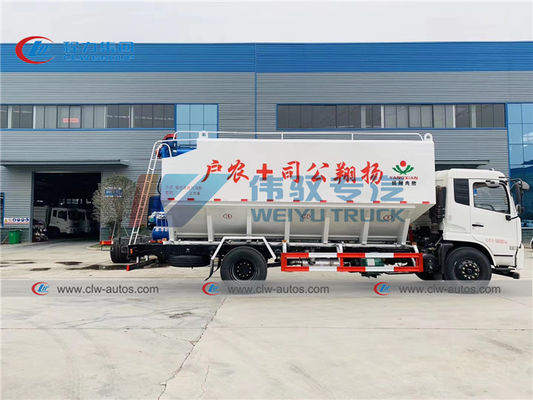

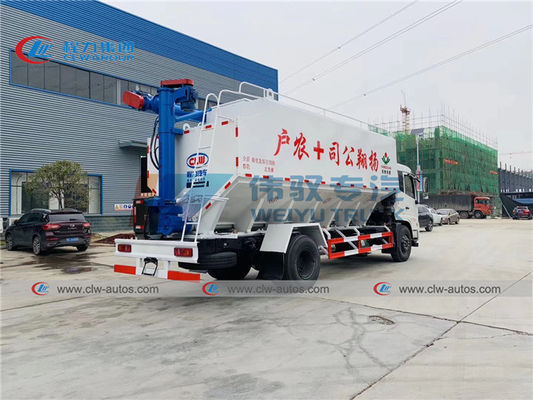

Bulk Feed truck reference photos
Working show
Bulk Feed Truck Diagram
Different Bulk Feed Truck for choice
